Zontes ZT125-Z2 User Manual

9-SURROUNDING COMPONENT 63
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1
1251100-102000
Non-standard bolt M6×16
（
304 stainless steel
）
6
2
1274100-018000
ZT250
－
S anti-hot plate sleeve muffler
4
3
1244100-037000 φ12×φ8.5×2.5 circle buffer glue 4
4
1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
2
5
1244100-052000
Buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
2
6
1224100-010000
ZT250
－
S swell nail
4
7
1221200-090000
KD150
－
Z2 middle of the lower shroud
1
8
ZT155
－
Z2 lower fairing left part
1
9
ZT155
－
Z2 lower right part of the fairing
1
10
1251300-063093
Plywood M6×11×15
（
color zinc
）
2

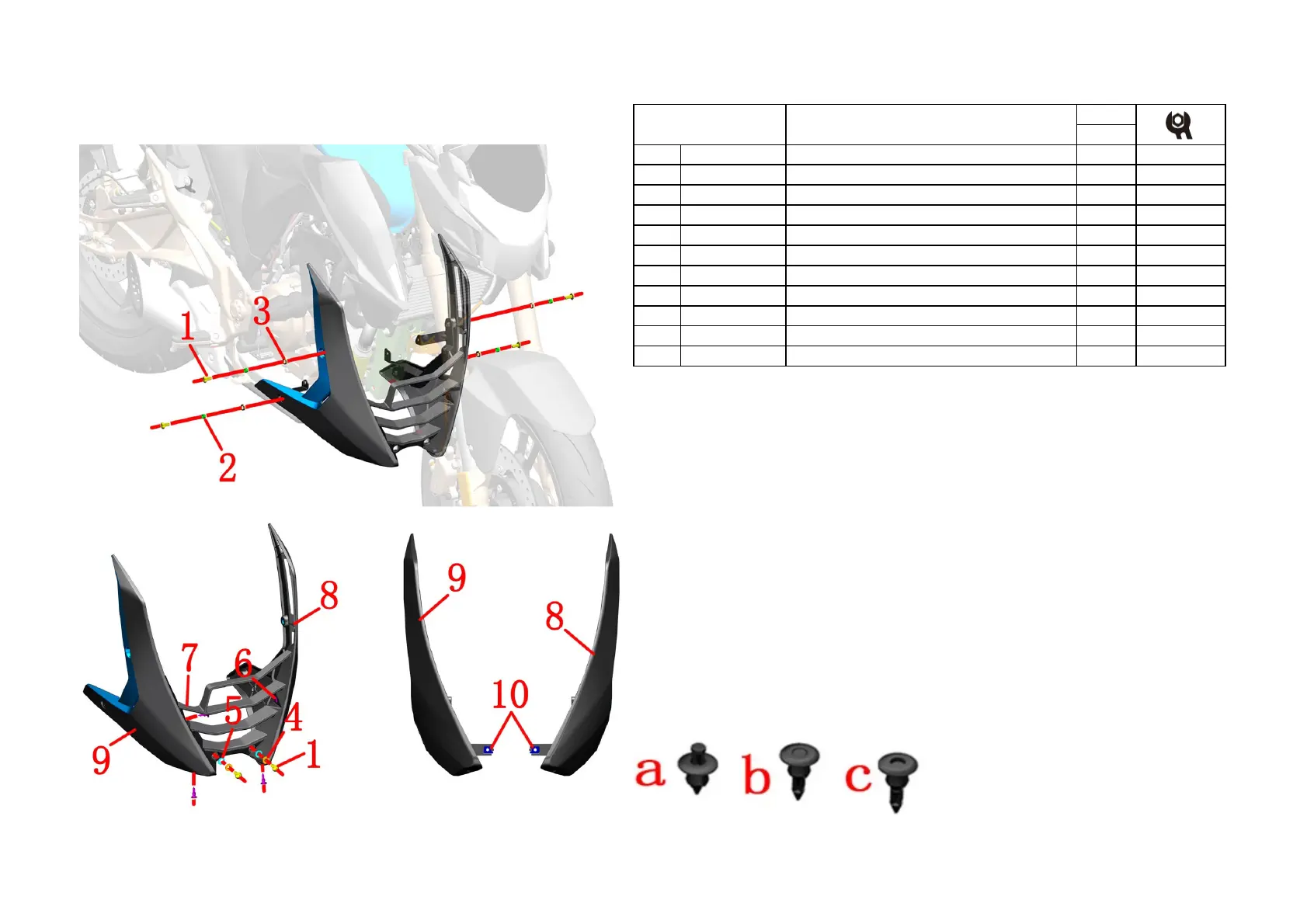

Fig.1 SURROUNDING
COMPONENT
Surrounding component
PROCEDURE:
●Surrounding components
Use 4# inner hexagon to remove the 4 bolts ⑴ that surround the component, remove the bushing ⑵, cushion
rubber ⑶
, then the surrounding component can be removed.
Use a 4# inner hexagon to remove the 2 bolts ⑴ on the middle part ⑺ of the air deflector, remove the bushing
⑷, cushion rubber ⑸, take out 4 expansion nails ⑹, and remove the middle part ⑺ of the air deflector.
Remove 2 pieces of splints ⑽ from the left part ⑻ of the air deflector and the right part ⑼ of the air deflector.
CAUTION:
●If you need to remove the surrounding bracket, please refer to the steps of "Frame & Engine Combination 2".
●The parts should be protected during the disassembly process.
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.
●Figure a is the unmounted state; Figure b is the assembled state; Figure c is the disassembled state.
