8-FUEL TANK COMPONENT 62
CHK
ADJ
NO. PART NO.
1
1240300-066000 KD250-J head cover pad 1
2
－
3 1240300-021000
－
6 pod glass strip (1.5m) 0.33 500mm
4
5
1250105-137093
GB5789M6×16
（
）
6
1050954-031000 T02 built-in fuel pump - ZT310T 1

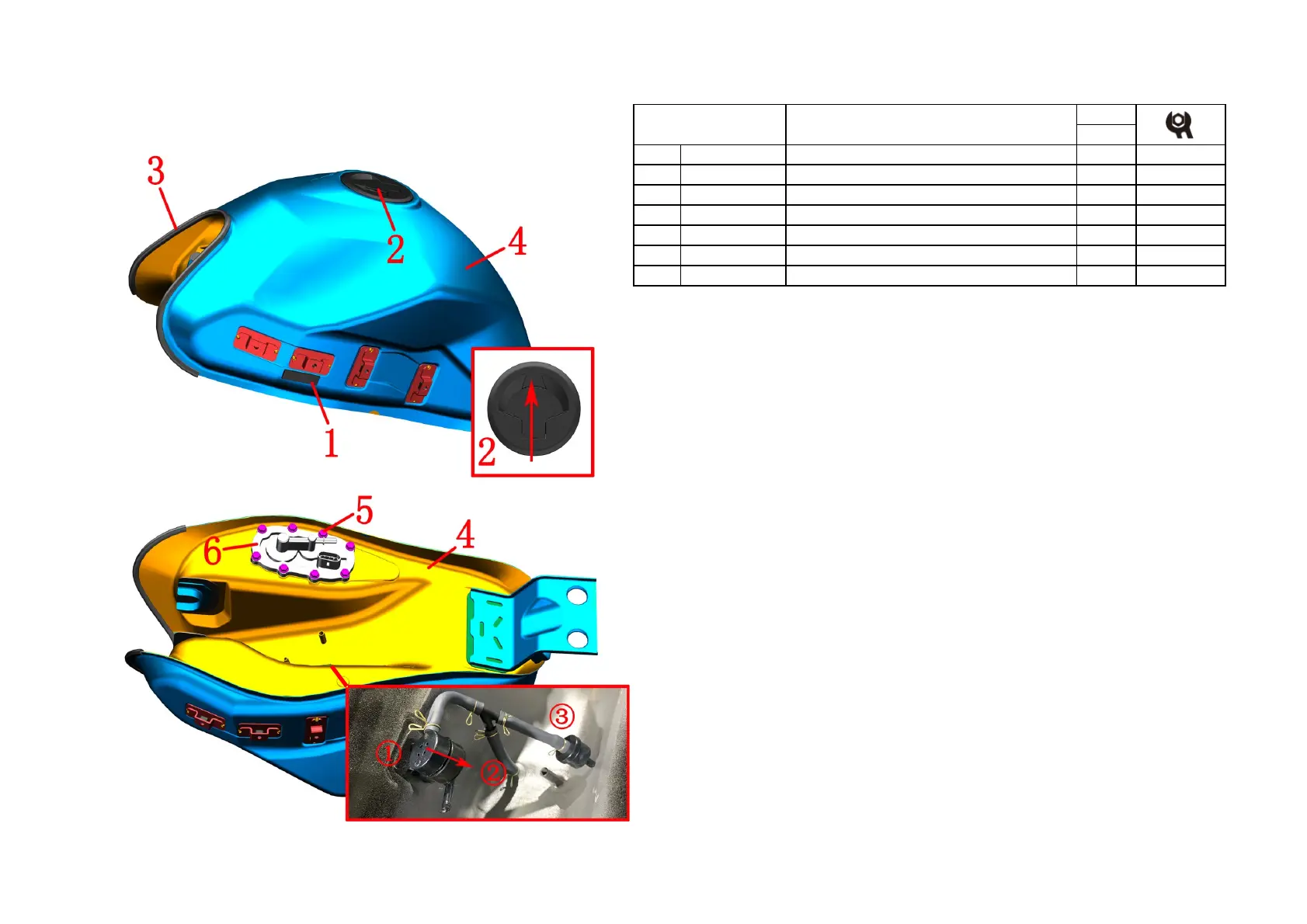

Fig.5 FUEL TANK
COMPONENT
PROCEDURE:
●Fuel tank sub-assembly
Remove the rubber strip ⑷ from the fuel tank ⑶、head cover pad⑴.
Use the key to remove the fuel tank cover lock (3).（The direction
indicated by the arrow is the front of the bike.
Do not install the fuel tank lock backwards, otherwise the fuel tank will be damaged.）
Turn the fuel tank over, remove the dump valve ① at the bottom in the direction of the arrow, and then remove
the fuel pipe ② connecting the fuel tank.The check valve ③ is not connected to any part of the fuel tank.
CAUTION:
●The parts should be protected during the disassembly process to prevent damage to the paint surface.
