4-REAR WHELL COMPONENT 22
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1252200-068000
KD150－U rear fork shaft
1
2 1251300-067000
ZT250－R rear wheel shaft nut
1 110±5N.m
3 Link chain (KMC520HD) 1
4 1251300-050000 ZT310-Z chain adjuster nut M10(304 stainless steel) 2
5 1251100-105000
ZT310-Z chain adjuster bolt M10×70 (304 stainless steel)
2
6 ZT125 aluminum alloy rear fork assembly 1
7 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 3
8 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 2
9 1244200-053000 KD150－U rear fork anti－wear block 1
10 1271200-062000 KD150－U rear fork wear block fixing bracket 1
11 1271200-088000 KD150－U rear fork bushing 2
12 1244200-079000 ZT310 single rocker arm Φ25×Φ32×4 oil seal 4
13 1250602-035000 HK2516 needle roller bearing 4
after-sales

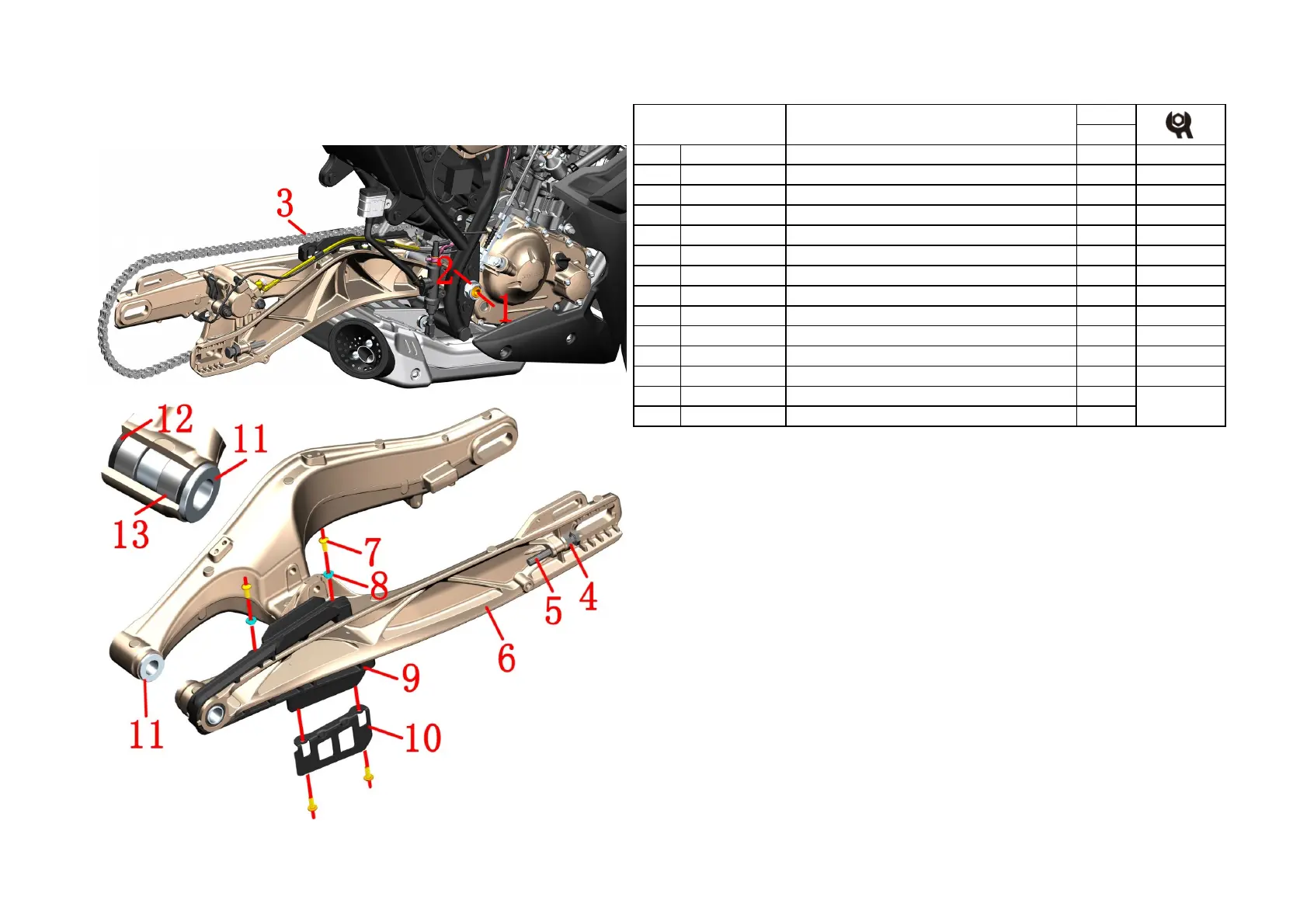

Fig.5 REAR WHELL
COMPONENT
Rear fork component
PROCEDURE:
●Rear fork assembly
Person 1 fastensthe head of the rear fork shaft⑴，person 2 remove the nut⑵ with a 30# sleeve.
Person 1 holds the rear fork assembly and the other person removes the rear fork shaft ⑴ with suitable tool and
then remove the rear fork assembly.
●Rear fork rear-resistant block
Remove the bolts⑺,flanging bushing⑻ with a 4# inner hexagon socket, then turn off the rear fork
assembly,using 4# inner hexagon socket remove 2pcs bolts⑺,take off the bracket⑽,and then remove the wear-
resistent block⑼.
Remove the chain adjuster bolt⑸ and nut⑷with the 17# open end wrench.
Put the rear fork bushing ⑾ inward and remove it.
Oil seal⑿ and needle bearing⒀ are used for interference compression.
Please ensure that you have the ability to disassemble and disassemble.
CAUTION:
●Be sure to fix up the motorcycle in the process of disassembly.
●Do not use a hammer to hit the rear fork shaft thread.
●
The rear disc brake caliper must not be higher than the disc brake oil cup, otherwise the brake will become soft
or faildue to air entering the pipeline. Because the brake line requires extremely high vacuum, it is necessary to
ensure sufficientcapacity for repair and disassembly.
