7-FRONT FORK COMPONENT 53
CHK
ADJ
NO. PART NO.
1 1134200-012000 ZT310－R direction pad assembly 2
2 1274200-018000 ZT310－R gasket of upper connecting board 4
3 1244200-008000 ZT310－R buffer rubber of upper connecting board 4
4 1134200-004000 ZT310－R upper connecting board(home－made) 1
5 1251700-065000 ZT310－R bushing φ10×φ12×41 2
6 1251300-057093 Non－standard nut M10×1.5(dacromet) 2 40N.m
PROCEDURE:
●Uplink plate and spacer assembly
In order to facilitate the direction of the block, the direction and the upper block should be assembled first to
prevent the block from rotating during the disassembly process. The direction should be wrapped with cotton or
other soft materials to prevent scratching the paint surface.
Remove the nut⑹ with a 14# sleeve and remove the gasket⑵, cushion rubber⑶, and bushing⑸.
Remove the upper plate⑷.
The spacer⑴, the upper clamp and the direction handle are disassembled.
CAUTION:
●Protect protective measures to prevent scratching the appearance of parts.
●
When reassembling, it is necessary to use the direction to ensure that the center and direction of the spacers on
both sides are coaxial with the center. First install 4 pieces of cushioning rubber into the upper plate and then
install the bushing separately. Make sure that the bushing is flush with the cushioning rubber, otherwise it should
be reassembled. When tightening the nut, ensure that the torque is 40N.m. Check the buffer for spillage and
reassemble if necessary.

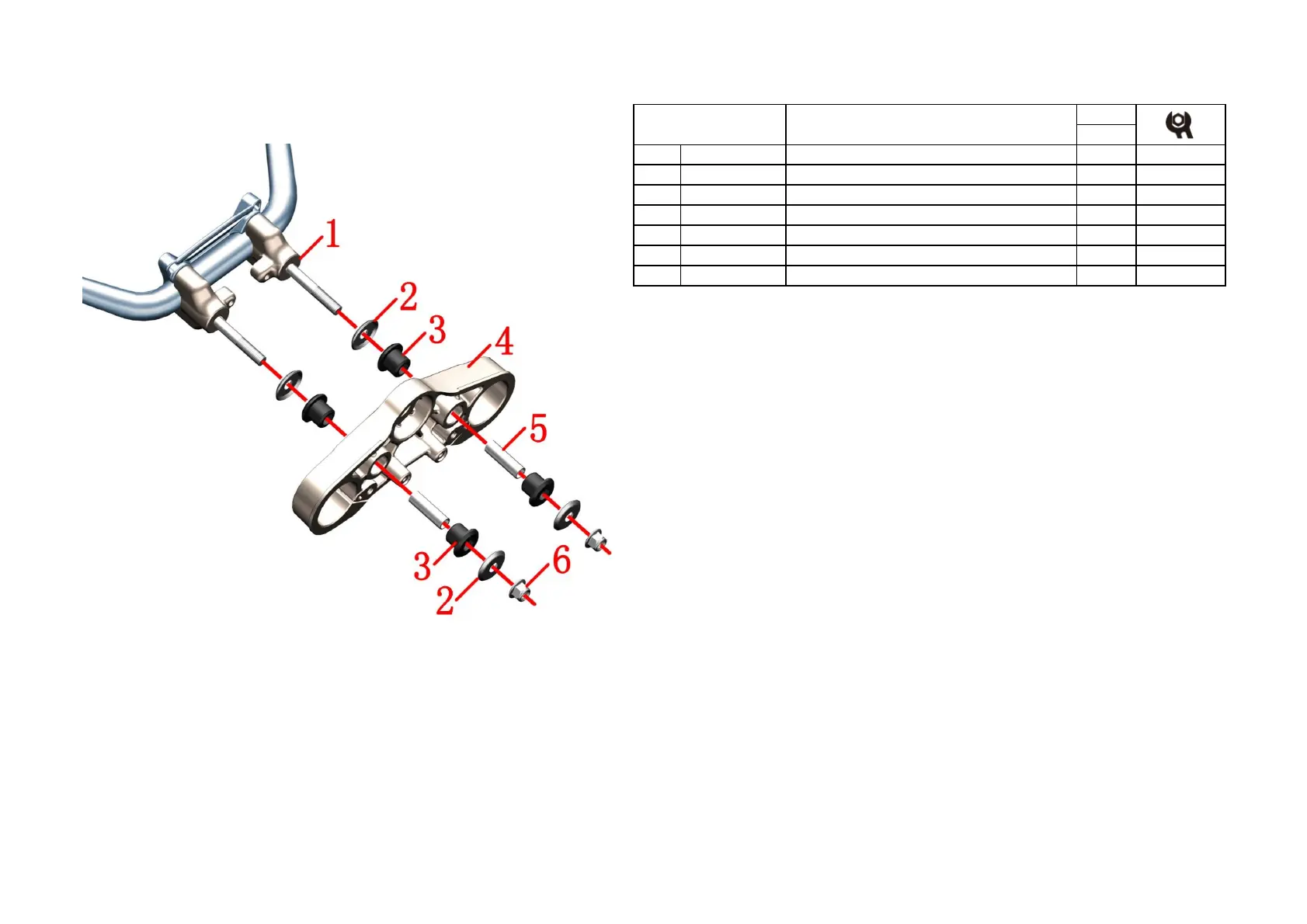

Fig.17 FRONT FORK
COMPONENT
Uplink plate, direction handle block component
