Zontes ZT125-Z2 User Manual

13-MUFFLER COMPONENT 75
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1 1251900-055093 KD150－U muffler suspension bushing 1
2 1241200-045000 KD150－U muffler suspension cushioning rubber 2
3 1274100-068095 ZT310 Muffler flanging bushing 1
4 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 3
5 1250501-010000 GB93φ6 spring pad 5
6 1032112-014000
KD150
－
U muffler tail cover rear
1
7
KD150
－
U muffler tail cover front
1
8
KD150
－
U muffler anti
－
scalding
1
9 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 2
10
KD150
－
U muffler
1
PROCEDURE:
●Muffler componet
Take off the bushing⑴and bushing⑶.
Take off 2pcs cushion rubbe⑵ from the muffler⑽.
Using 4# inner hexagon socket 2pcs bolts⑷ fix the muffler tail cover rear⑹,take off the spring pad⑸,then
remove the muffler tail cover rear⑹.
On the back of the muffler anti－scalding⑻ using 4# inner hexagon socket remove the bolt⑼ fix the muffler
tail cover front⑺,take off the spring pad⑸.
Grasp the muffler tail cover⑺ then using 4# inner hexagon socket remove the bolt⑷,take off the spring pad
⑸.Then take off the muffler tail cover⑺.
Hold the muffler anti－scalding⑻ by one hand,another hand using 4# inner hexagon sockett remove the bolt
⑼,take off the spring pad⑸,then remove the muffler anti－scalding⑻.
CAUTION:
●Prevent foreign matter from entering the interior of the muffler.

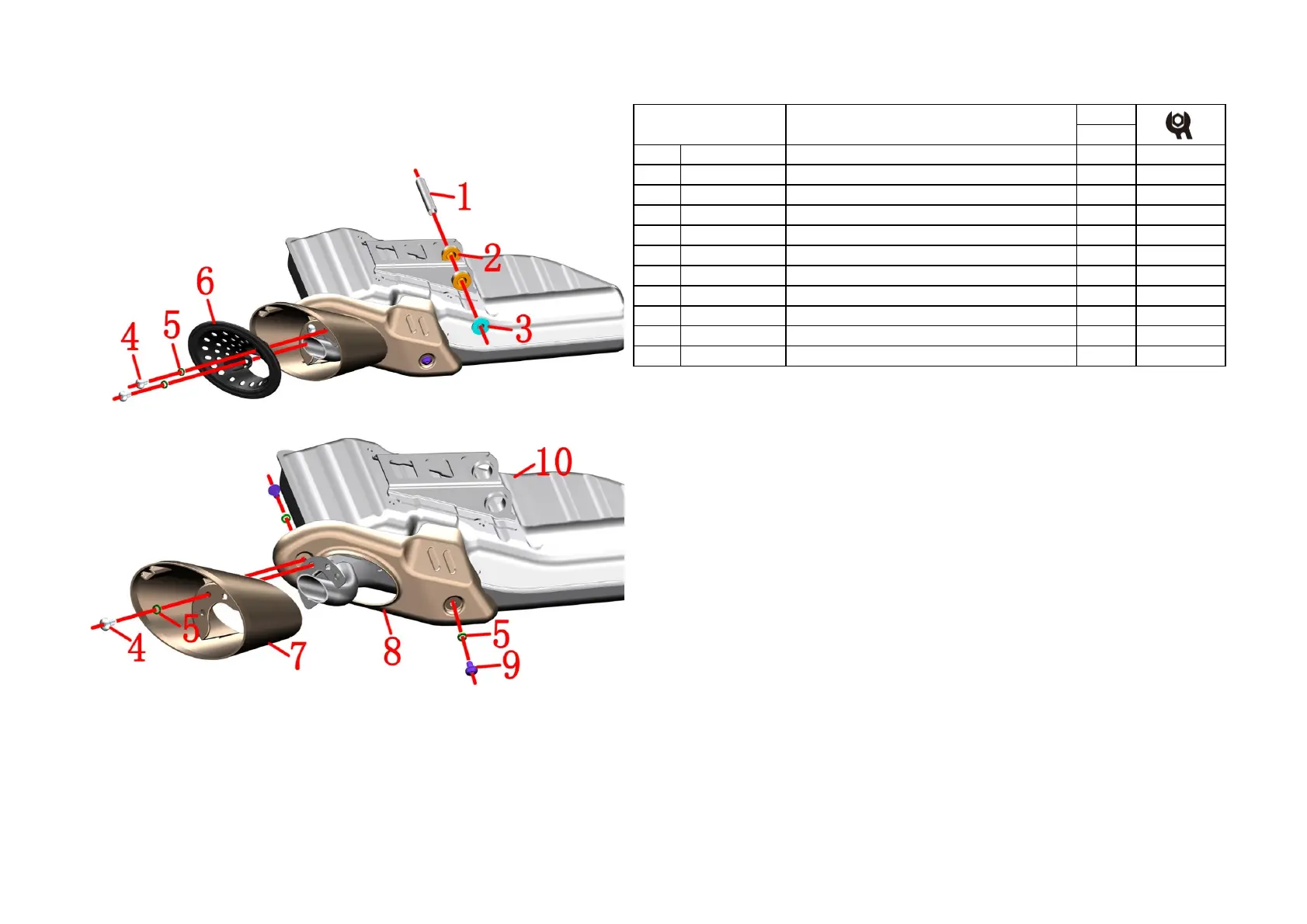

Fig.2 MUFFLER
COMPONENT
Muffler component 2
