7-FRONT FORK COMPONENT 49
CHK
ADJ
N
O. PART NO.
1 1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc) 2
2 1166100-001000 ZT125－U electronic instrument (electrospray version) 1
3
－
PROCEDURE:

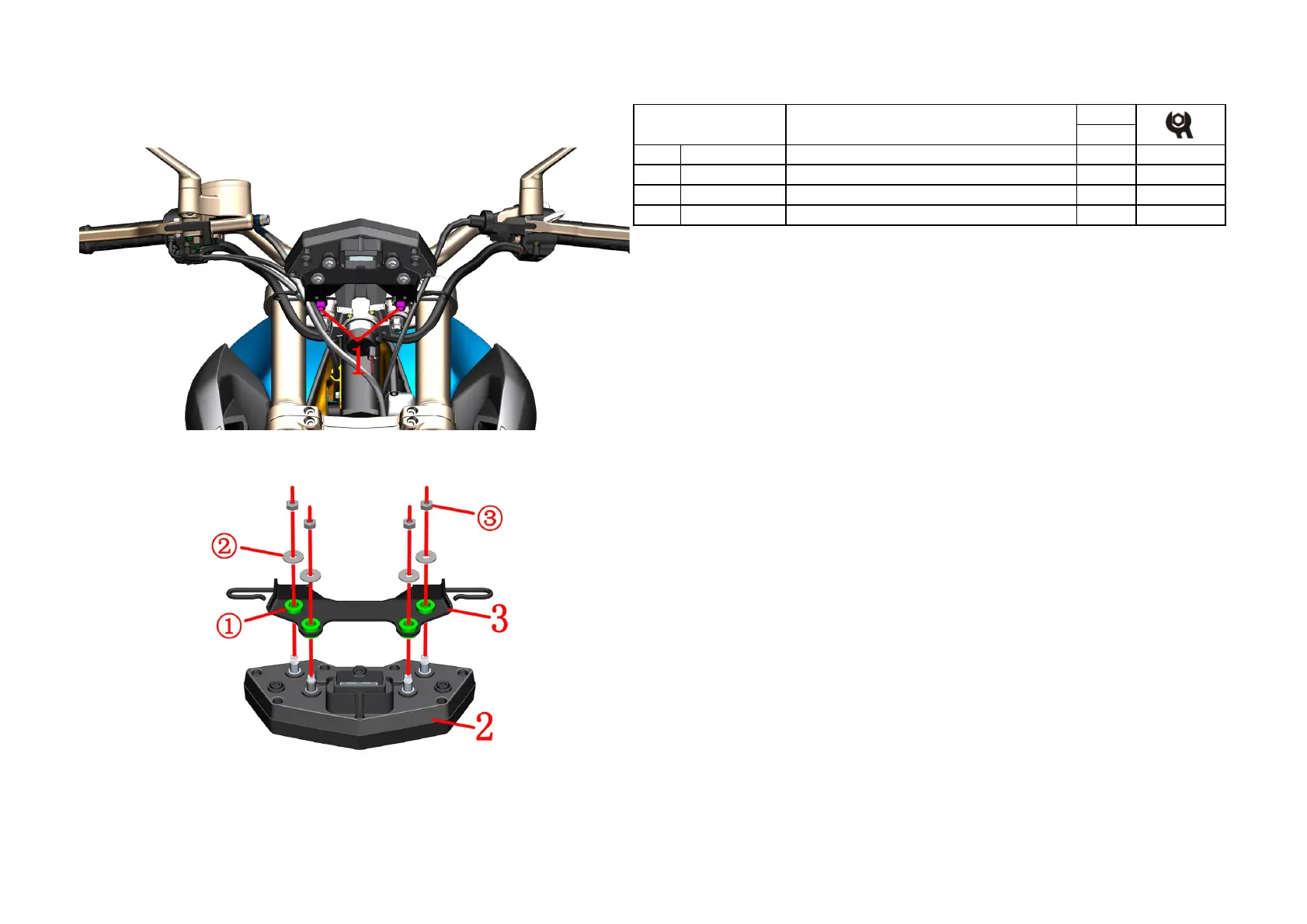

●Speedometer component
After finding the plug of the instrument, unplug it with 6# inner hexagon to remove the 2 bolts ⑴, and remove
the instrument assembly.
●Instrument Stand
After fixing the instrument ⑵, use a 10# sleeve to respectively remove the nut ③ and the gasket② that come
with the instrument.
Separate the instrument bracket assembly from the instrument⑵.
Remov the side cover round rubber ⑷ from the instrument support ⑶.
CAUTION:
●Protective measures must be taken to prevent scratches on the instrument and decorative cover.
●Refer to the manual for details about the functions and setting methods of the instrument.
●
When reinstalling the instrument, the torque of M6 nut is 8~12N.m. Excessive torque will easily break the stud
on the instrument.
Fig.13 FRONT FORK
COMPONENT
Speedometer component
