Zontes ZT125-Z2 User Manual

11-REAR COVER COMPONENT 72
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1251100-102000
Non-standard bolt M6×16
（
304 stainless steel
）
4
2
1250303-010093
GB6177.1M6
（
color zinc
）
2
3
1271200-144000
KD150
－
G1 battery holder (gel battery)
1
4
1240300-007000
HJ125
－
6 Battery rubber gasket
4
5
1251300-063093
Plywood M6×11×15
（
color zinc
）
5
6
1244200-087000 ZT310-X tail skirt middle waterproof rubber stopper 2
7
1221200-094000
KD150
－
Z2 bottom of tail group
1

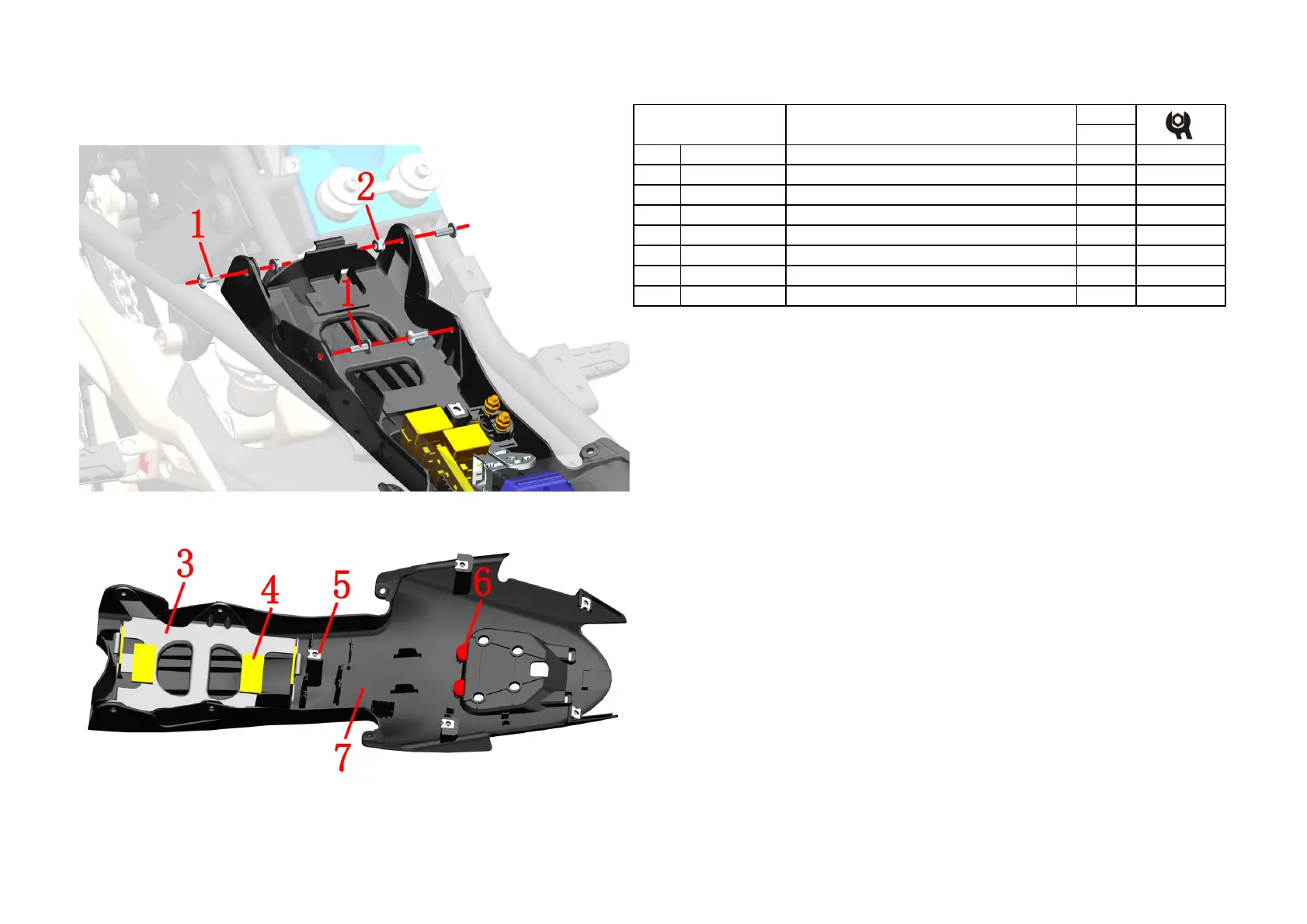

Fig.8 REAR COVER
COMPONENT
Electrical device box component
PROCEDURE:
●Rear cover bottom assembly
Remove bolt ⑵ and nut ⑴
with 4# inner hexagon and 10# torx wrench.
Pull out the fuse box and the starting relay from the bottom of the rear cover without removing it; the ECU plug
does not need to be pulled out.you can pull down the entire rear cover and remove the entire rear skirt.
Take out the battery holder ⑶ from the rear cover ⑺. The battery rubber pad ⑷ is a double-sided tape pasted
on the battery holder ⑶.
Remove the splint ⑸ and the waterproof rubber plug ⑹.
CAUTION:
●The patch cord plug and the tail light plug are in the same rubber sleeve.
●Protect protective measures to prevent scratching the appearance of parts.
●When reassembling, check whether there is any pressure on the wire to prevent short circuit when tightening
the bolt.
