7-FRONT FORK COMPONENT 41
CHK
ADJ
NO. PART NO.
1
－
3
1134100-032000 ZT250-R Right handle rocker (Machine) 1
4
－
R balance block assembly
1
5
－
R right handle bar rubber sleeve
1
6
1134100-019000 ZT250-R right hand half cover 1
7
1251100-121093 Non-standard bolt M8×25 (color zinc) 2

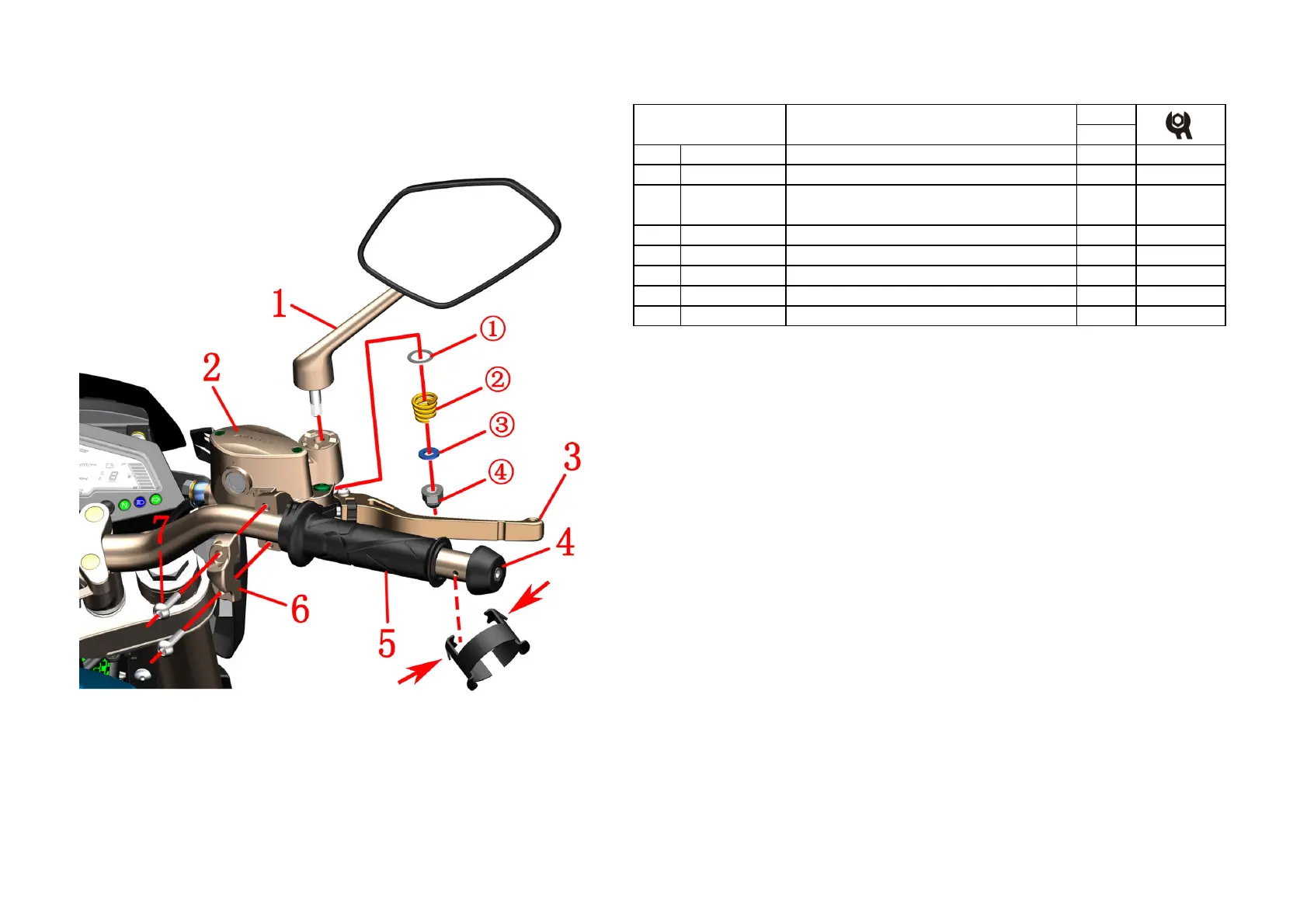

Fig.5 FRONT FORK
COMPONENT
Right hand component
PROCEDURE:
●Rearview mirror
Hold the mirror stem in one hand, remove the nut ④ with a sleeve, and remove the small pad ③, the spring ②
and the large pad ①. Remove the mirror from the front brake master pump.
●Right handlebar to put rubber sleeve, balance block
Push the rubber sleeve ⑸ with the right handlebar to push forward to expose the upper balance block fixing
hole; use the tool to press the convex parts at both ends of the elastic block on the balance block and pull out the
balance block assembly ⑷, and then put the right handle Remove the rubber sleeve ⑸.
●Right handlebar half cover
Hold the front disc brake main pump ⑵ with one hand, and remove the bolt ⑺ with a 6# inner hexagon socket.
remove the half cover of right handle bar ⑹.
CAUTION:
●The motorcycle should be fixed after horizontal support.
●Periodically check that the fluid level of the brake fluid is between 3/4 of the observation window.
●Do not flush the cup directly with high pressure water.
●The small spacer of the rear view mirror anti-rotation limit slot needs to be aligned with the slot on the mirror
bar bolt.
●The right handlebar refers to the switch to replace the throttle line.
●The joint between the front disc brake main pump and the half cover should be aligned with the right hand to
match the triangle on the switch.
ZT125T front disc main pump assembly（without
rocker arm）
1100300-0440002 1
