5-PEDAL COMPONENT 25
CHK
ADJ
NO. PART NO.
1 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
2
－
S Gear swift rod spline of Rocker arm
1
3 1250301-020093 GB6170M6 (environmental color) 1
4 1271200-086000 KD150－U shift lever adjusting screw φ10×72 1
5 1250301-018093 GB6170 M6－LH (army green) 1
6
－
T rocker arm, gear shift rod
1
7
－
8
－
X R, front pedal component
1
PROCEDURE:
●Adjust the height of gear shift rod
Follow the direction of arrow and loosen Nut⑶, Nut⑸ with a 10# open spanner.Using 8# open spanner to
adjust the gear shift rod adjustment bolt until the height becomes suitable. Then tighten the nuts. If the above-
mentioned method can not adjust the gear shift rod to a satisfying position, take off bolt⑴ and adjust gear shift
rod spline of rocker arm⑵ with a straight screwdriver by shoving a little bit the groove in the middle while
dragging it out. Reassemble after the height is suitable. Pay attention to the aligning of the groove in the middle.
●Adjust the height of brake pedal
Follow the direction of arrow and loosen Nut② with a 14# open spanner. Spin the adjustment rod bolt① with a
10# open spannerand adjust the brake pedal⑺position and foot⑻ on top of the height to comfort position. Fix
the adjustment rod bolt① and tighten Nut②.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of gear shift rod should be ajusted to a suitable range. Otherwise the riding experience would be
influenced.
●The height of brake pedal should be ajusted to a suitable range. Otherwise the durance of braking shoe and
plate would be influenced. In severe case, ineffective braking is possible.

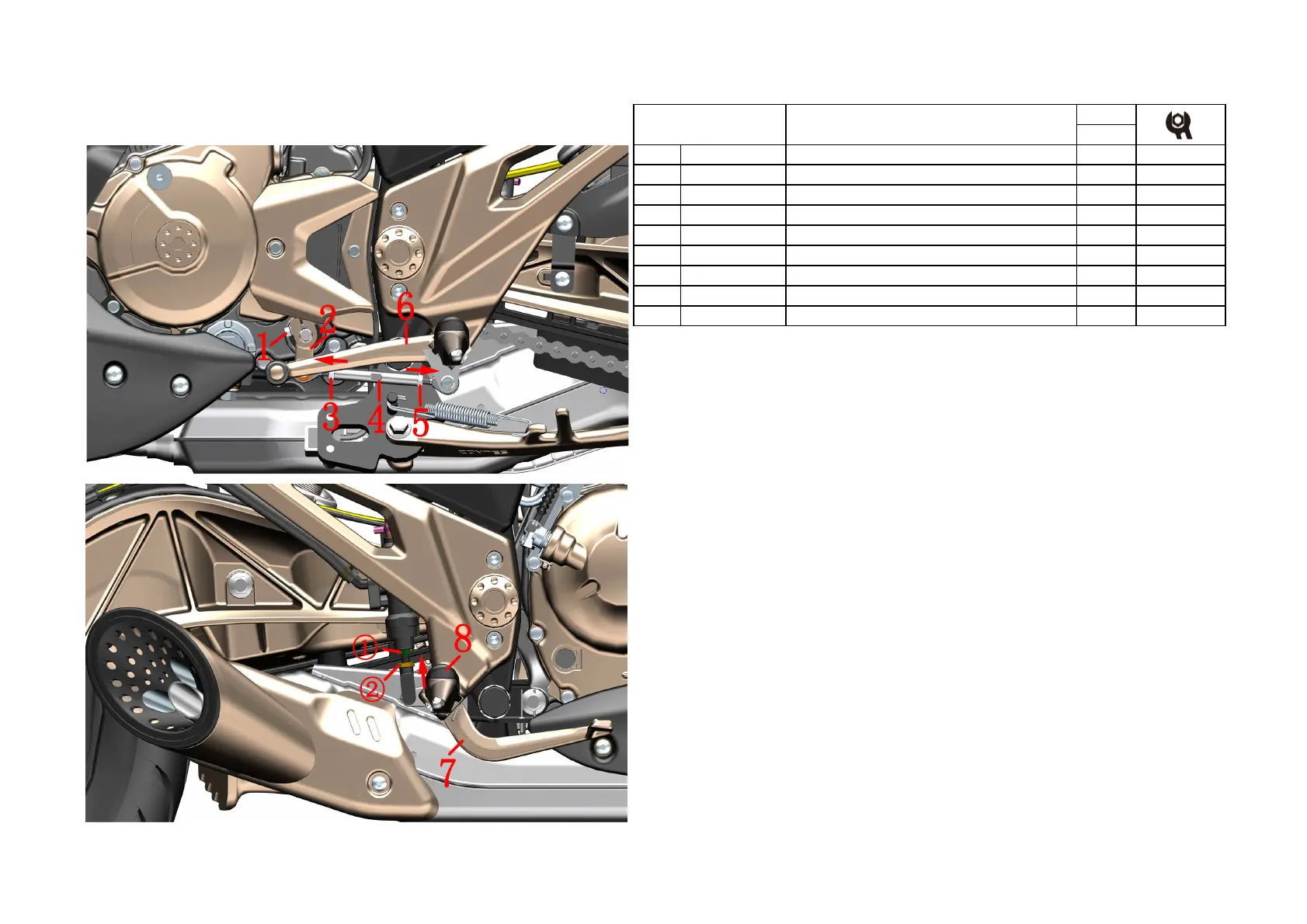

Fig.1 FOOT PEDAL
COMPONENT
Adjust the hight of foot pedal
