Zontes ZT125-Z2 User Manual

5-PEDAL COMPONENT 28
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1
KD150
－
U right pedal support
1
2
1274100-012000 ZT250
－
S Pedal pin 2
3
1264100-006000 ZT250
－
S Pedal circlip 2
4
1264100-004000 ZT250
－
S front right foot pedal torsional spring 1
5
ZT310
－
X R, front pedal component
1
6
ZT310
－
X R, rear pedal component
1
7
1270300-272000 KD250
－
F rear pedal locating plate 1
8
1274100-010000 ZT250
－
S rear pedal steel ball 1
9
1264100-005000 ZT250
－
S foot pedal steel ball spring 1
10
1250205-038000 GB70.2M5×12(stainless steel) 2
11 1250501-010000 GB93φ6 spring pad 2
12 1274200-051000
ZT310
－
X footrest gum cover fixed plate 2
13 1244200-024000
ZT310
－
X footrest gum cover 2
14 1251100-167000
Non
－
standard ball head boltsM6×8 1
15
ZT310
－
X R, front pedal 1
16
ZT310
－
X R, rear pedal 1
After sales
PROCEDURE:
●R, front pedal
Disassemble circlip⑶. Take off foot pedal pin axle⑵. Then disassemble R, front pedal⑸, foot pedal spring⑷.
●R, rear pedal
Disassemble circlip⑶. Take off foot pedal pin axle⑵. Then pull out R, rear pedal⑹.Take down positioning
plate⑺, steel ball⑻, spring⑼.
●After sales parts for pedal component
Hold tightly the R front pedal⒂. Disassemble bolt⒁ with a 10# sleeve. Disassemble bolt⑽ with 3# inner
hexagon socket.Take off spring washer ⑾. Take off rubber⒀, positioning plate⑿. Only front pedal needs bolt
⒁. Foot pedal rubber⒀, positioning plate⑿, bolt⑽,spring washer ⑾ are in common use.Each part use 1 piece
for after sales purpose.
Hold tightly the R rear pedal⒁,Disassemble bolt⑽ with 3# inner hexagon socket.Take off spring washer ⑾.
Take off rubber⒀, positioning plate⑿.
CAUTION:
●Ensure correct installation when exchanging after sales components of the pedal.
Right footrest component 3

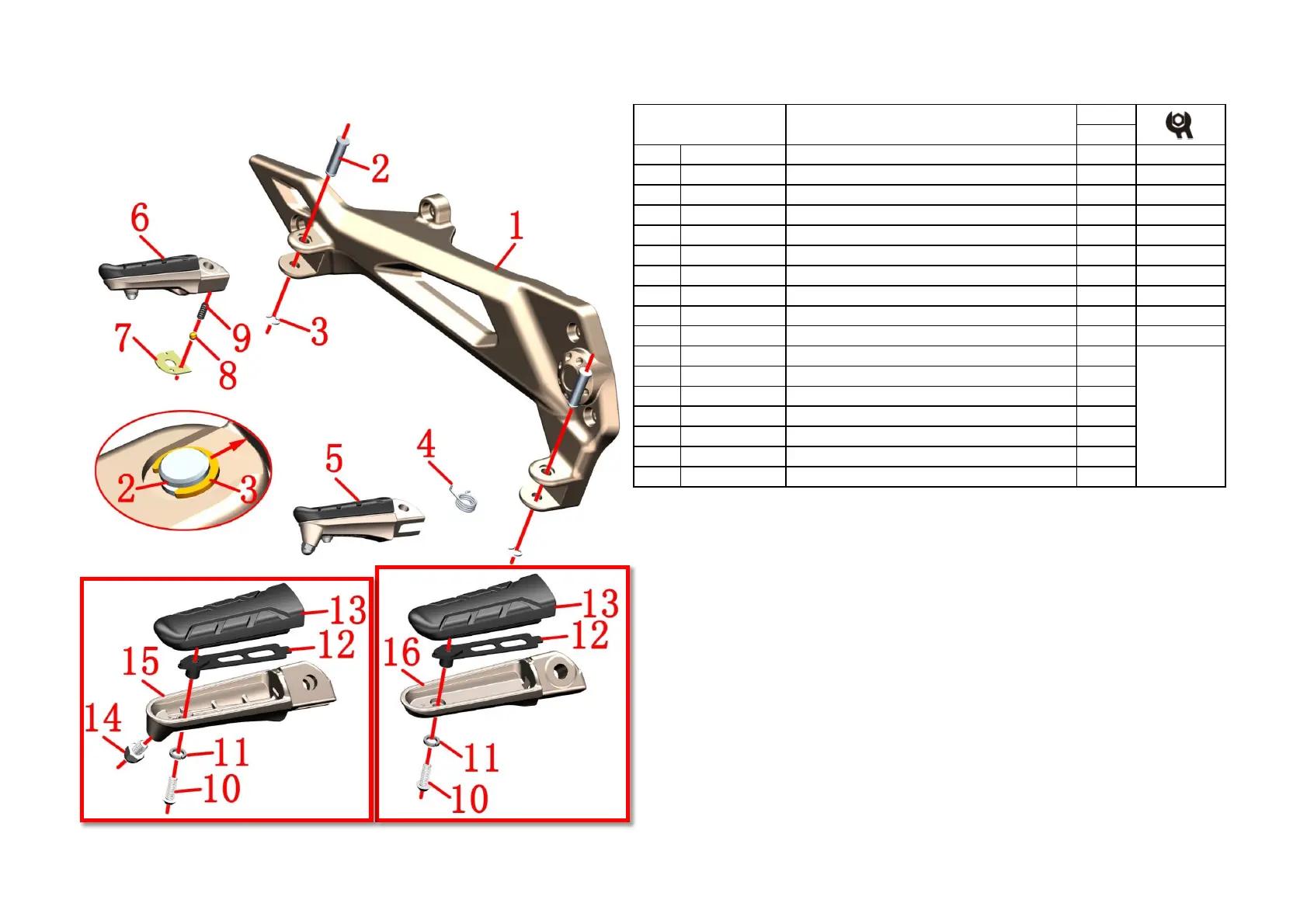

Fig.4 FOOT PEDAL
COMPONENT
6
5
