7-FRONT FORK COMPONENT 51
CHK
ADJ
NO. PART NO.
1 1224100-025000 ZT250－S M8 bolt decorative buckle 4
2 1250205-023000 GB70.1 inner hexagonal M8X35 (environmental color) 4
3 1134200-005000 ZT310－R press block of handle bar(home－made) 1
4
－
1

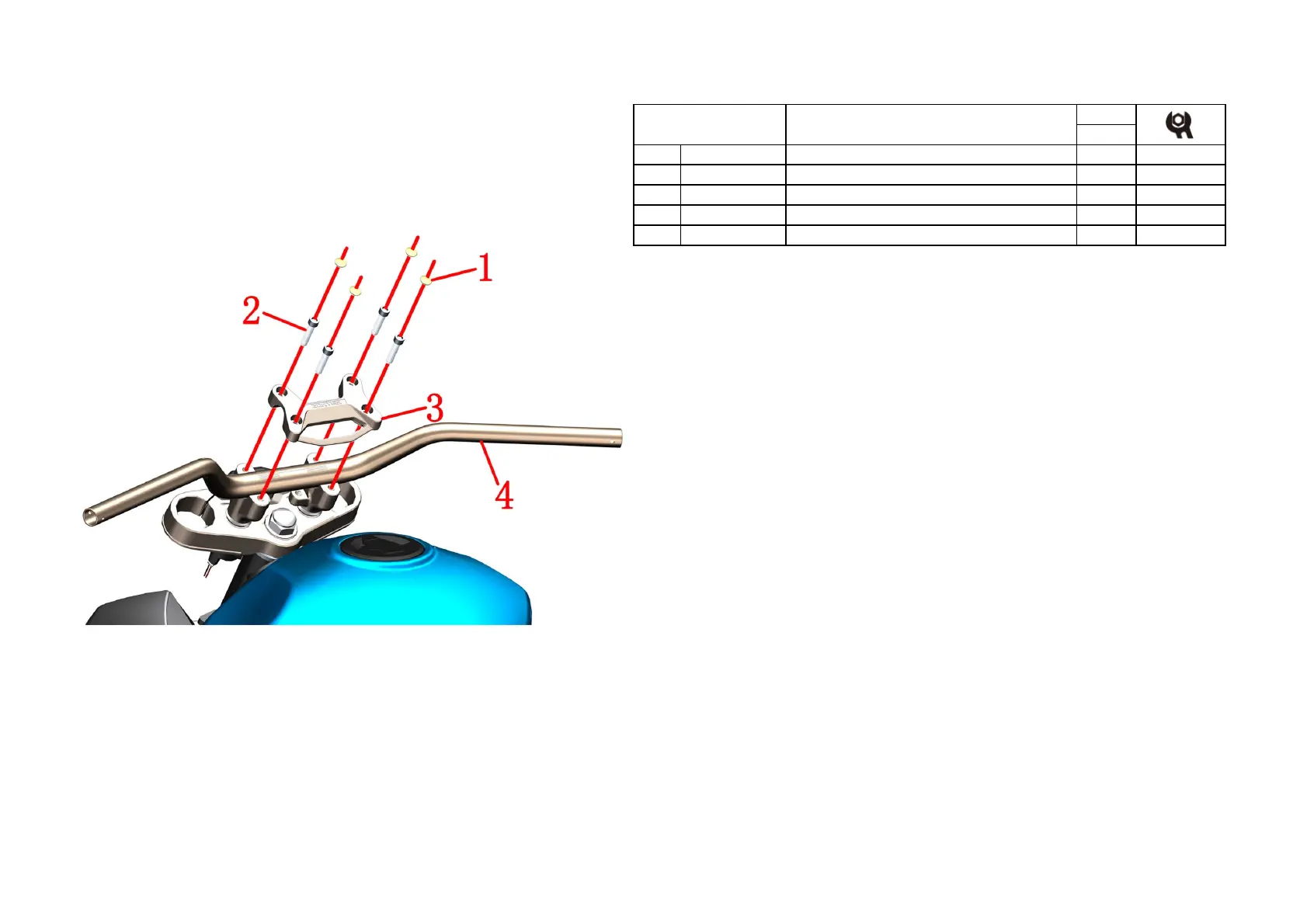

Directional lever component
Fig.15 FRONT FORK
COMPONENT
PROCEDURE:
●Directional components
Using a blade to pick up the decorative buckles⑴, hold the direction handle⑷ in one hand, and remove the bolt
⑵ with a hexagonal tool in one hand; remove the clamp⑶ and finally remove the direction handle⑷.
CAUTION:
●Protect protective measures to prevent scratching the appearance of the instrument case and the decorative
cover.
●
When assembling the clamping block, first tighten the 2 bolts at the front, and then tighten the bolts at the rear
(close to the fuel tank side). Wrong sequence or diagonal locking may break the lock block.
To Next Page
