Zontes ZT125-Z2 User Manual

11-REAR COVER COMPONENT 69
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250105-148093 GB5789M8×25(color zinc ) 4
2 1251700-058093
Flanging bushing φ8.2×φ11×4.5
＋
φ16×1.5(color zinc)
4
3 1240300-071000 Flanging bushing rubber (φ11×φ16×1) 4
4 1251100-101000 Non－standard bolt M6×12 (304 stainless steel) 2
5 1274100-057095 Flanging bushing φ6.2×φ8.5×3.5＋φ14×1.5 6
6 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 8
7 1221200-052000
KD150
－
U rear fender bracket cover
1
8 1251100-120093 Non－standard bolts M6×16 (environmental color) 6
9 1250502-010093 GB96.1φ6(color zinc) 2
10 1274100-018000 ZT250－S anti－hot plate sleeve, muffler 2
11 4021200-045051
KD150
－
U rear fender bracket (dark gray matte)
1
Rear mud board component 1

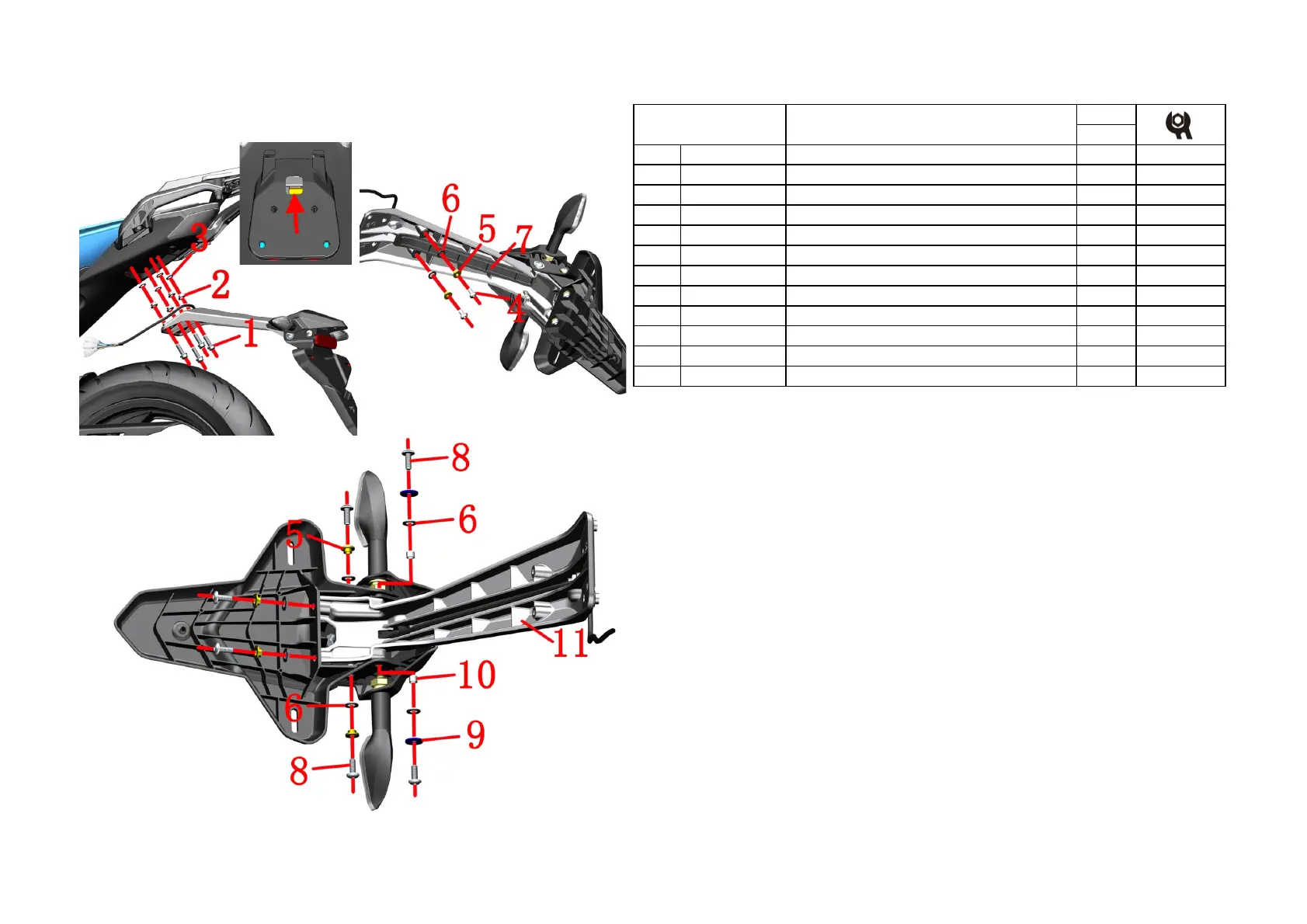

Fig.4 REAR COVER
COMPONENT
PROCEDURE:
●Rear mud board component
Remove the seat cushion.
Find
the 3 plugs of the adapter cable on the left and unplug them.（The patch cord plug and the tail light plug
are in the same rubber sleeve.）
Grasp the rear fender assembly and use a 12# sleeve to remove the 4 bolts (1), and remove the bushing (2) and
the cushion rubber (3).
Pull down the bottom of the rear cover for a certain distance, and then pull the plug of the adapter cable out of
the small hole pointed by the arrow. Remove the rear fender assembly from the bike and put it away.
●Cover
Use 4# inner hexagon to remove 2 bolts ⑷, then remove the bushing ⑸ and cushion rubber ⑹, and then
remove the cover ⑺. Pull the adapter cord plug out of the hole in the fender bracket.
●Rear fender sub-assembly
Use a 4# inner hexagon to remove the 2 bolts ⑻ at the bottom, and then remove the bushing ⑸ and cushion
rubber ⑹
.
Use 4# inner hexagon to remove the bolts ⑻ on both sides of the back of the turn signal, and remove the gasket
⑼, cushion rubber ⑹ and anti-scalding board bushing ⑽.
Use a 4# inner hexagon to remove the 2 bolts ⑻
on both sides of the turn signal light-emitting surface, and then
remove the bush ⑸ and the cushion rubber ⑹.
Separate the rear mud plate sub-assembly, turn signal bracket assembly and rear mud guard bracket.
CAUTION:
●When reassembling, check if there is any pressure on the wire to prevent it from tightening.Short circuit
caused by bolts.
●Pay attention to the force when pulling out the connecetor plug.
