5-PEDAL COMPONENT 31
CHK
ADJ
NO. PART NO.
1
－
X L, rear foot pedal component
1
2 1264100-005000 ZT250－S foot pedal steel ball spring 1
3 1274100-010000 ZT250－S rear pedal steel ball 1
4 1270300-272000 KD250－F rear pedal locating plate 1
5 1274100-012000 ZT250－S Pedal pin 1
6 1264100-006000 ZT250－S Pedal circlip 1
7
－
8 1250205-038000 GB70.2M5×12(stainless steel) 1
9 1250501-010000 GB93φ6 spring pad 1
10 1032142-040000 ZT310－X rear left pedal 1
11 1274200-051000 ZT310－X footrest gum cover fixed plate 1
12 1244200-024000 ZT310－X footrest gum cover 1
PROCEDURE:
●L, rear foot pedal
Disassmble circlip⑹ with a tool. Take off foot pedal pin axle⑸. Then pull out L, rear foot pedal⑴. Take off
positioning plate⑷, steel ball⑶, spring⑵.
●After sales parts of foor pedal with rubber
Hold the L, rear foot pedal⑽ tightly, using 3# inner hexagon socket to disassemble bolt⑻, Take off spring
washer ⑼. Take off rubber⑿ and positioning plate⑾.
CAUTION:
●Ensure correct installation when exchanging after sales components of the pedal.
After sales

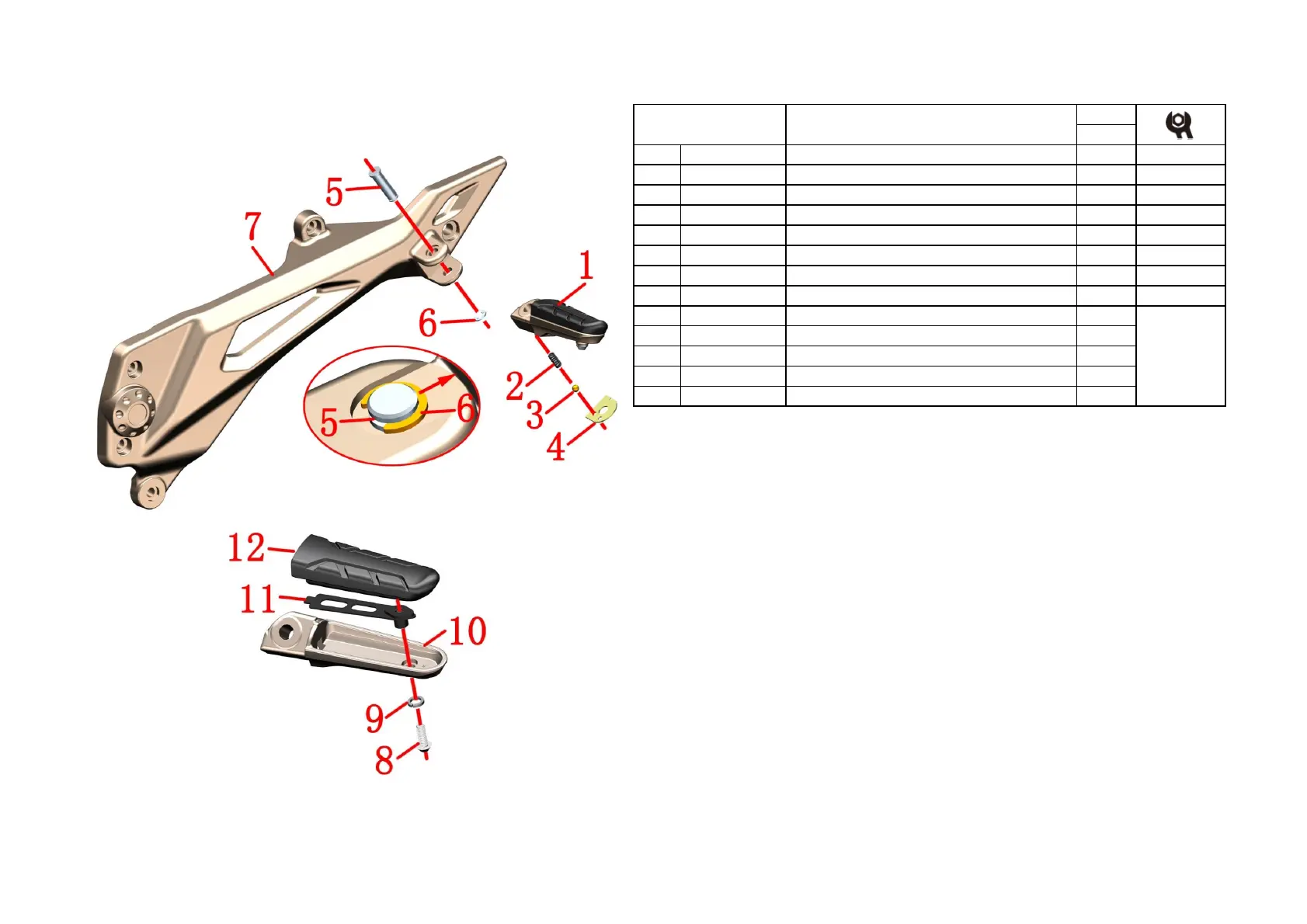

Fig.7 FOOT PEDAL
COMPONENT
Left footrest component 3
