Parameters 249
DI4 Digital input DI4 (10.02 DI delayed status, bit 3). 6
DI5 Digital input DI5 (10.02 DI delayed status, bit 4). 7
DI6 Digital input DI6 (10.02 DI delayed status, bit 5). 8
DIO1 Digital input/output DIO1 (11.02 DIO delayed status, bit 0). 11
DIO2 Digital input/output DIO2 (11.02 DIO delayed status, bit 1). 12
Other [bit] Source selection (see Terms and abbreviations on page 148). -
22
22 Speed reference
selection
Speed reference selection; motor potentiometer settings.
See the control chain diagrams on pages 644…646.
22.01 Speed ref unlimited Displays the output of the speed reference selection block.
See the control chain diagram on page 645.
This parameter is read-only.
-
-30000.00 …
30000.00 rpm
Value of the selected speed reference. See par.
46.01

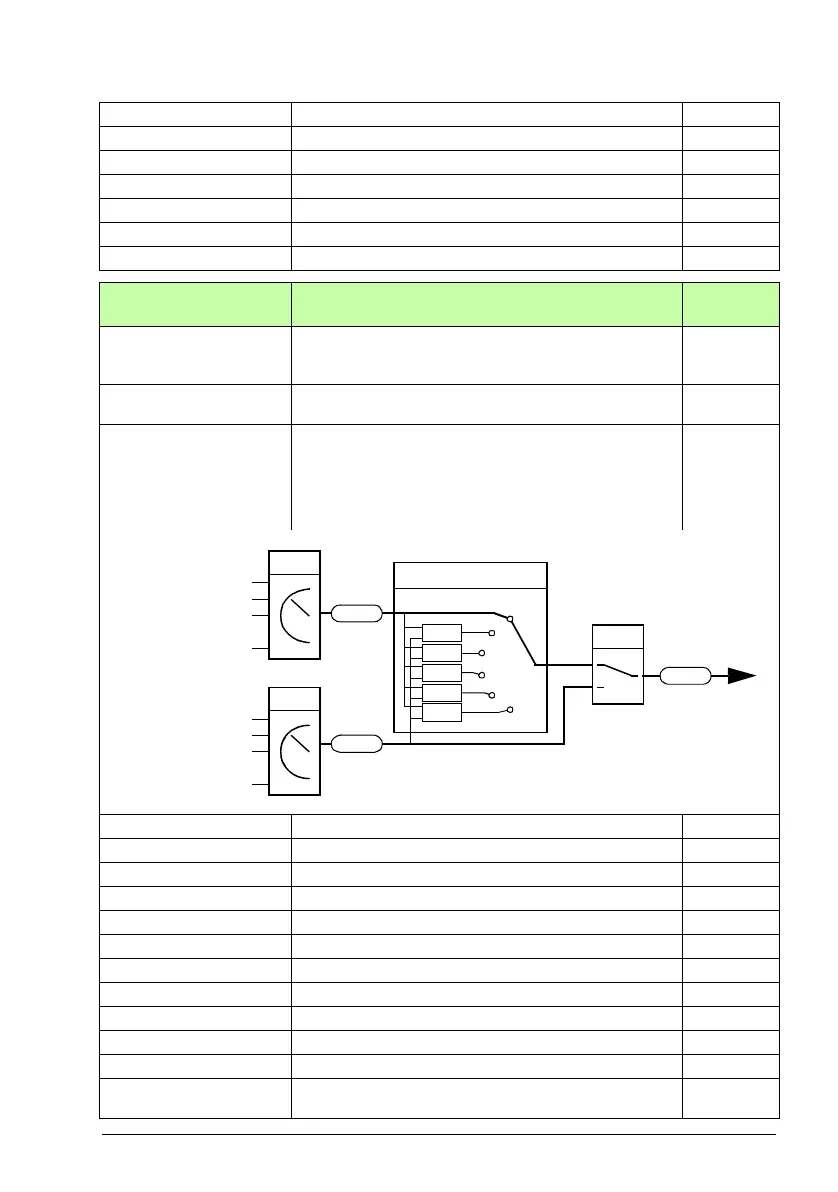

22.11 Speed ref1 source Selects speed reference source 1.
Two signal sources can be defined by this parameter and
22.12 Speed ref2 source. A digital source selected by 22.14
Speed ref1/2 selection can be used to switch between the two
sources, or a mathematical function (22.13 Speed ref1
function) applied to the two signals to create the reference.
par. 09.23
Zero None. 0
AI1 scaled 12.12 AI1 scaled value (see page 197). 1
AI2 scaled 12.22 AI2 scaled value (see page 199). 2
FB A ref1 03.05 FB A reference 1 (see page 156). 4
FB A ref2 03.06 FB A reference 2 (see page 156). 5
EFB ref1 03.09 EFB reference 1 (see page 156). 8
EFB ref2 03.10 EFB reference 2 (see page 156). 9
DDCS ctrl ref1 03.11 DDCS controller ref 1 (see page 157). 10
DDCS ctrl ref2 03.12 DDCS controller ref 2 (see page 157). 11
M/F reference 1 03.13 M/F or D2D ref1 (see page 157). 12
M/F reference 2 03.14 M/F or D2D ref2 (see page 157). 13
Motor
potentiometer
22.80 Motor potentiometer ref act (output of the motor
potentiometer).
15
No. Name/Value Description Def/FbEq16
22.13
Ref1
22.14
1
0
MUL
SUB
ADD
MIN
MAX
22.11
22.12
22.83
22.81
22.82
0
AI
FB
…
Other
…
0
AI
FB
…
Other
…
