1MAC309294-MB F Section 9
Other functions
RER620 441
Technical Manual
Table 395: UPD monitored inputs
9.3 Programmable buttons FKEYGGIO
9.3.1 Function block

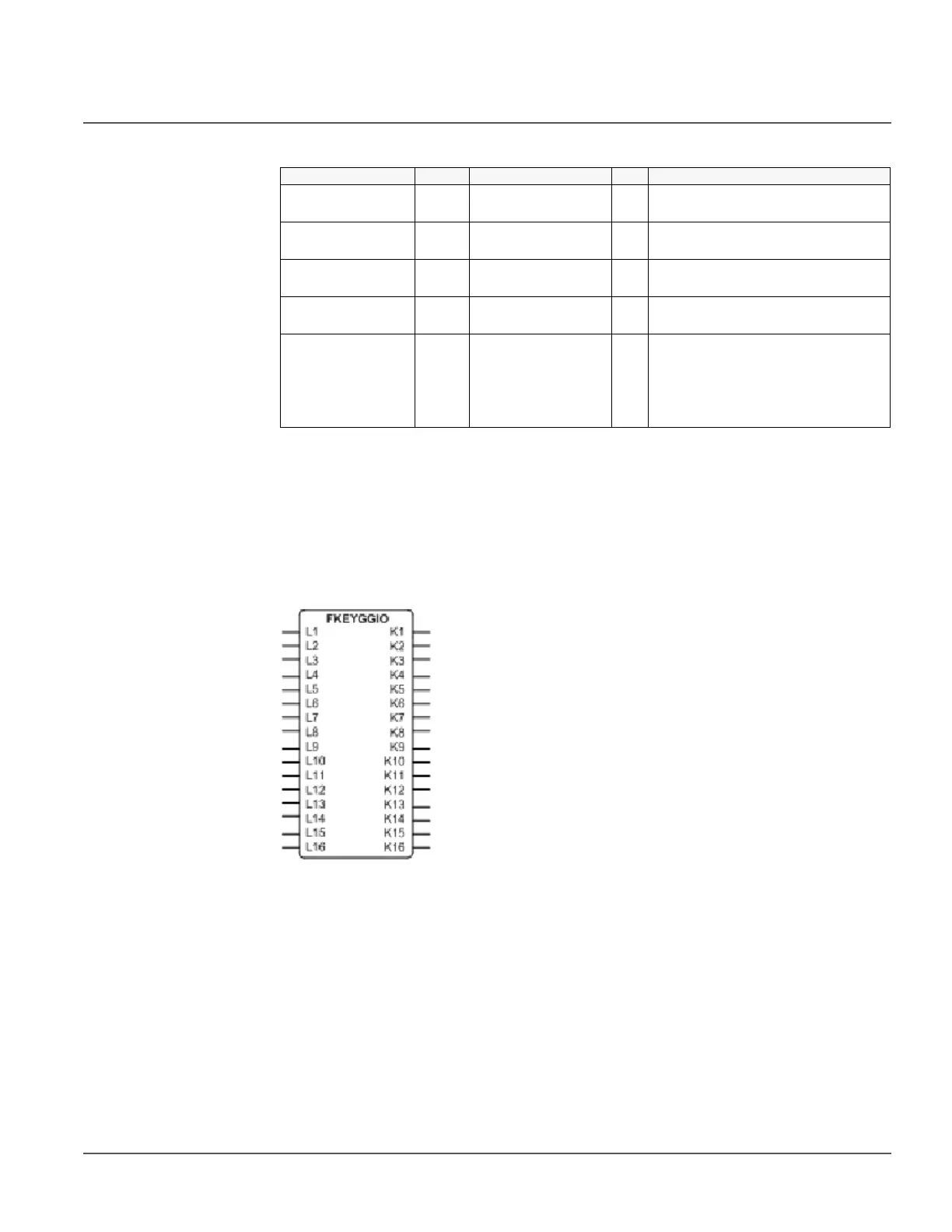

Figure 228: Function block
9.3.2 Functionality
The programmable function block FKEYGGIO is a simple interface between the panel
and the application. The user input from the buttons available on the front panel is
transferred to the assigned functionality and the corresponding LED is turned ON/OFF for
indication. The behavior of each function key in the specific application is configured by
connection with other application functions. This gives the maximum flexibility.
The LED input and its key output of FKEYGGIO are independent. To make the led on a
pushbutton follow the state of the pushbutton, external glue logic is needed. The status of
FKEYGGIO inputs and outputs are NOT saved to non-volatile memory.
Name Type Values (Range) Unit Description
Last Pole Operation Enum Pass
Fail
1 Last pole operation was successful or
not successful.
Drive Voltage Enum OK
Too Low
1 Drive voltage is sufficient or is too low for
OCO.
Pole top switch vol Enum OK
Too Low
1 Pole-top switch voltage is OK ro is too
low.
General health Enum Pass
Fail
1 Internal healcheck was OK or failed.
Actuator Cont. test Enum 0=Actuator A failure
1=Actuator B failure
2=Actuator C failure
3=Cable disconnected
4= All actuator coils
passed continuity test.
1 Actuator continuity test result
To Next Page
