Chapter 4 Connect the Kinetix 350 Drive System
Single-phase Power Wired to Single-phase Drives
These examples illustrate grounded single-phase power that is wired to single-
phase Kinetix 350 drives when phase-to-phase voltage is within drive
specifications.

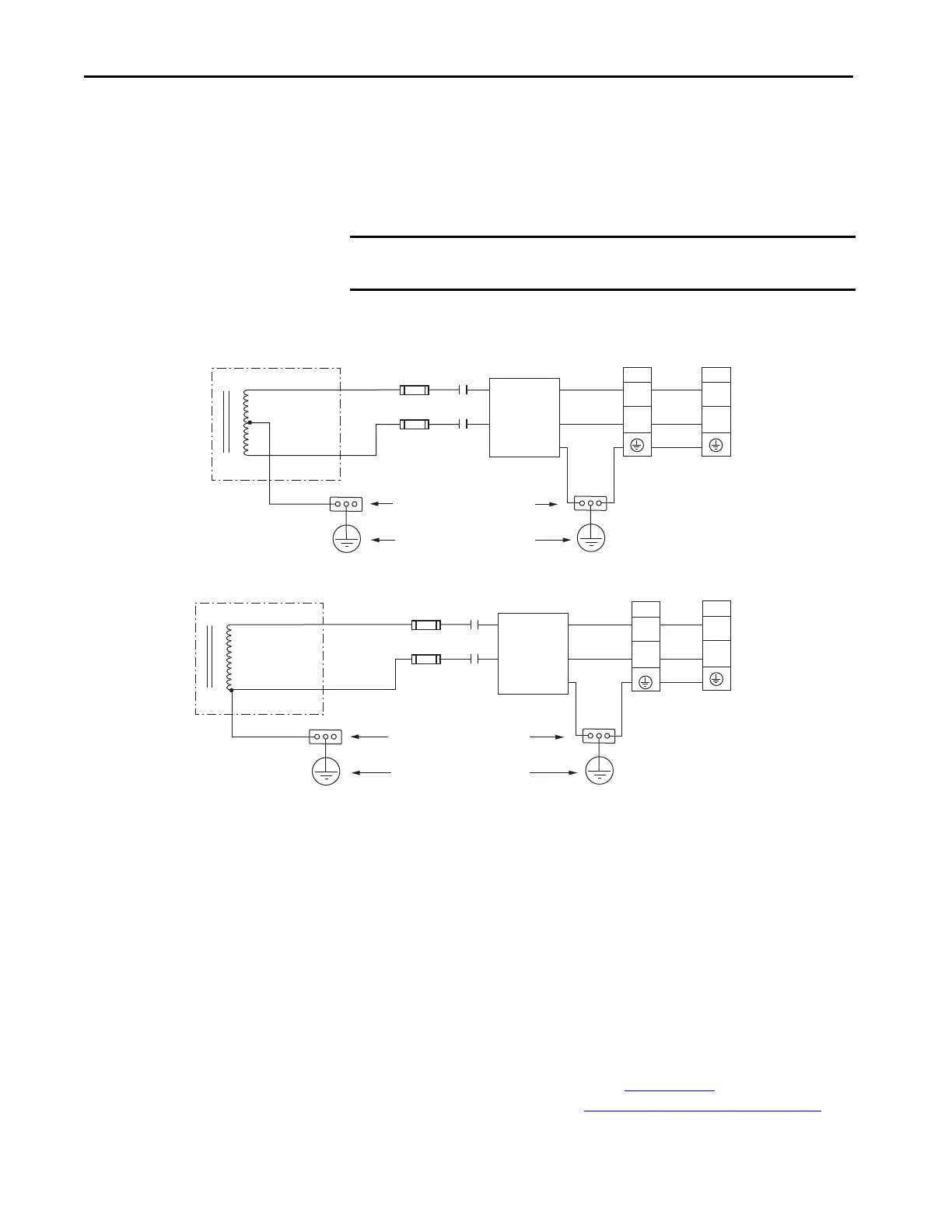

Figure 30 - Single-phase Grounded Power Configurations
(1) This configuration applies to voltage-doubler operation for 2097-V31PRx-LM drives.
If you reduce transformer output, the motor speed is reduced. Feeder and
branch short circuit protection is not illustrated.
Voltage Doubler Operation
You can wire the 2097-V31PRx-LM drives with 120V input voltage and
achieve twice the output voltage. To use the voltage-doubler circuit, connect
the 120V single-phase input power to the IPD-L1 and IPD-N terminals.
For Kinetix 350 drive power specifications, refer to Kinetix Servo Drives
Specifications Technical Data, publication KNX-TD003
. For Kinetix 350
drive input wiring diagrams, refer to Power Wiring Examples on page 131
.
IMPORTANT The 2097-V32PRx-LM models have integrated AC line filters and do not
require the AC line filter that is shown in this diagram.
L1
L2
L1
L2 (Neutral)
IPD
L1
L2/N
L1
L2/N
L1
N
E
IPD
L1
L2
L1
L2
L1
L2/N
E
IPD
L1
L2
IPD
L1
L2
Transformer Secondary
Transformer Secondary
Bonded Cabinet Ground Bus
Ground Grid or
Power Distribution Ground
AC Line
Filter
AC Line
Filter
120V AC
Output
240V AC
Output
Bonded Cabinet Ground Bus
Ground Grid or
Power Distribution Ground
Kinetix 350 Drives
Single-phase AC Input
Kinetix 350 Drives
Single-phase AC Input
M1
Contactor
Input Fusing
M1
Contactor
Input Fusing
2097-V31PRx -LM
(1)
2097-V31PRx-LM
2097-V32PRx-LM
2097-V33PRx -LM
To Next Page
