84 Rockwell Automation Publication 2097-UM002D-EN-P - April 2017
Chapter 5 Configure and Start up the Kinetix 350 Drive System
Configure the Logix5000
EtherNet/IP Controller
This procedure assumes that you have wired your Kinetix 350 drive system and
are using Logix Designer application version 21.00.00 or later.
For help using Logix Designer application as it applies to the configuration of
the ControlLogix® EtherNet/IP controller, refer to Additional Resources
on
page 9
.
Configure the Logix5000 Controller
Follow these steps to configure the Logix5000 controller.

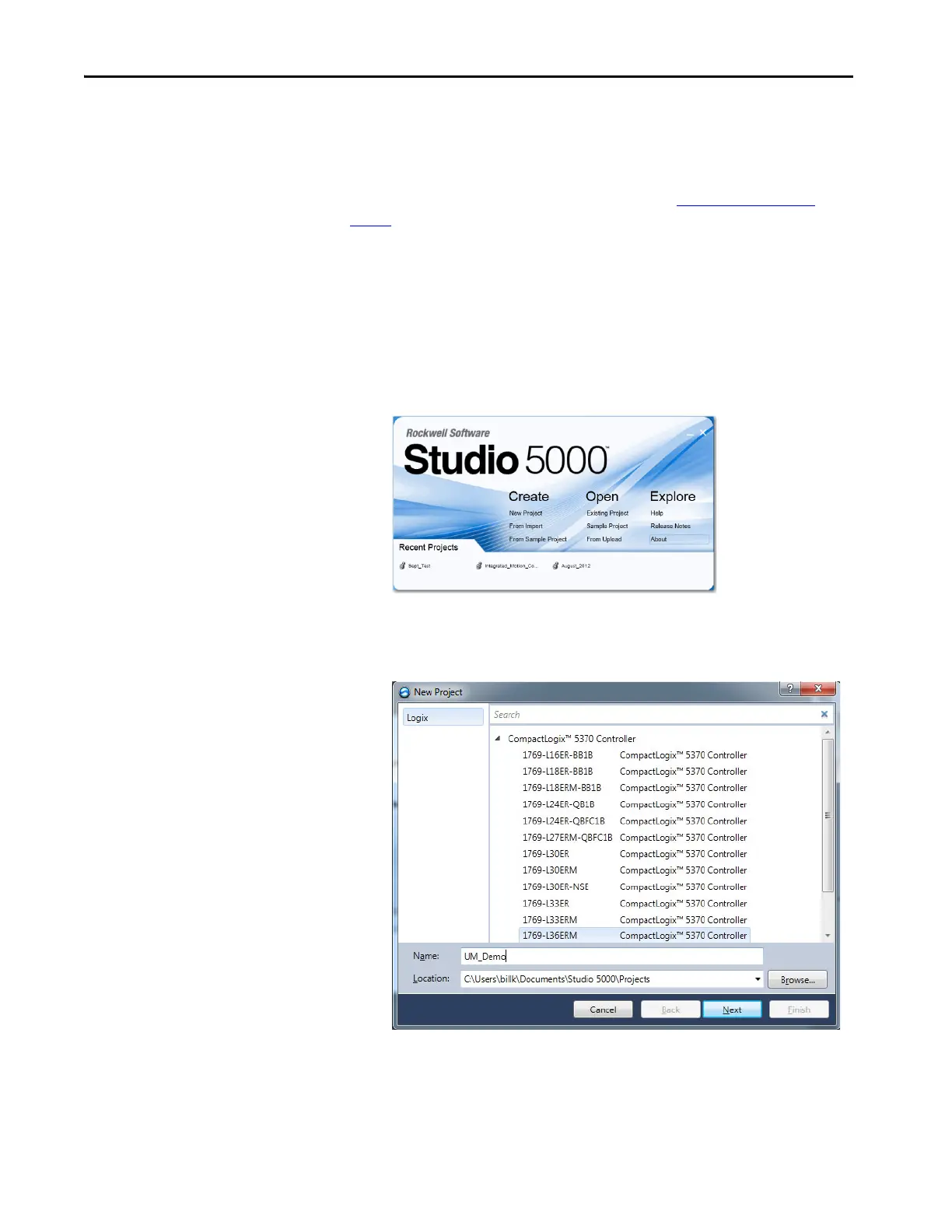

1. Apply power to your Logix5000 controller that contains the EtherNet/
IP port and open your Studio 5000® environment.
2. Click New Project.
The New Project dialog box appears.
3. Select the controller that you are using for your project and click Next.
