APRILIA RX 125 Service Station Manual

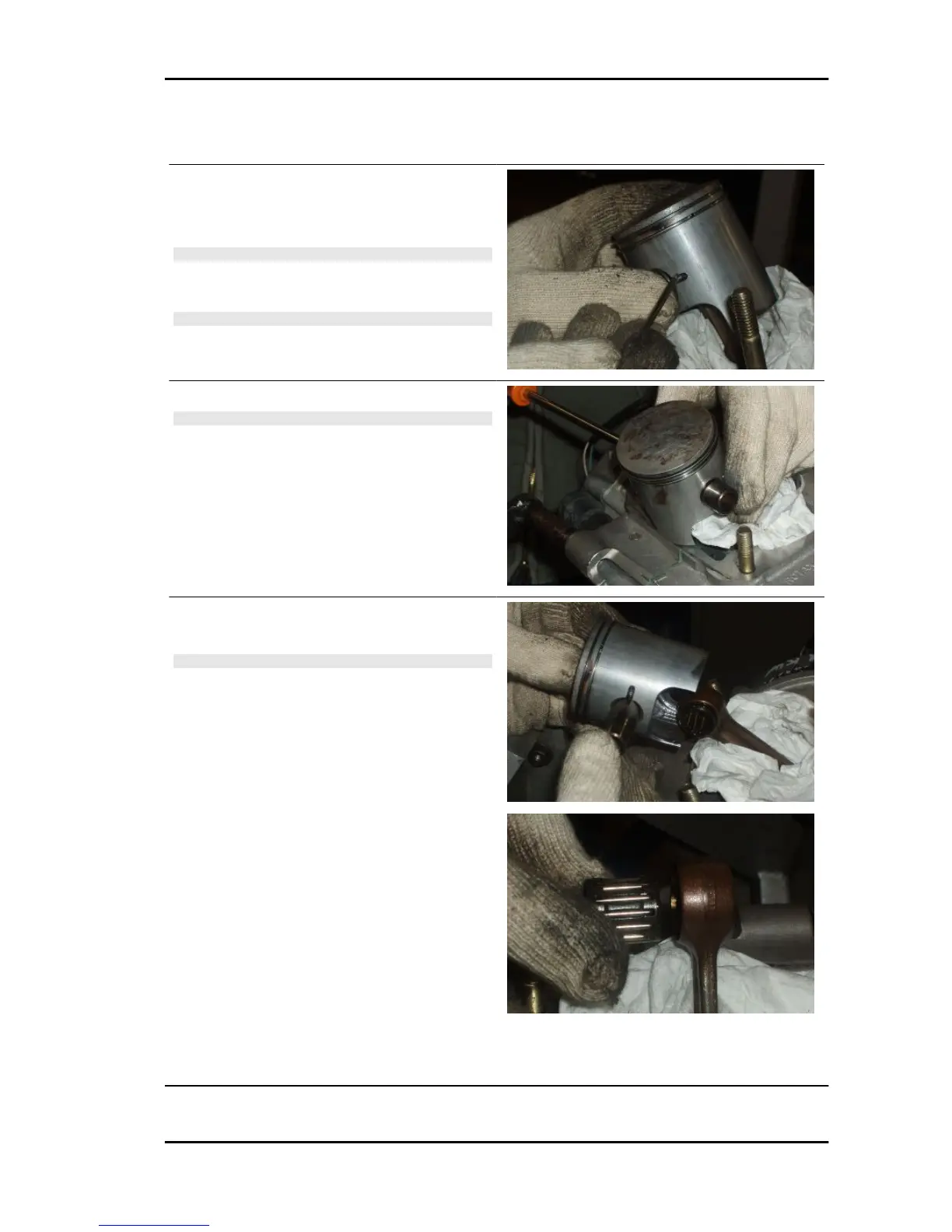

Disassembling the piston
•
Remove the cylinder.
•
Remove one of the two seeger rings of
the pin using a suitable tool.
CAUTION
BEFORE TAKING OUT THE PIN SEEGER RING, COVER
THE CRANKCASE OPENING WITH A CLOTH SO THAT THE
RING DOES NOT FALL INTO THE CRANKCASE.
NOTE
IT IS NOT NECESSARY TO REMOVE BOTH PIN SEEGER
RINGS.
•
Tap the pin out with a suitable punch.
CAUTION
WHILE TAPPING OUT THE PIN, HOLD THE PISTON WITH
ONE HAND SO THAT THE CONNECTING ROAD DOES NOT
BEND.
•
Remove the piston and collect the ball
retainer.
CAUTION
WHILE TAPPING OUT THE PIN, HOLD THE PISTON WITH
ONE HAND SO THAT THE CONNECTING ROAD DOES NOT
BEND.
See also
Removing the cylinder
RX SX 125 Engine
ENG - 107
