APRILIA RX 125 Service Station Manual

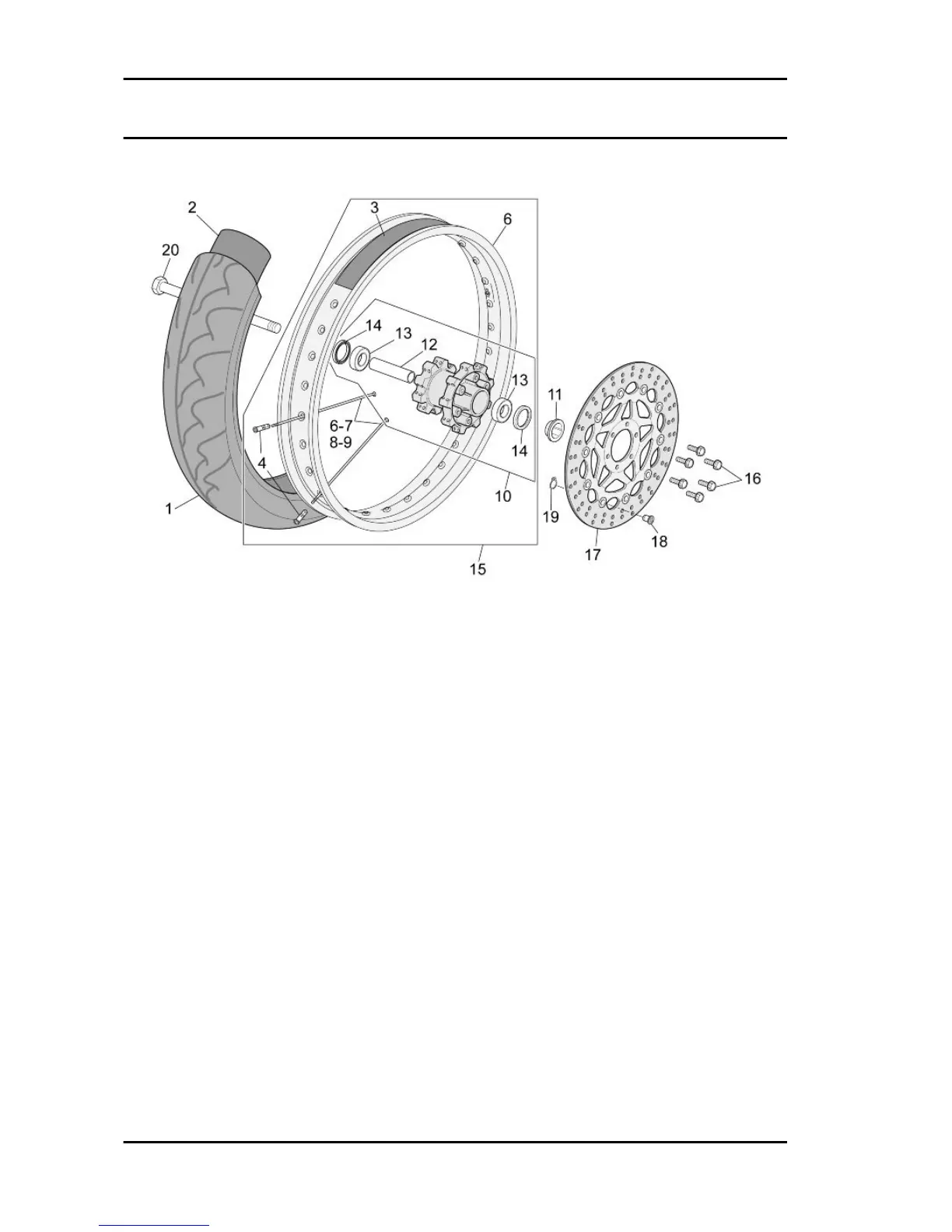

Front
Key:
1. Tyre
2. Air chamber
3. Wheel flap
4. Nipples
5. Rim
6. Front wheel radius
7. Front wheel radius
8. Front wheel radius
9. Front wheel radius
10.Hub
11.Wheel spacer
12.Bearings spacer
13.Hub bearing
14.Oil seal
15.Bare front wheel
16.TSPEI screw
17.Brake disc
18.Magnet
Suspensions RX SX 125
SUSP - 140

APRILIA RX 125 Specifications

General

Displacement	124.2 cc
Max Power	11 kW (15 HP) @ 10, 700 rpm
Torque	11.2 Nm @ 8, 000 rpm
Fuel System	Electronic fuel injection
Transmission	6-speed
Rear Suspension	Monoshock
Front Brake	Single disc, 300 mm
Rear Brake	Single disc, 220 mm
Seat Height	905 mm
Weight	134 kg (dry)
Engine Type	Single cylinder, 4-stroke
Cooling System	Liquid-cooled
Front Suspension	Upside-down fork
ABS	Yes
