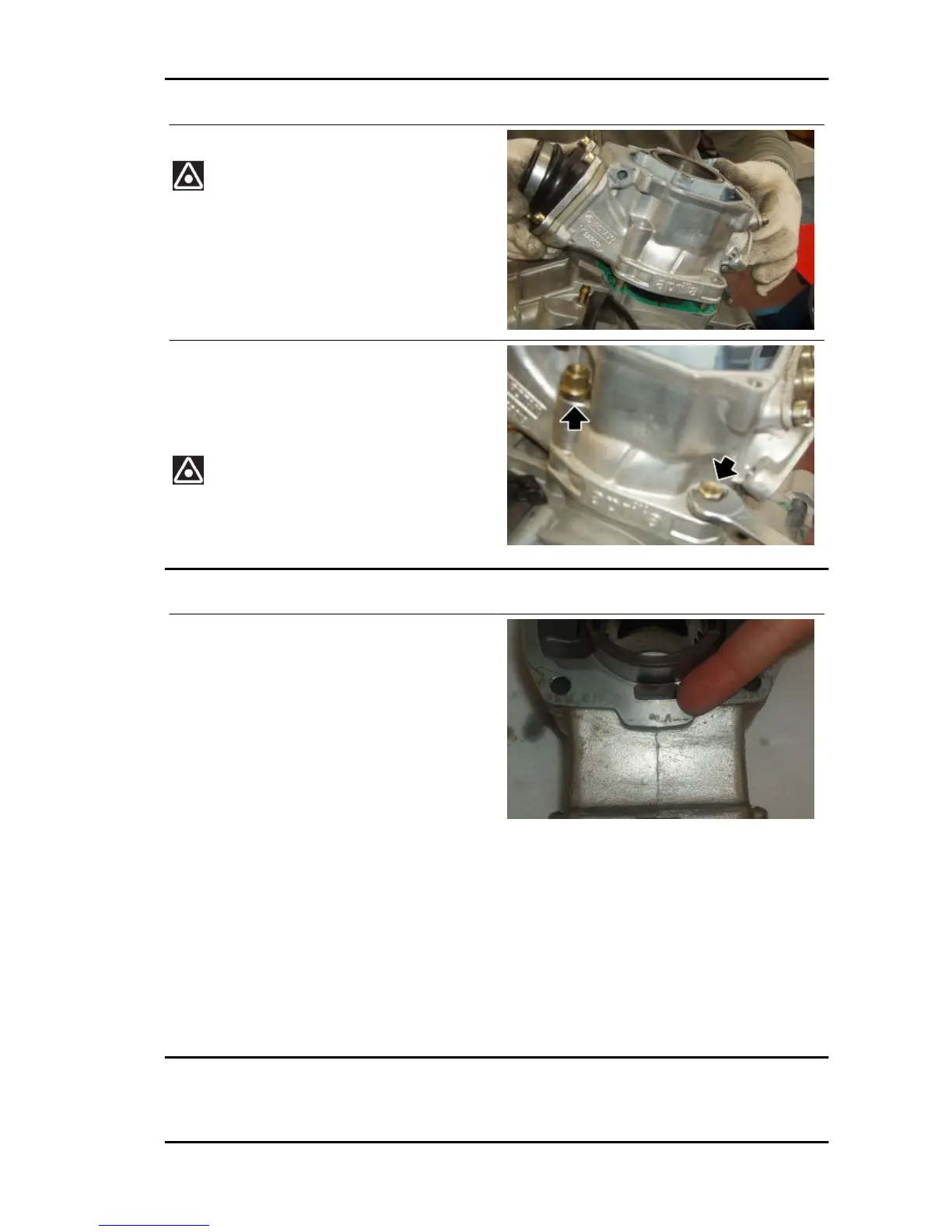

Place the cylinder.

ONLY ASSEMBLE TOGETHER PISTONS AND CYLINDERS

BELONGING TO THE SAME TOLERANCE RANGES.

•

Take out the wrench for piston rings.

•

Working from both sides, fasten the

cylinder crosswise with the four M8

nuts and relevant washers.

TIGHTEN THE FIXING NUTS AGAIN, WHEN THE ENGINE

IS COLD, AFTER THE FIRST 500 KM (310 MI).

Selecting the cylinder

•

The cylinder size code is stamped on

the surface of the cylinder base.

•

Read the cylinder diameter at TDC.

•

The bottom section of the cylinder sur-

face undergoes only slight wear. If the

cylinder TDC area is very worn (it is no

longer bright, rough and sharp), it can

be inferred that the engine has been

working fed on a fuel with too much

sulphur.

Cylinder "A" Diam. 54.000 - 54.010 mm (2.12597

- 2.12637 in) Diam. 54.060 mm (2.12834 in)

Cylinder "AB" Diam. 54.010 - 54.015 mm (2.12637

- 2.12657 in) Diam. 54.065 mm (2.12853 in)

Cylinder "B" Diam. 54.015 - 54.025 mm (2.12657

- 2.12696 in) Diam. 54.075 mm (2.12893 in)

Selecting the piston

Measure the piston diameter with a micrometer, 11.5 mm from the piston bottom edge.

RX SX 125 Engine

ENG - 111
