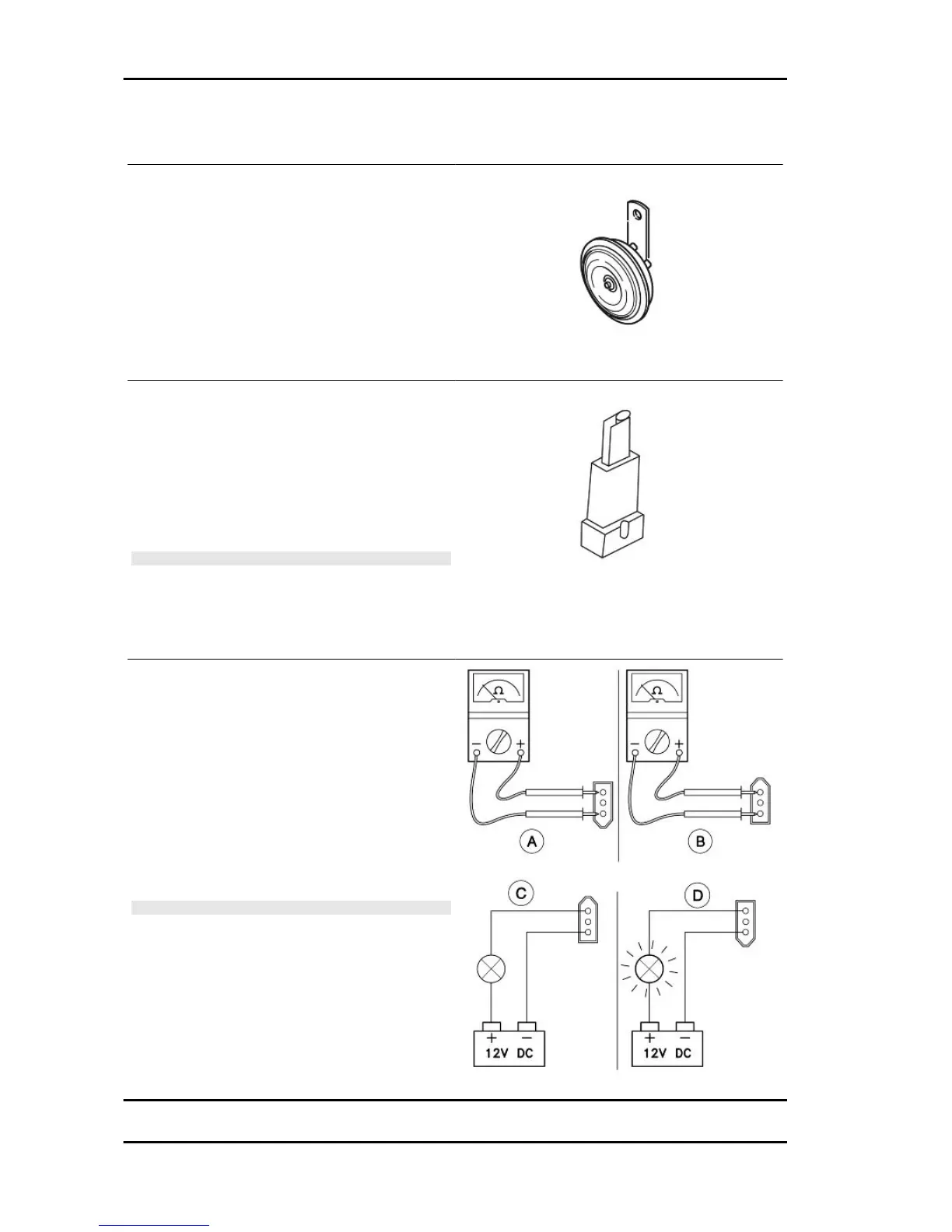

Horn control

Testing voltage: 13 V (nominal 12 V)

Input: < 3.5 A

With a tester in ohmmeter function check the con-

tinuity of the contacts as per the diagram below.

Diode check

•

Disconnect the two-way connector

(white).

To check diodes operation:

CAUTION

UPON REFITTING, MAKE SURE THE ELECTRIC CONNEC-

TOR IS CORRECTLY COUPLED.

Test (C): the bulb does not turn on.

Test (D): the bulb turns on.

With a tester (in diode test function) check the val-

ues between the two male terminals inside the

diode as indicated in the figure.

Correct value (measurement A): 0 - 1 Ohm.

Correct value (measurement B):infinite.

If the tester cannot be used as a diode test tool,

supply 12 V voltage, interpose a 12 V - 2 W bulb

on the positive lead and connect the diode as in-

dicated in the figure.

CAUTION

DO NOT USE BULBS OVER 2 W BULB OR THE DIODE MAY

BE DAMAGED.

Electrical system RX SX 125

ELE SYS - 60
