APRILIA RX 125 Service Station Manual

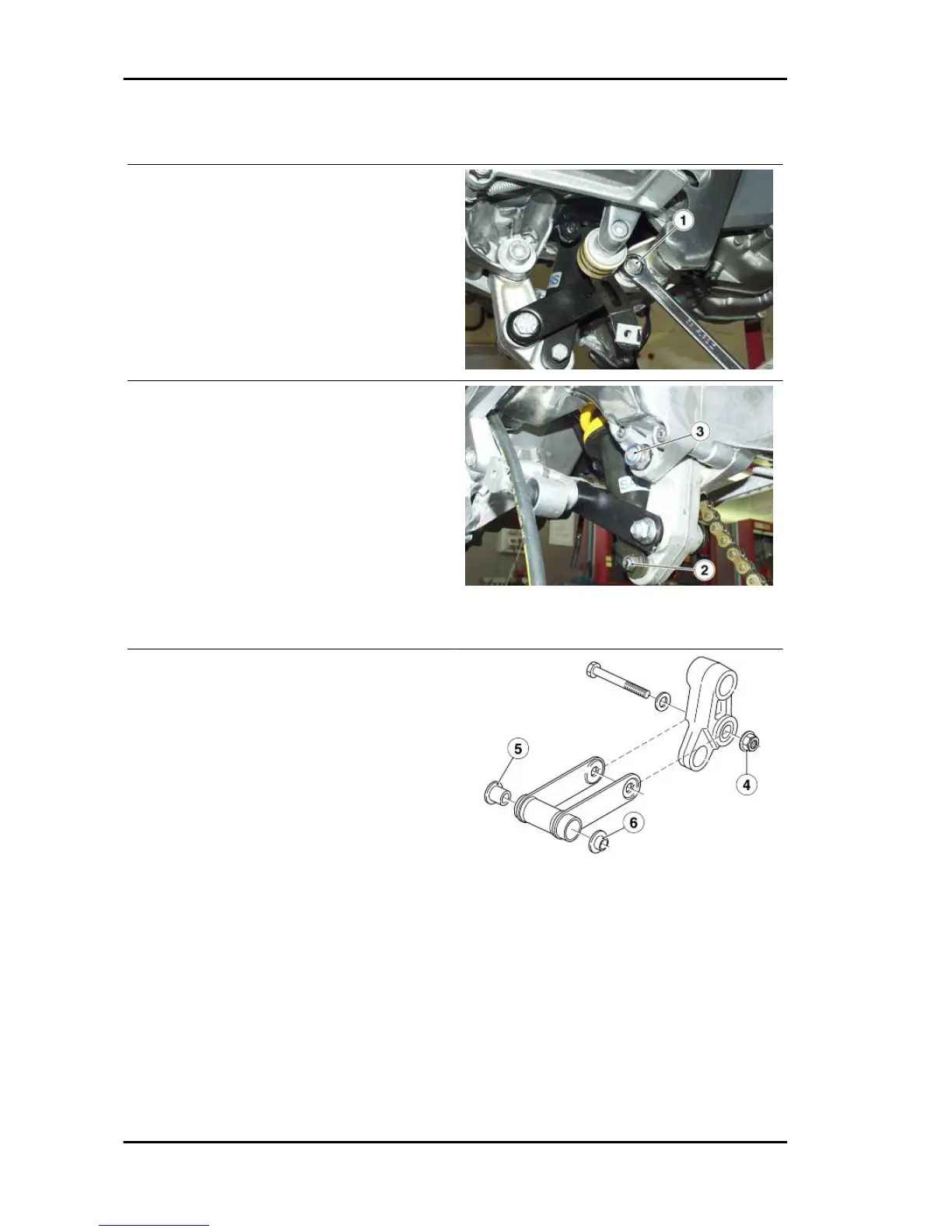

Removing
•
Working from the right side, unscrew
and remove the nut (1).
•
Slide off the screw from the opposite
side and collect the washer.
•
Working from the left side, unscrew
and remove the nut (2).
•
Slide off the screw from the opposite
side.
•
Working from the left side, unscrew
and remove the nut (3).
•
Slide off the screw from the opposite
side and collect the washer.
•
Remove the complete suspension
connecting rod assembly unit.
CONNECTING ROD ASSEMBLY REMOVAL
•
Remove the complete suspension
connecting rod assembly unit.
•
Unscrew and remove the nut (4).
•
Slide off the screw from the opposite
side and collect the washer.
•
Remove the single connecting rod.
•
Remove the right bushing (5) and the
left bushing (6) from the single con-
necting rod.
Suspensions RX SX 125
SUSP - 170

APRILIA RX 125 Specifications

General

Displacement	124.2 cc
Max Power	11 kW (15 HP) @ 10, 700 rpm
Torque	11.2 Nm @ 8, 000 rpm
Fuel System	Electronic fuel injection
Transmission	6-speed
Rear Suspension	Monoshock
Front Brake	Single disc, 300 mm
Rear Brake	Single disc, 220 mm
Seat Height	905 mm
Weight	134 kg (dry)
Engine Type	Single cylinder, 4-stroke
Cooling System	Liquid-cooled
Front Suspension	Upside-down fork
ABS	Yes
