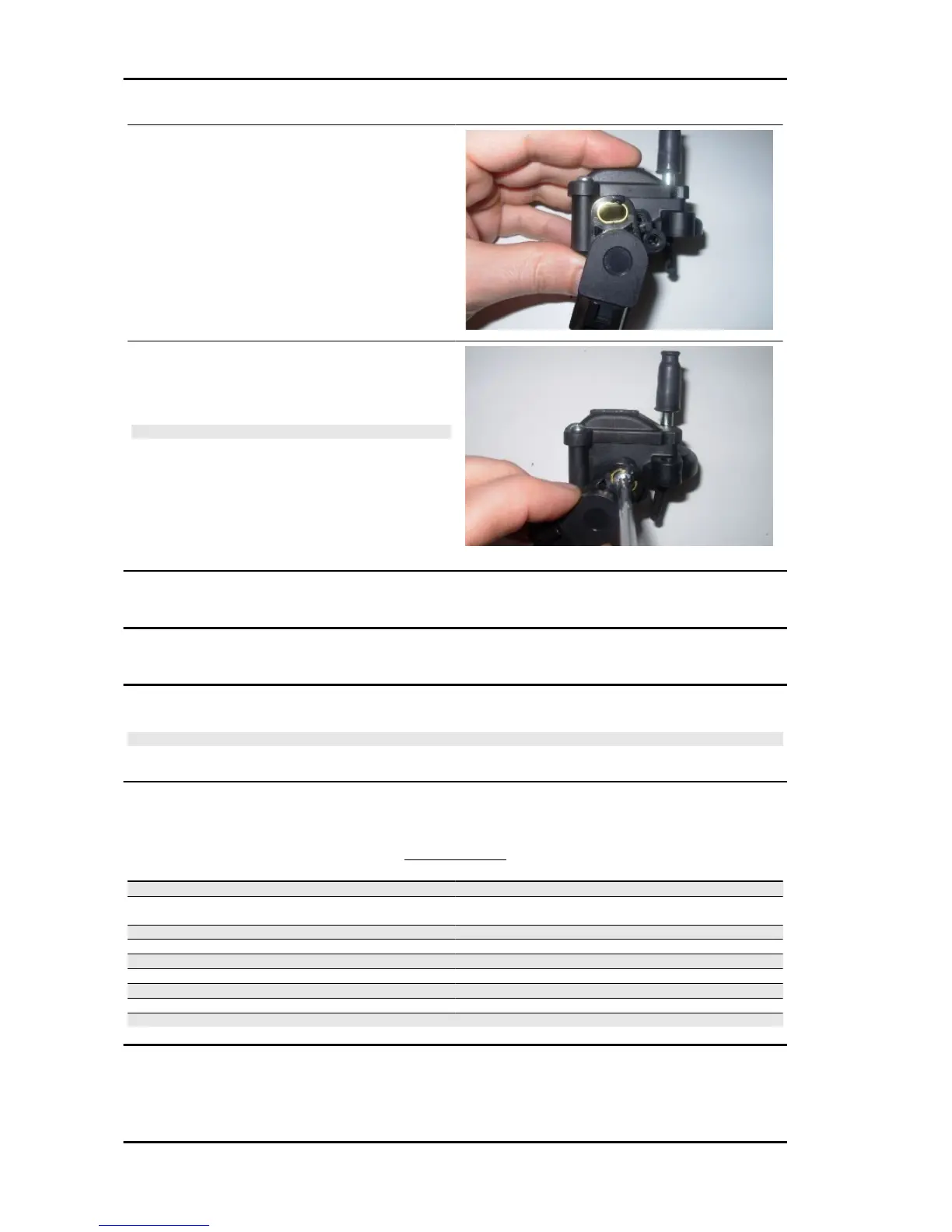

Assemble the sensor with the fixing

eyelet to the left compared with the cor-

rect fixing position.

•

Turn the sensor clockwise until the

eyelets are aligned and fix the position

with the corresponding screw.

CAUTION

ONCE THIS OPERATION IS FINISHED, THE MAXIMUM

AND MINIMUM POSITIONS OF THE THROTTLE VALVE

MUST BE OBTAINED BY MEANS OF THE RELEVANT

FUNCTION OF THE AXONE DIAGNOSIS TOOL.

Ignition

Axone use for ignition system

ignition

CAUTION

UNLESS OTHERWISE SPECIFIED, THE VALUES INDICATED ARE ONLY EXAMPLES.

ISO screen page

ISO DISPLAY

Specification

Desc./Quantity

Mapping SX125_28

Map reading active 1 / 2 indicates whether the control unit is standard (1) or it has

been modified for racing on tracks (2)

Hardware code APG01

Serial number 12

Central unit hardware version B00

Software version APG1_210

Type-approval Code AC29

Engine type RS125

Reprogramming or production date 22 / 11 / 2006

Power supply RX SX 125

P SUPP - 136
