Barco DP2K SLP Series User Manual

10. Scheimpflug

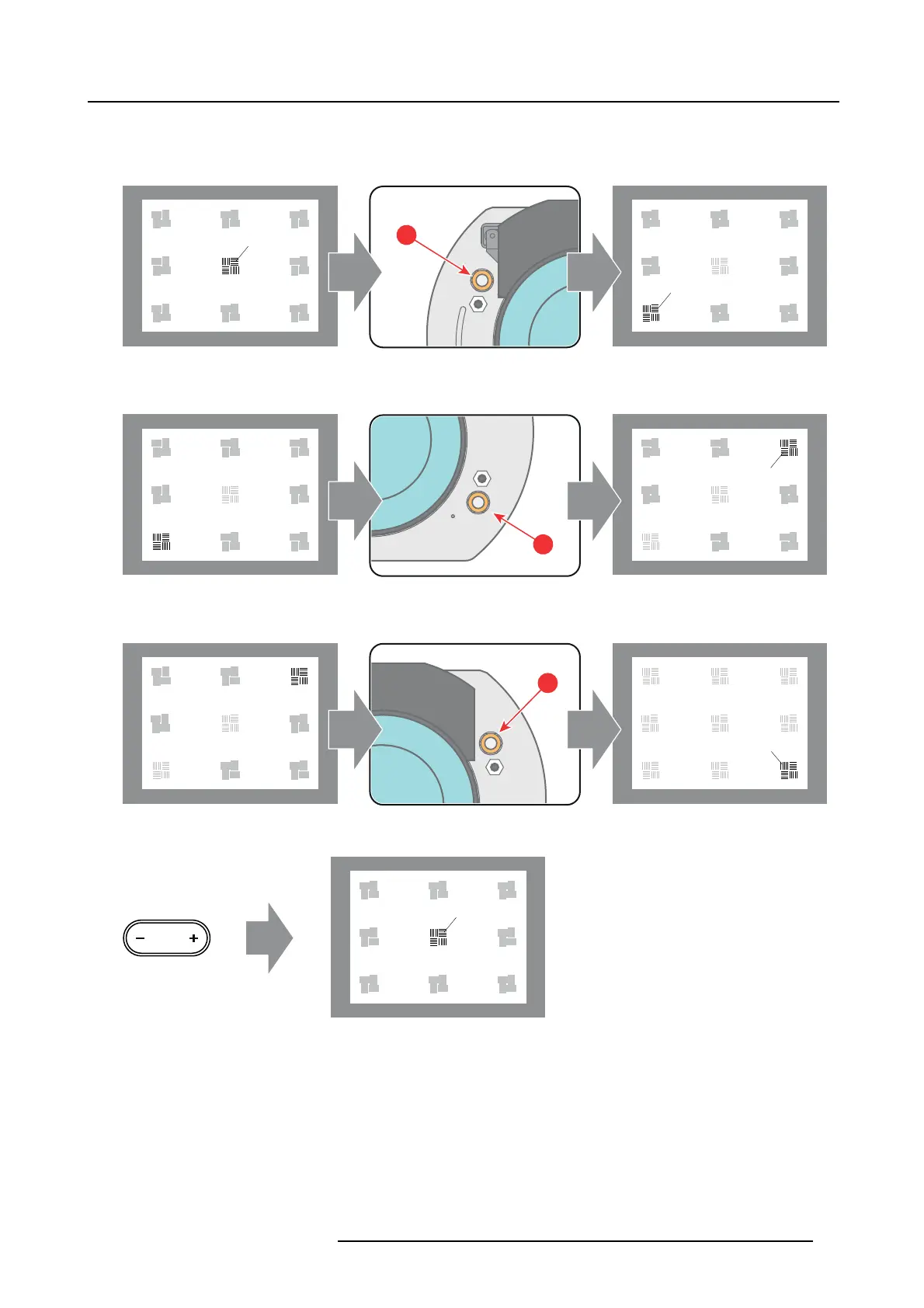

Scheimpflug adjustment steps:
1. Sharpen the image at the bottom left corner of the s creen by turning the upper left Scheimpflug adjustment nu t (reference 1
image 10-6). As a result th e focus in the center will fade a b it but that’s normal.
F
F
1
Image 10-6
2. Sharpen the image at the top right corner of the screen by turning the lower right Sc heimpflug adjustment nut (reference 3 im -
age 10-7).
F
3
Image 10-7
3. Sharpen the image at the bottom right corner o f the screen b
y turning the upper right Scheimpflug adjustment nut (reference 2
image 10-7).
F
2
Image 10-8
4. Optimize the focus of the projected image in the center of the screen using the motorized focus control (Local Keypad).
F
FOCUS
Image 10-9
5. Repeat from step 1 until the p rojected focus pattern is as sharp as possible in the center, left, right, top and bottom of the screen.
6. Proceed with the procedure "Fixation of the Lens Holder front plate", page 98.
R5906847 DP2K SLP SERIES 02/06/2017
97
