Brother MFC-7365DN Service Manual

3-33
Confidential
9.3 Back Cover
(1) Open the back cover.
(2) Push the both side ribs of the back cover to the direction of the arrow 2, and release the
boss of the outer chute ASSY.
(3) Release the boss of the main body while pulling the back cover to the direction of the
arrow 3a, and remove the back cover.

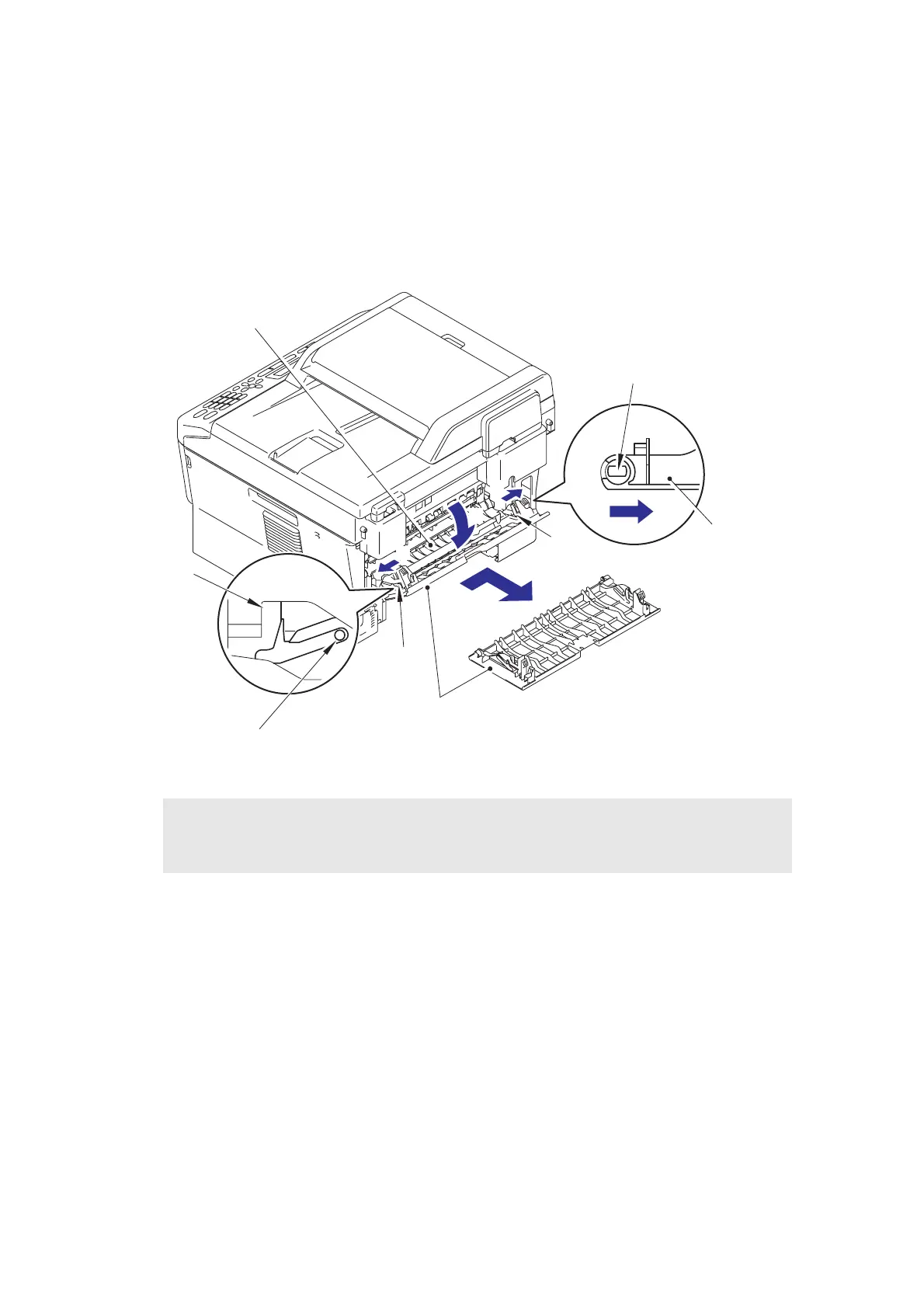

Fig. 3-14
Assembling Note:
• When assembling the back cover, close the back cover with aligning the boss of the
outer chute ASSY with the groove of both side ribs of the back cover.
Outer chute ASSY
Boss (main body)
Back cover
Back cover
Rib
Rib
Rib
Boss (outer chute ASSY)
3b
3a
2
2
1

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
