Brother MFC-7365DN Service Manual

2-10
Confidential

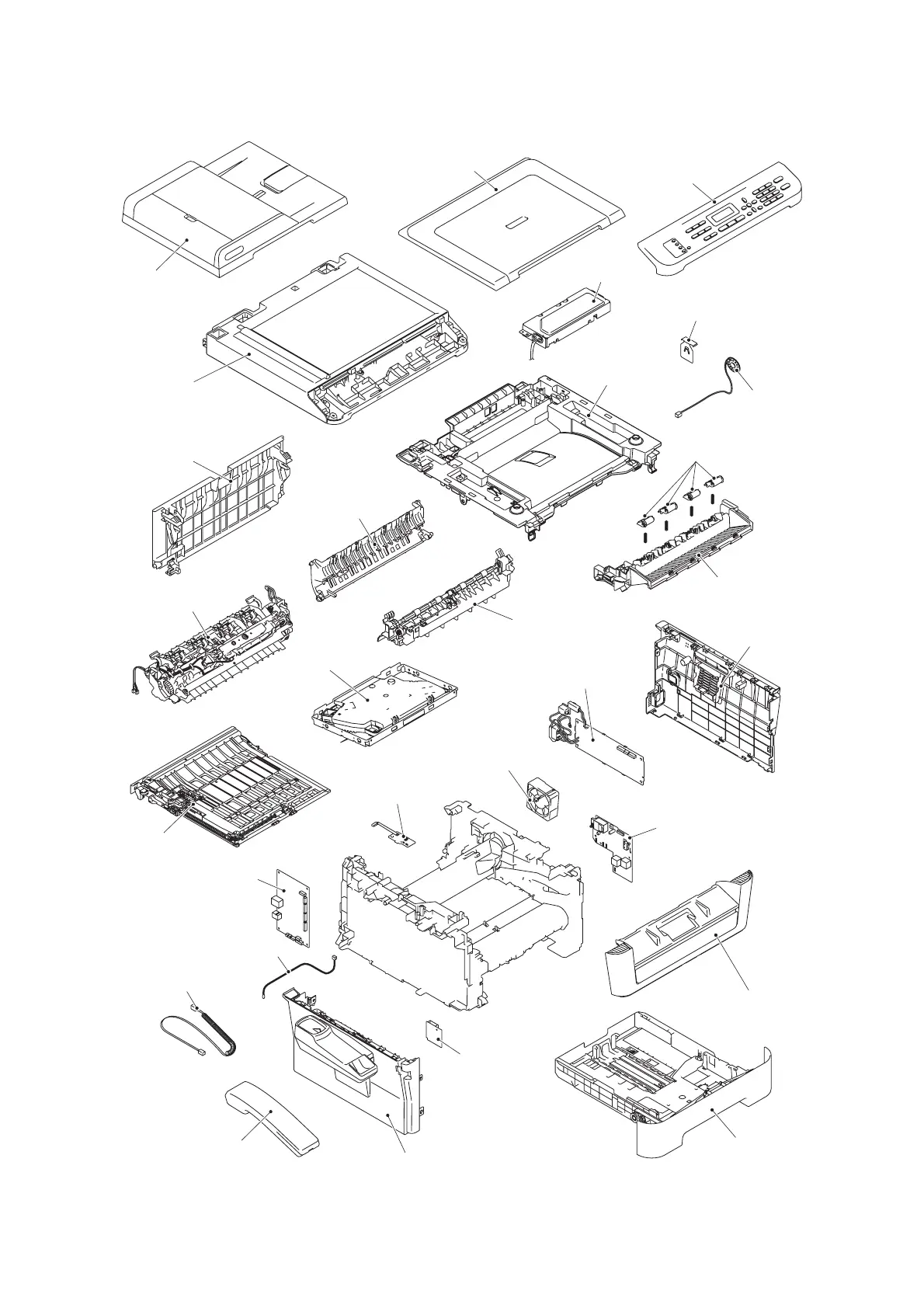

2.5 Components
Fig. 2-7
Back cover
Outer chute
ASSY
Main PCB ASSY
Internal
temperature sensor
Laser unit
Pinch rollers ASSY
Speaker hold spring
Panel unit
Speaker unit
Low voltage power
supply PCB ASSY
Fuser fan
Fuser unit
High voltage power
supply PCB ASSY
Paper tray
Front cover ASSY
Duplex tray
Side cover L
Side cover R
Inner chute ASSY
Fuser cover
Handset curled
cord ASSY
ADF unit
Document scanner unit
Joint cover
NCU ASSY
Document cover ASSY
Handset ASSY
Wireless LAN
PCB ASSY
New toner sensor
PCB ASSY

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
