Brother MFC-7365DN Service Manual

3-63
Confidential
9.12 Pull Arm L / Pull Arm R / Pull Arm Spring

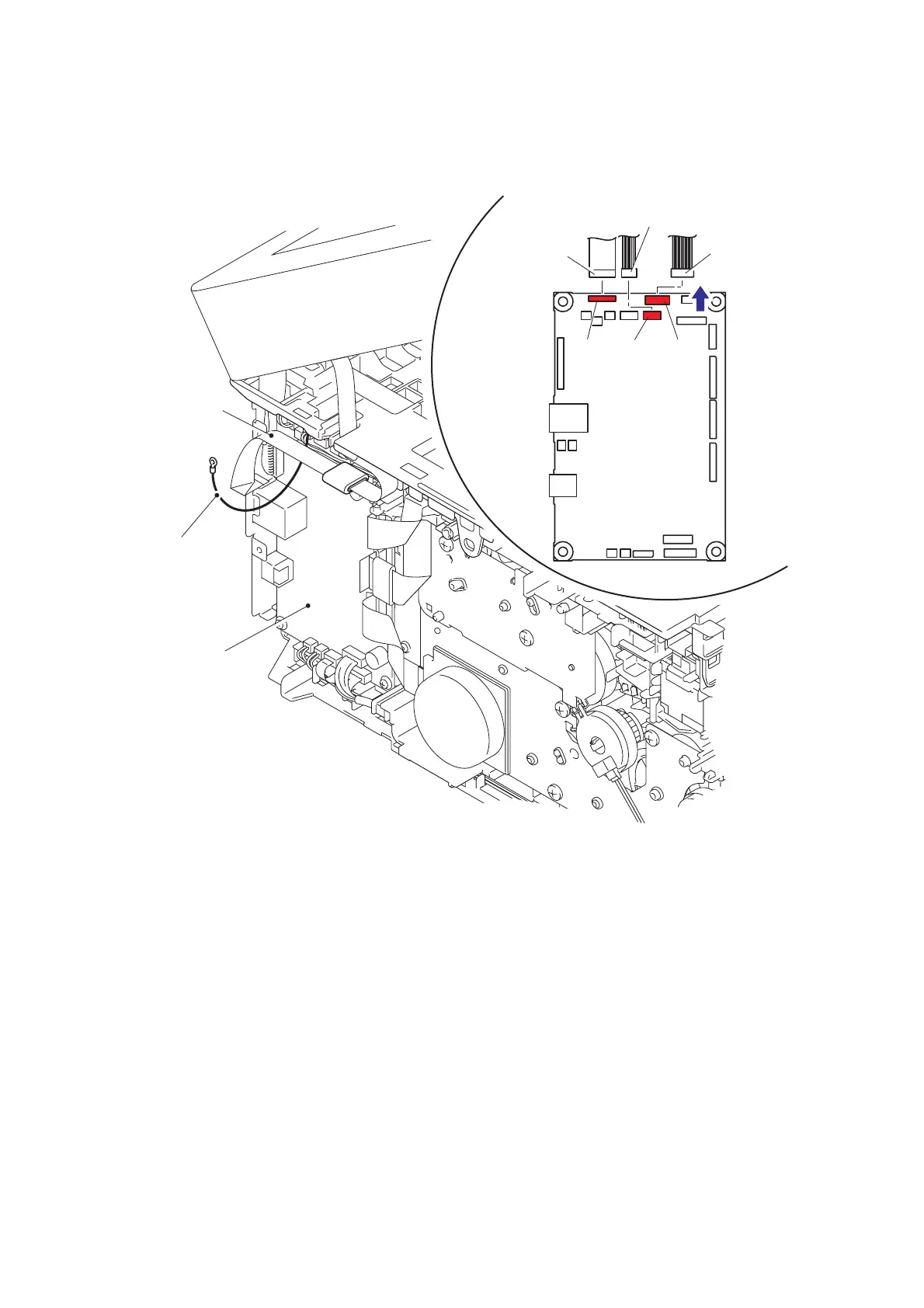

(1) Disconnect the two connectors and the CIS flat cable from the main PCB ASSY.
Fig. 3-48
Harness routing: Refer to “17. Panel unit”, “18. Document scanner unit”.
Main PCB ASSY
CN26CN5 CN4
FB FG harness
Main PCB ASSY
CIS flat cable
Connector
(FB motor harness ASSY)
CIS flat cable
Connector
(Panel harness
ASSY)

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
