Brother MFC-7365DN Service Manual

5-12
Confidential
1.4.7 Operational check of LCD (Function code 12)
<Function>
This function allows you to check whether the LCD on the control panel works normally.
<Operating Procedure>
(1) Press the 1 and 2 buttons in this order in the initial state of the maintenance mode.
In the case of the model without the numeric keys; Press the or button. The
“MAINTENANCE 12” appears on the LCD. Then press the OK button. The LCD shows.
(2) Each time you press the Start button, the LCD cycles through the displays as shown
below.
(3) When the Stop/Exit button is pressed regardless of the display, the machine cancels the
operation, beeps for one second and returns to the initial state of the maintenance mode.

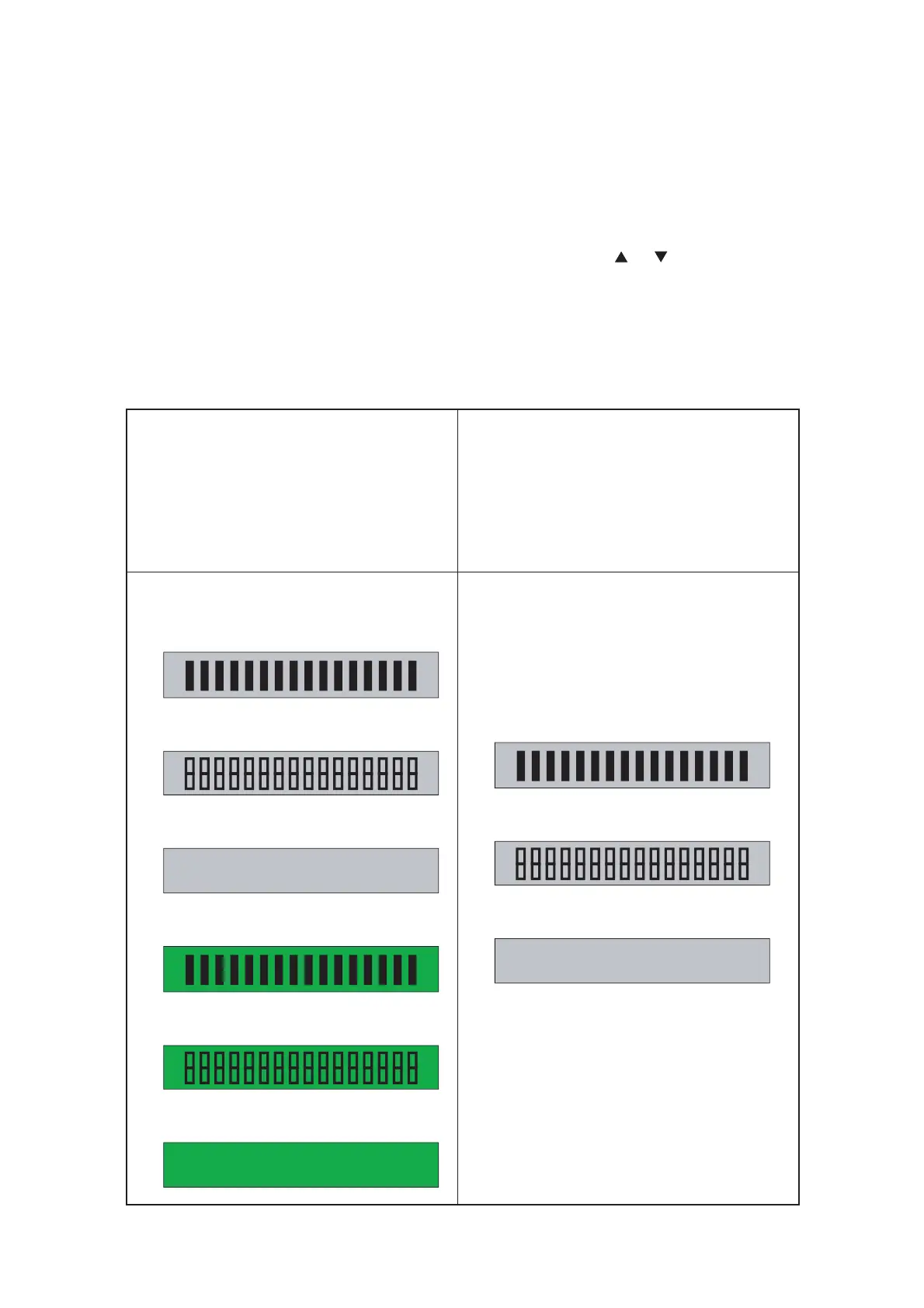

Fig. 5-4
<For models with Backlight>
(For all countries)
MFC-7860DN / 7860DW
DCP-7055W / 7065DN / 7070DW
HL-2280DW
(Only for China)
MFC-7360 / 7470D
DCP-7055 / 7057 / 7060D
Display 1
ModeKey LED: Constantly blinking (only MFC)
<For models without Backlight>
(For all countries)
DCP-7057E / 7057W
MFC-7360N / 7362N / 7365DN / 7460DN
(Except for China)
DCP-7055 / 7057 / 7060D
MFC-7360 / 7470D
ModeKey LED: Constantly blinking (only MFC)
When the Start button is pressed,
the LED display cycles in the following order:
Display 1
→
Display 2
→
Display 3
→
Display 1 • • •
Press the Stop button to stop cycling.
Backlight : Not lit
Display 2
Backlight : Not lit
Display 3
Backlight : Not lit
Display 1
Backlight : Not lit
Display 2
Backlight : Not lit
Display 3
Backlight : Not lit
Display 4
Backlight : Lit
Display 5
Backlight : Lit
Display 6
Backlight : Lit

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
