Brother MFC-7365DN Service Manual

3-95
Confidential
9.28 Pick-up Roller Holder ASSY
(1) Turn the machine upside down.
(2) Push the link arm to the direction of the arrow 2, and turn the pick-up roller holder ASSY
to release the boss.
(3) Slide the pick-up roller holder ASSY to the direction of the arrow 3 to release it from the
shaft, and remove the pick-up roller holder ASSY from the main body.

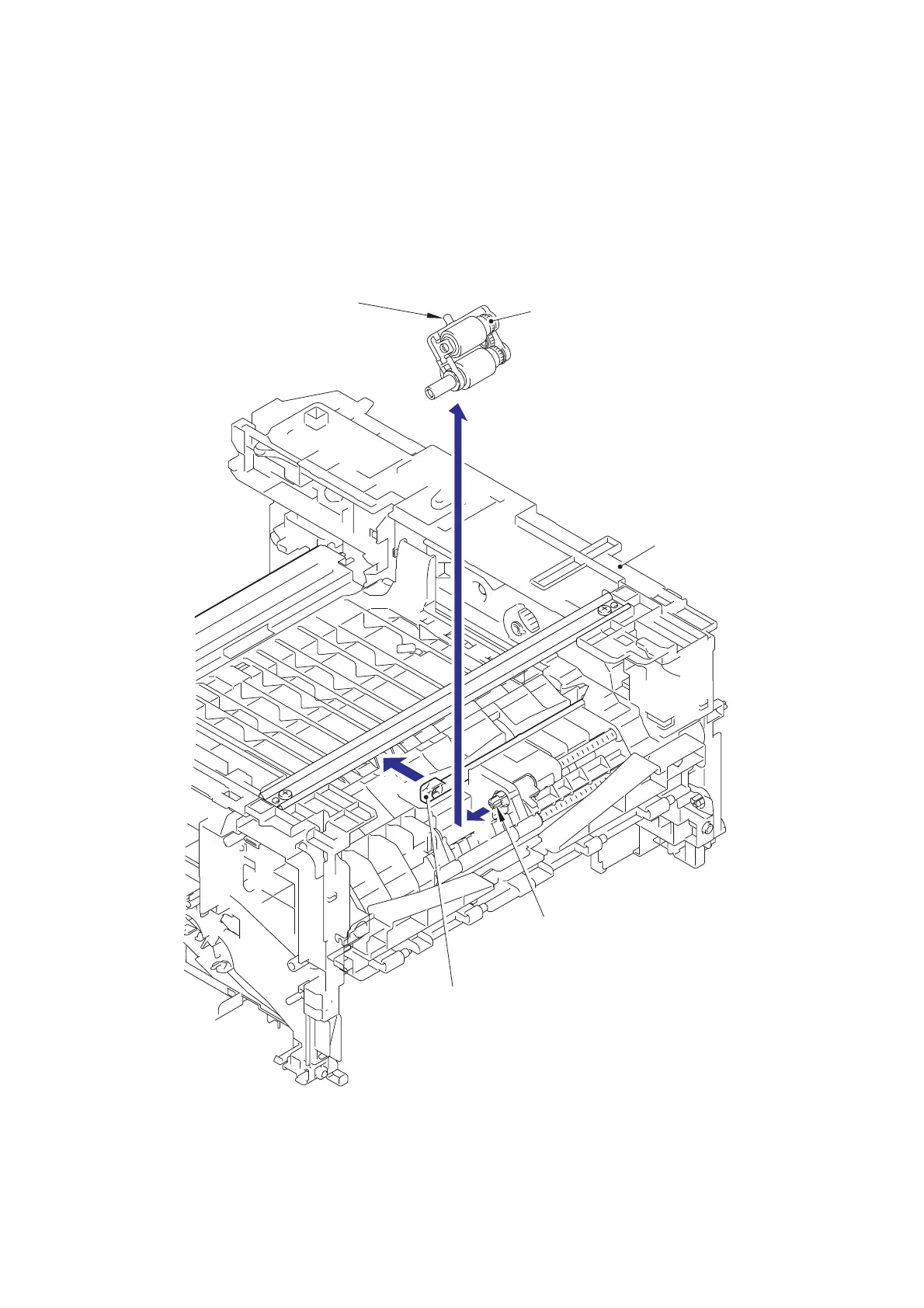

Fig. 3-84
3
2
Pick-up roller holder ASSY
Boss
Main body
Link arm
Shaft

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
