Brother MFC-7365DN Service Manual

3-44
Confidential
9.10 ADF Unit (For models with ADF)
9.10.1 ADF Unit
(1) Remove the taptite cup S M3x6 SR screw, and remove the ADF FG harness and the FB
FG harness.
(2) Disconnect the two connectors from the main PCB ASSY.

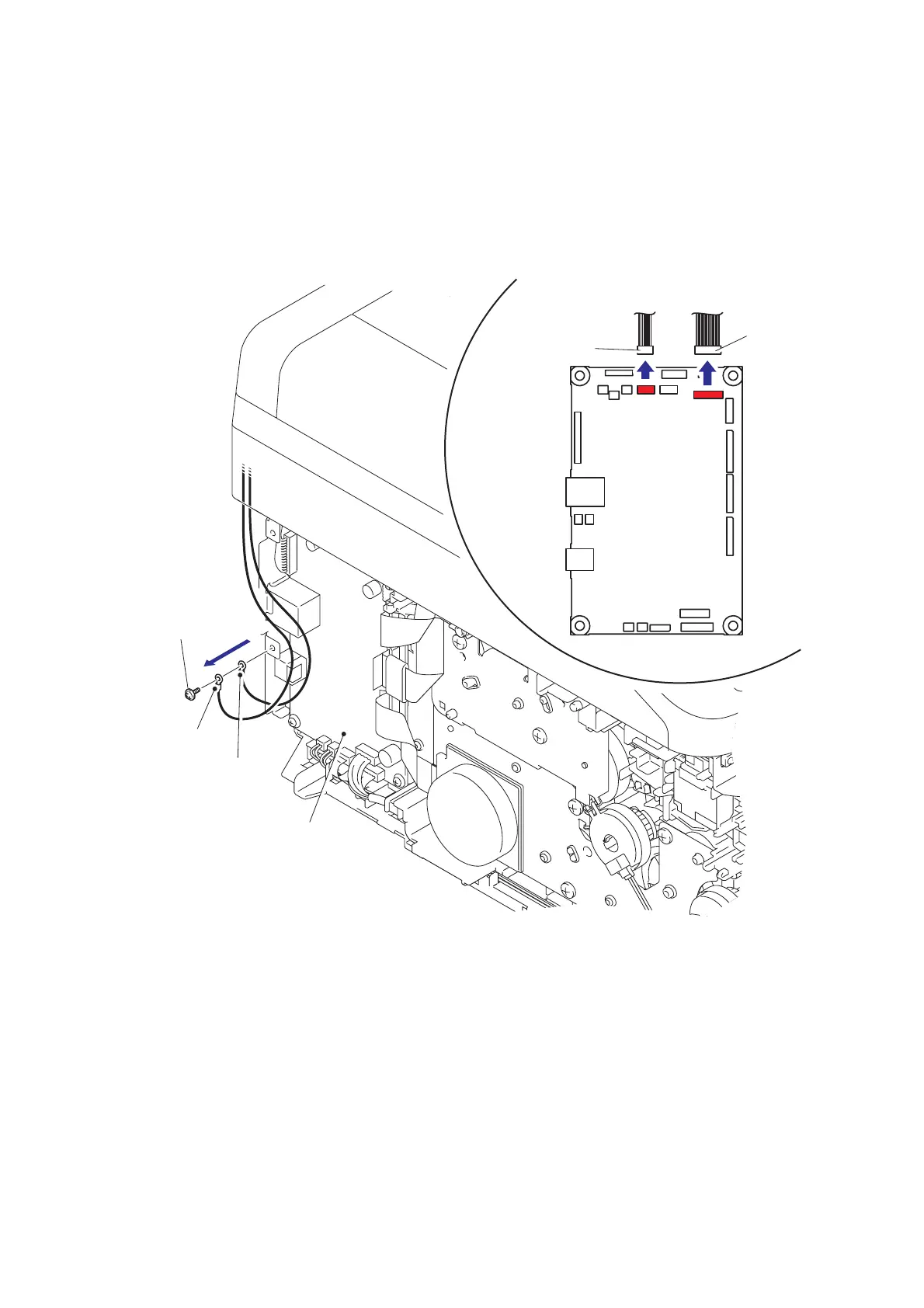

Fig. 3-26
Main PCB ASSY
CN6
CN24
ADF FG harness
FB FG harness
Taptite cup S M3x6 SR
Main PCB ASSY
Connector
(ADF motor
harness ASSY)
Connector
(ADF sensor
harness unit)

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
