Brother MFC-7365DN Service Manual

3-36
Confidential
9.6 Inner Chute ASSY, Eject Pinch Roller R ASSY and Eject Pinch Roller L ASSY
(1) Pull down both side green envelope levers of the fuser unit.
(2) Remove the two taptite bind B M4x12 screws to remove the inner chute ASSY.

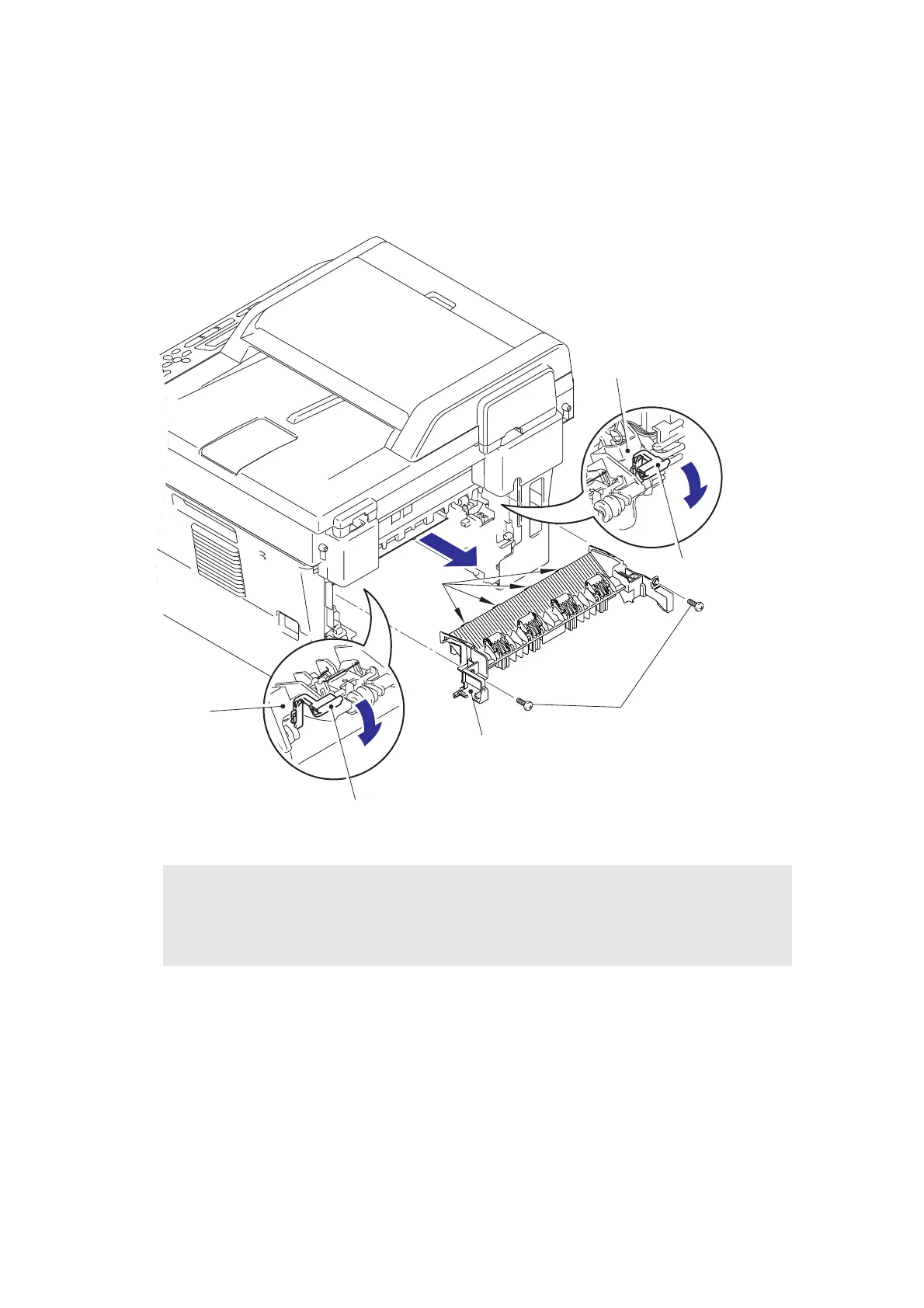

Fig. 3-17
Assembling Note:
• When assembling the inner chute ASSY, align the hooks of the inner chute ASSY with
the positioning holes of the joint cover ASSY.
• Pull up both side green levers of the fuser unit after assembling the inner chute ASSY.
Green envelope lever L
Fuser unit
Fuser unit
Green envelope lever R
Inner chute ASSY
Taptite bind B M4x12
Hooks

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
