Brother MFC-7365DN Service Manual

2-2
Confidential
1.2 Initial Check
Check the following items before attempting to repair the machine.
■ Operating environment
(1) Put your machine on a flat, stable surface such as a desk that is free of vibration and
shocks.
(2) Use the machine in a well-ventilated room; use the machine within the following ranges
of temperature and humidity: temperature between 10 °C and 32.5 °C (50 °F to 90.5 °F),
and the relative humidity is maintained between 20 % and 80 %.
(3) Ensure the machine is not exposed to direct sunlight, excessive heat, moisture, or dust.
(4) When you move the machine, grasp the side handholds that are under the scanner.
DO NOT carry the machine by holding it at the bottom.

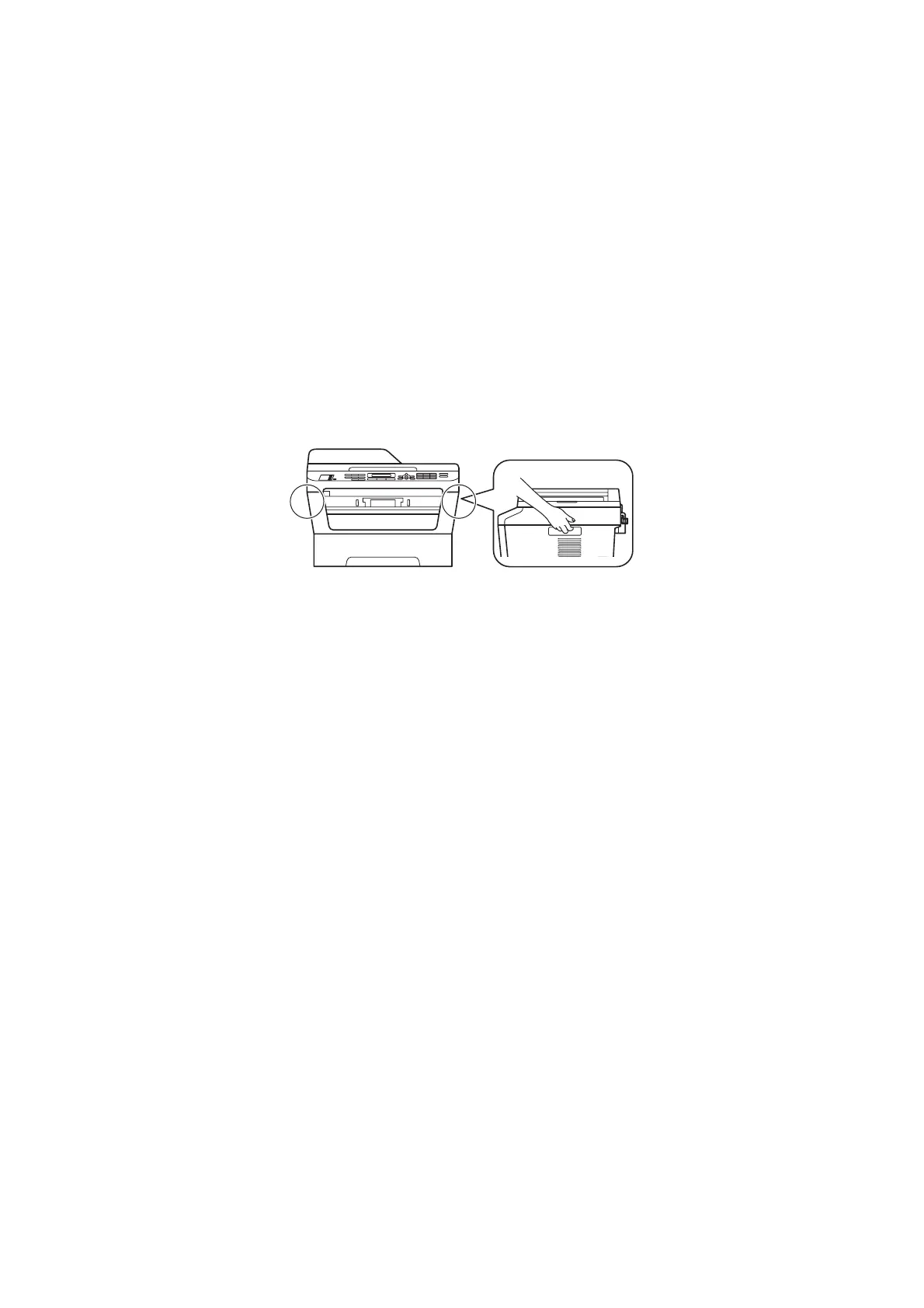

Fig. 2-1
■ Power Supply
(1) The AC input power supply described on the rating plate of the machine should be within
±10 % of the rated voltage.
(2) The AC input power supply is within the regulated value.
(3) The cables and harnesses are connected correctly.
(4) The fuses are not blown.
■ Paper
(1) A recommended type of paper is being used. (Refer to User's guide.)
(2) The paper is not damp.
(3) The paper is not short-grained paper or acid paper.
■ Consumable Parts
(1) The drum unit (including the toner cartridge) is installed correctly.

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
