Brother MFC-7365DN Service Manual

3-70
Confidential
9.14.4 LCD

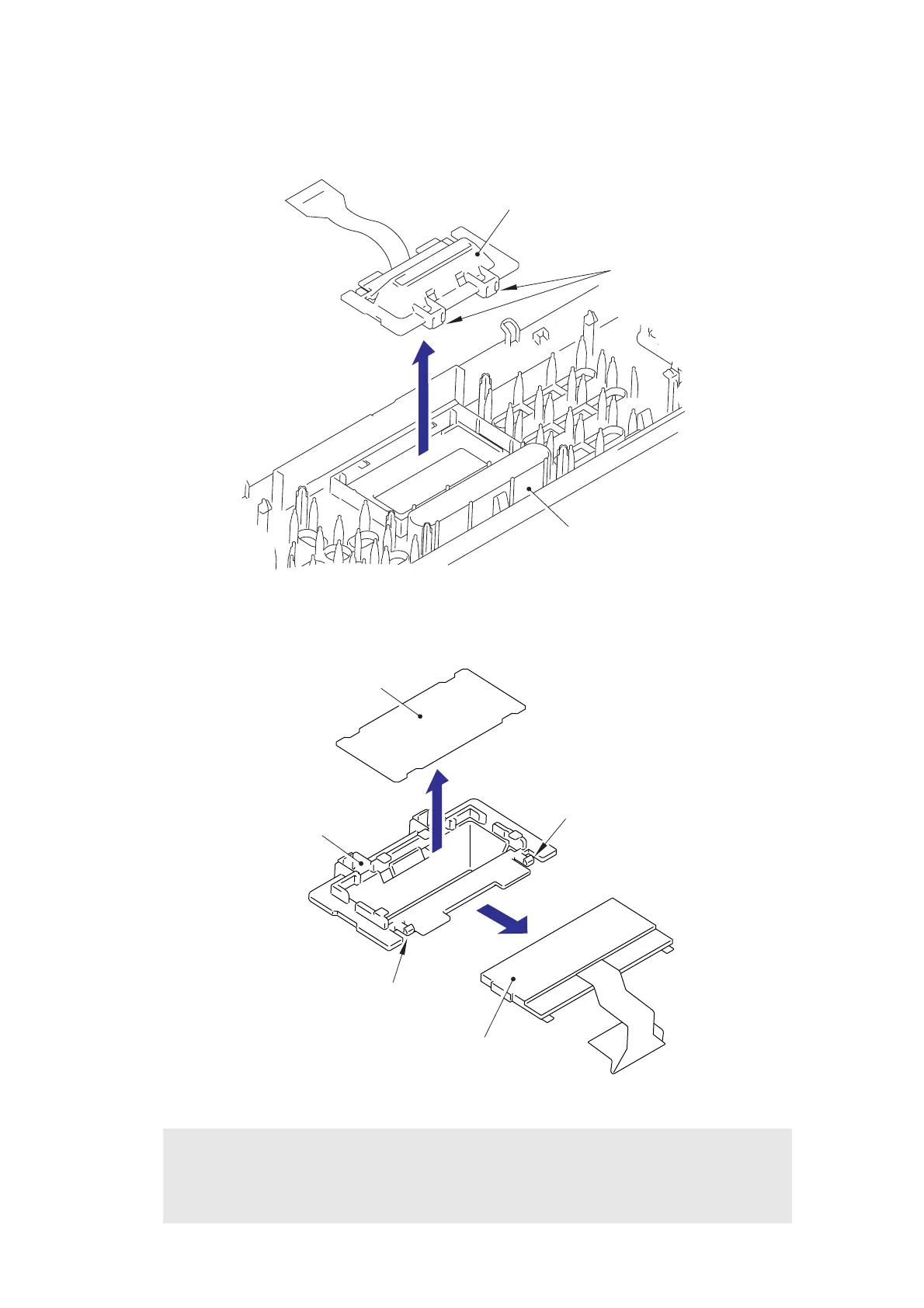

(1) Release the hooks to remove the backlight guide from the panel cover.
Fig. 3-55
(2) Release the hooks to remove the LCD and the diffusion film from the backlight guide.
Fig. 3-56
Note:
• When the hooks are deformed, the LCD may not be attached to the backlight guide, or
the backlight guide may not be attached to the panel cover. Do not allow the hooks to
be warped when releasing them.
Backlight guide
Panel cover
Hooks
LCD
Diffusion film
Backlight guide
Hook
Hook

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
