Brother MFC-7365DN Service Manual

App. 4-1
Confidential
APPENDIX 4 HOW TO MAKE PROTECTIVE MATERIAL OF DRUM UNIT
Make the protective material of drum unit by the following procedures, and use it at the time of packing.
<Procedure>
(1) Pass the Paper strip through the hole of Protective material. (The white surface of Paper
strip is the upper side.)
(2) Pass the end of Paper strip through the hole of Paper strip, and then pull the end of
Paper strip to the direction of the arrow.

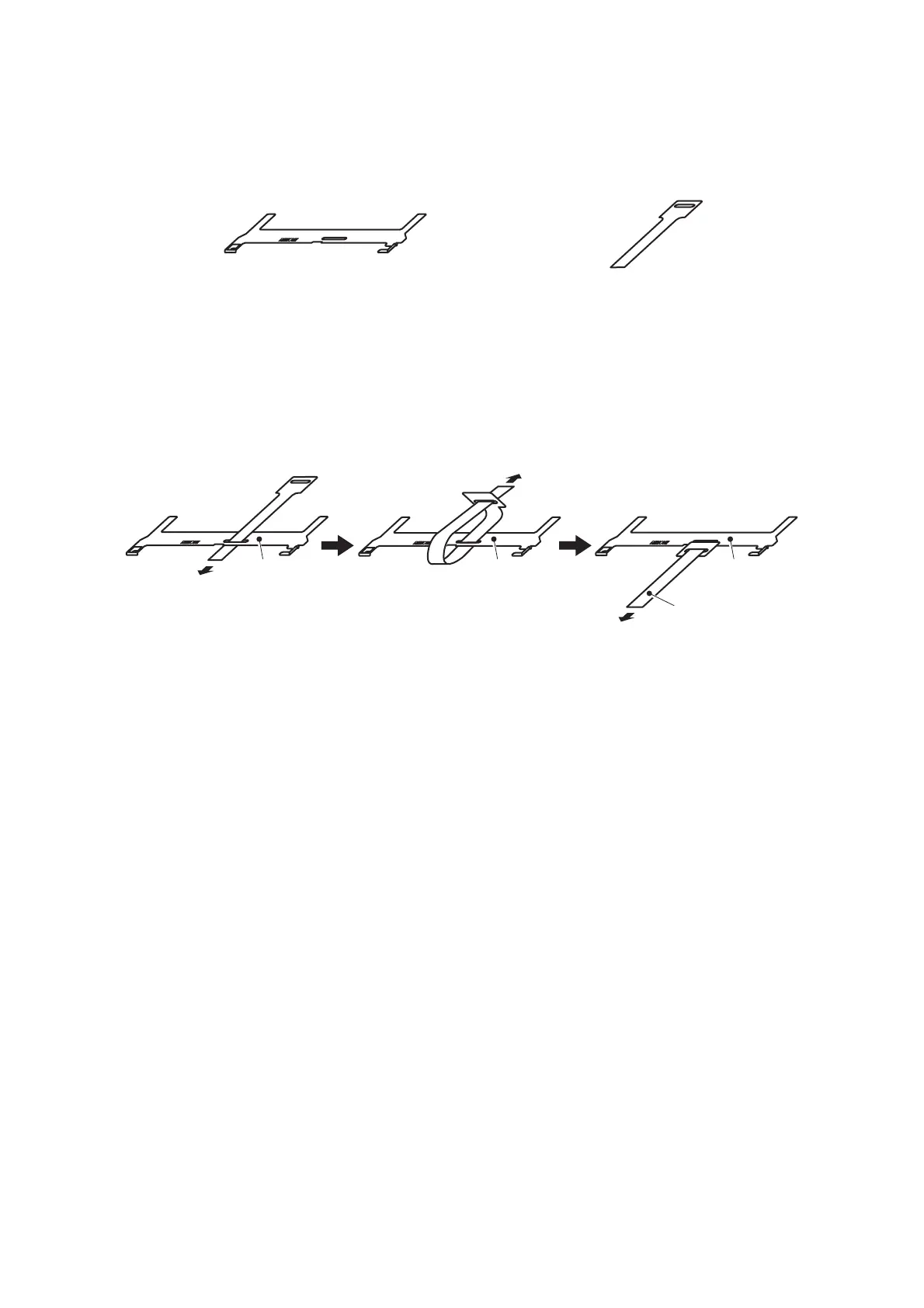

Fig. APP. 4-1
Protective material Paper strip
Paper strip
Protective
material
Protective
material
Protective
material

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
