Brother MFC-7365DN Service Manual

3-88
Confidential

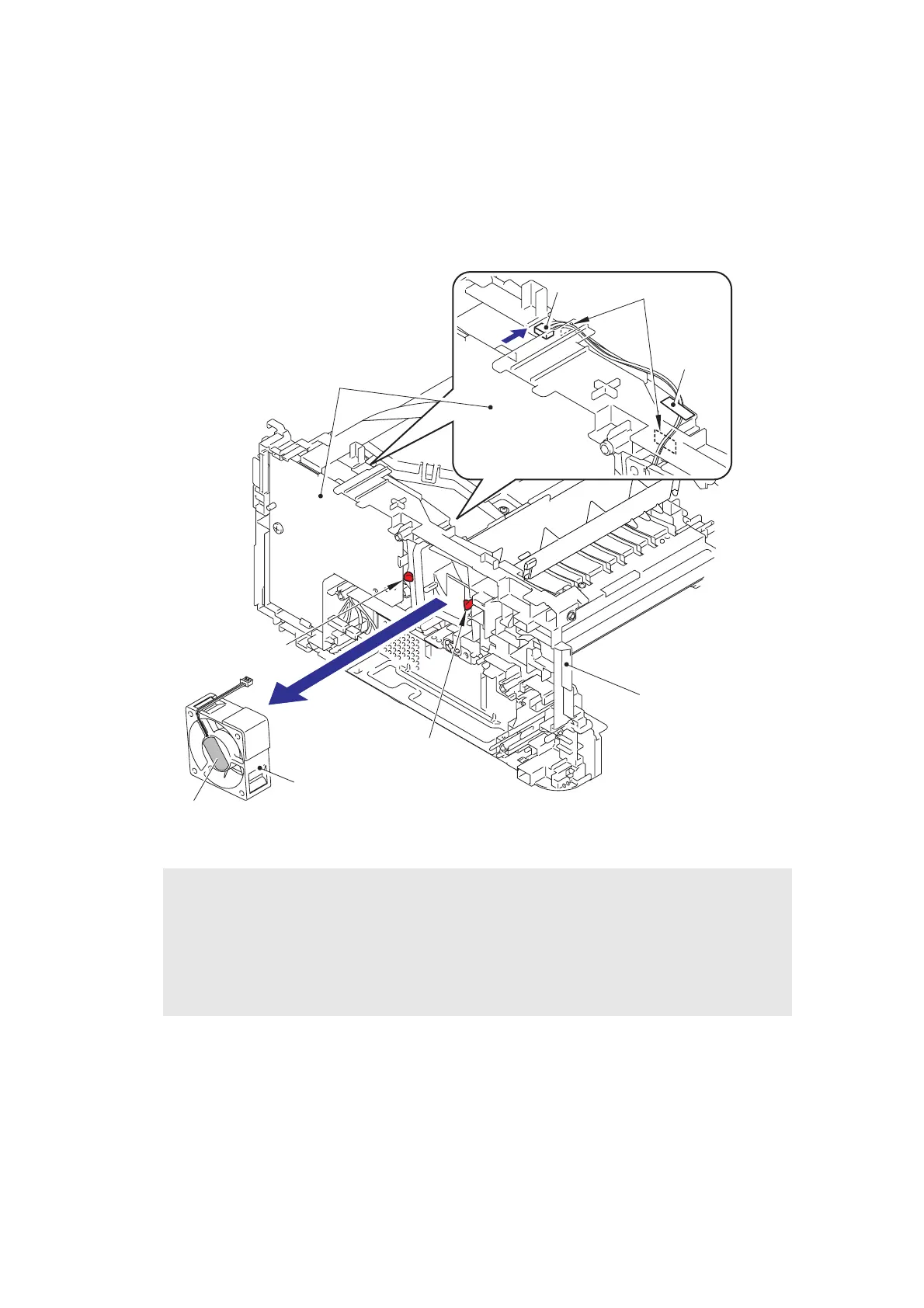

9.22 Fuser Fan
(1) Disconnect the connector of the fuser fan from the high voltage power supply PCB
ASSY.
(2) Remove the harness of the fuser fan from the guides of the main frame R ASSY.
(3) Release the hooks to remove the fuser fan.
Fig. 3-76
Assembling Note:
• When assembling the fan motor 60 ASSY, attach the fuser fan after inserting the
harness into the guides of the main frame R ASSY.
• When assembling the fuser fan, place it so that the attached label faces outwards.
• When assembling the fuser fan, secure the harness to the position of figure above with
the tape.
Main frame R ASSY
Fan motor 60 ASSY
Label
Guides
Hook
Hook
Connector
Tape
High voltage power supply PCB ASSY

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
