Brother MFC-7365DN Service Manual

3-85
Confidential
9.21 Low voltage power supply PCB ASSY
(1) Remove the FG spring front chute from the LV shield plate cover and the front chute
ASSY.
(2) Release the hook part of the FG wire under R from the LV shield plate cover.
(3) Remove the three taptite bind B M4x12 screws, the screw pan (S/P washer) M3.5x6
screw and the screw pan (S/P washer) M3x12DB screw to remove the LV shield plate
cover.

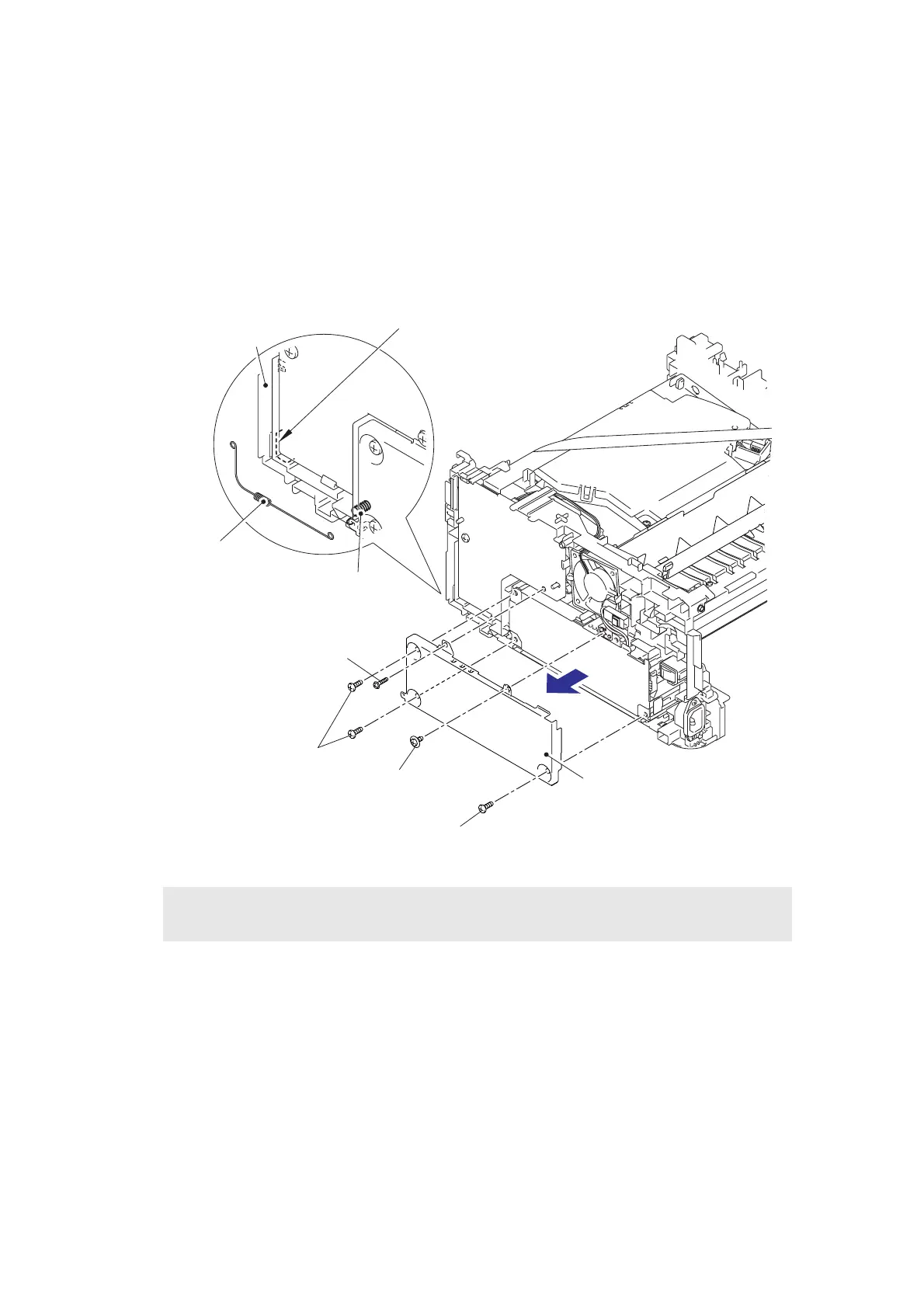

Fig. 3-72
Assembling Note:
• Hang the FG spring front chute on the guide of the main frame R ASSY.
Taptite bind B M4x12
FG wire under R
Taptite bind B M4x12
Screw pan (S/P washer) M3.5x6
Screw pan (S/P washer) M3x12DB
FG spring front chute
LV shield plate cover
Guide
Main frame R ASSY

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
