Brother MFC-7365DN Service Manual

3-38
Confidential

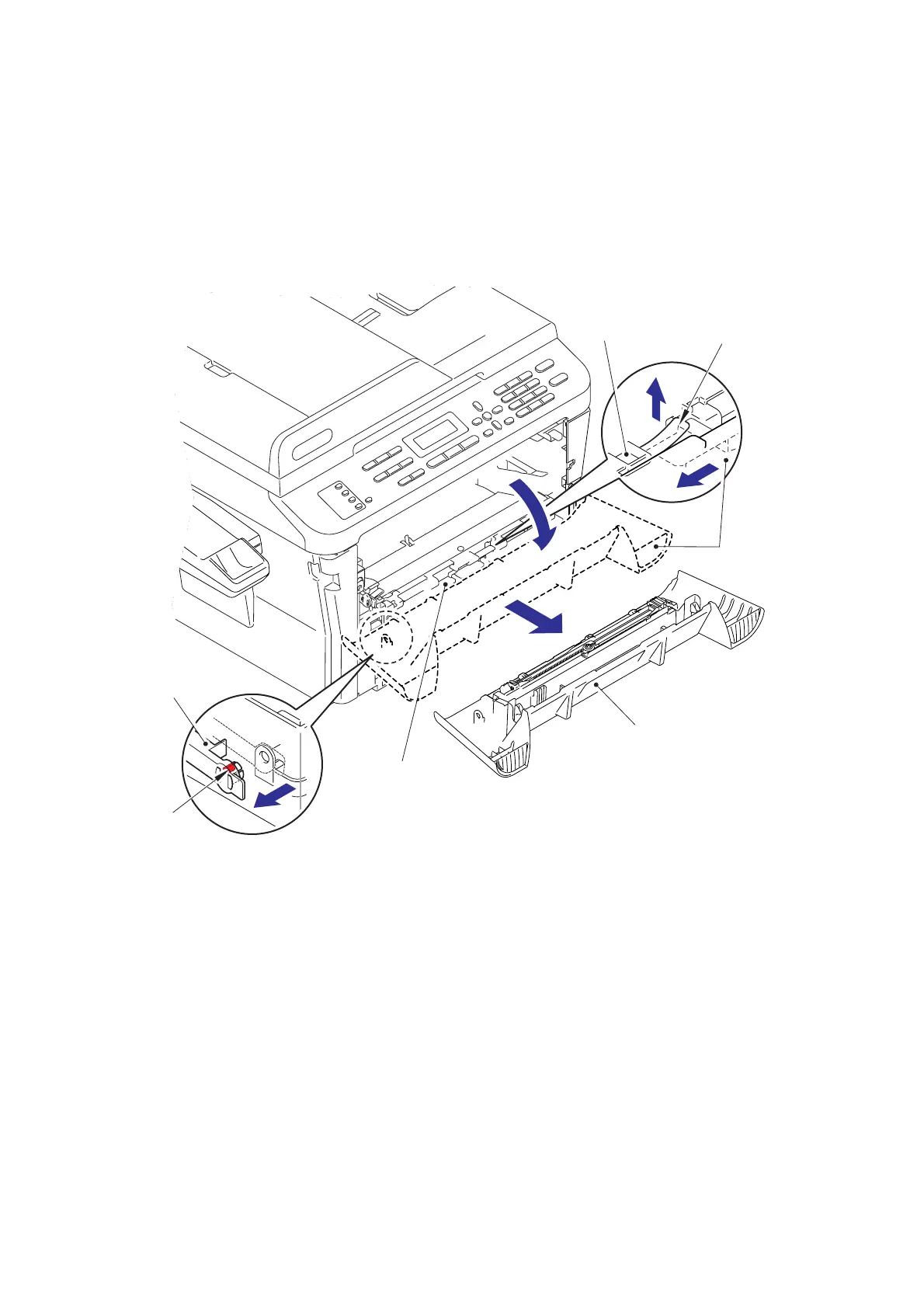

9.7 Front Cover ASSY, Support Flap 1
(1) Open the front cover ASSY.
(2) Release the hooks of the develop joint link to remove the develop joint link from the front
cover ASSY.
(3) Pull up the rib of the front chute ASSY to the direction of the arrow 3a, and slide the front
cover ASSY to the direction of the arrow 3b and 3c, and remove it.
Fig. 3-19
Front cover ASSY
Develop joint link
Front cover ASSY
Front chute
ASSY
Front chute ASSY
Rib
Hook
3c
3b
1
2
3a

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
