Brother MFC-7365DN Service Manual

3-58
Confidential
(3) Remove the three taptite cup B M3x10 screws, and remove the drive frame ASSY SX.
(4) Release the hook to remove the gear 43.
(5) Remove the screw pan (S/P washer) M3x6 screw, and remove the ADF motor.

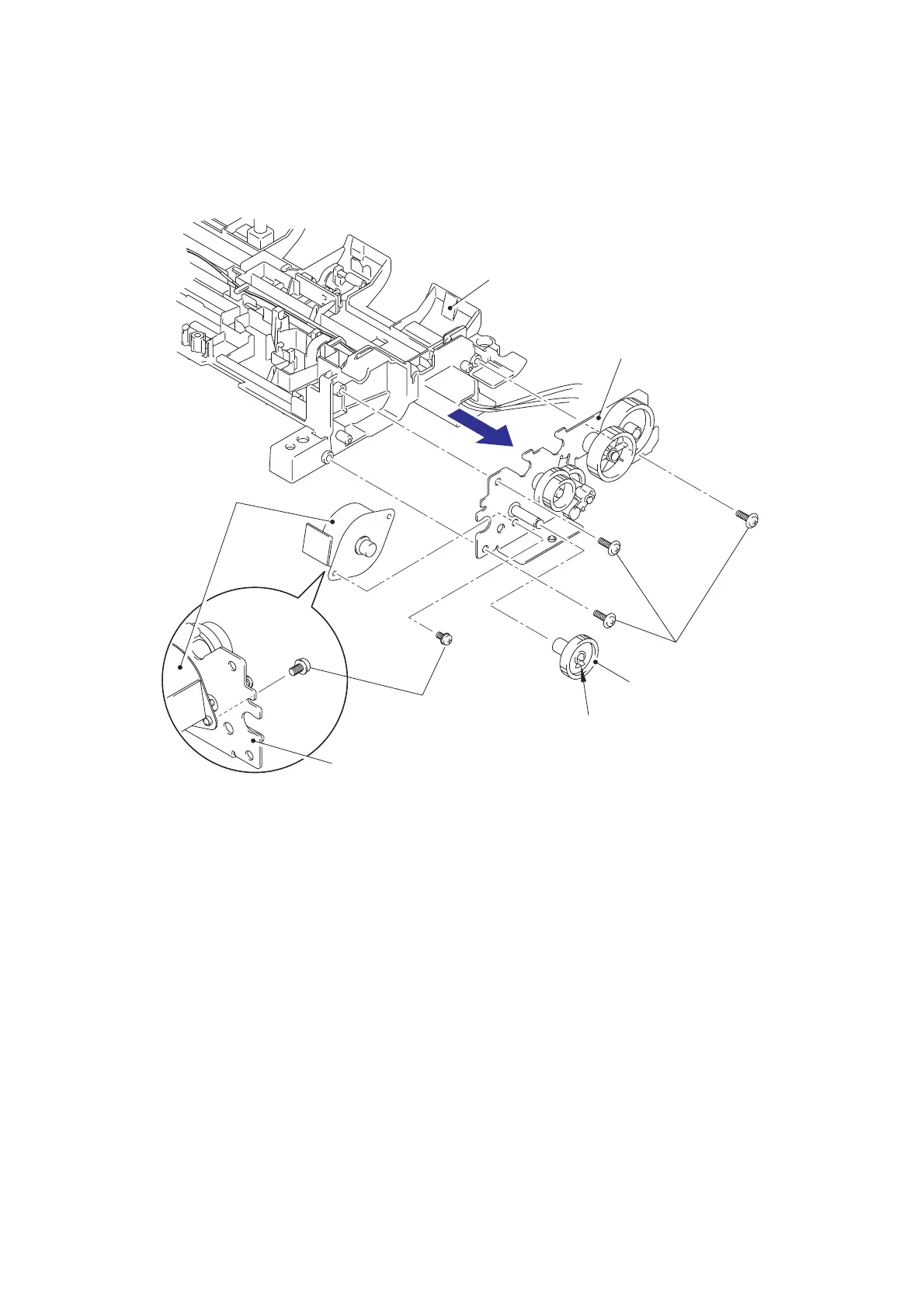

Fig. 3-43
Ejection roller bushing
Drive frame ASSY SX
Drive frame ASSY SX
Gear 43
Taptite cup B M3x10
Screw pan (S/P washer) M3x6
ADF motor
Hook

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
