Brother MFC-7365DN Service Manual

3-108
Confidential
(3) Release the hook to remove the paper eject sensor PCB ASSY from the pin of the main
frame L ASSY.
(4) Remove the harness of the paper eject sensor PCB ASSY from the guides of the main
frame L ASSY.
(5) Release the hooks to remove the back cover sensor.

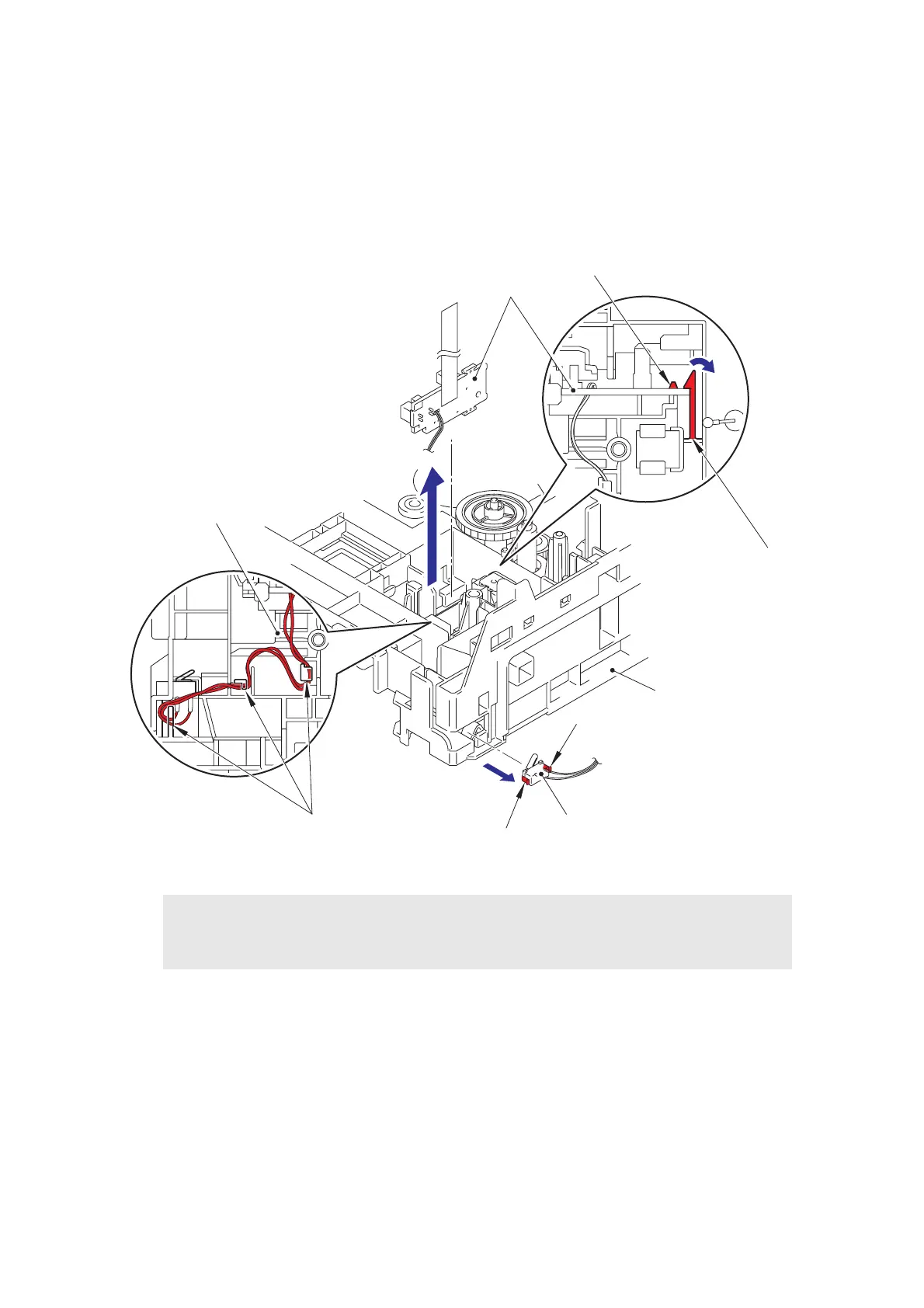

Fig. 3-97
Assembling Note:
• When assembling the back cover sensor, attach it while pushing the center of the rear
side of the back cover sensor.
Back cover sensor
Main frame L ASSY
Paper eject sensor PCB ASSY
Harness
Guides
Pin
Hook
Hook
Hook
