ENGINE CONTROLS 1F – 387
DAEWOO V–121 BL4
5. Disconnect the throttle cables by opening the
throttle and moving the cable through the release
slot.
6. Disconnect the vacuum hoses from the throttle
body.
7. Disconnect the Throttle Position (TP) sensor and
the Idle Air Control (IAC) valve connectors.
8. Disconnect the coolant hoses from the throttle
body.

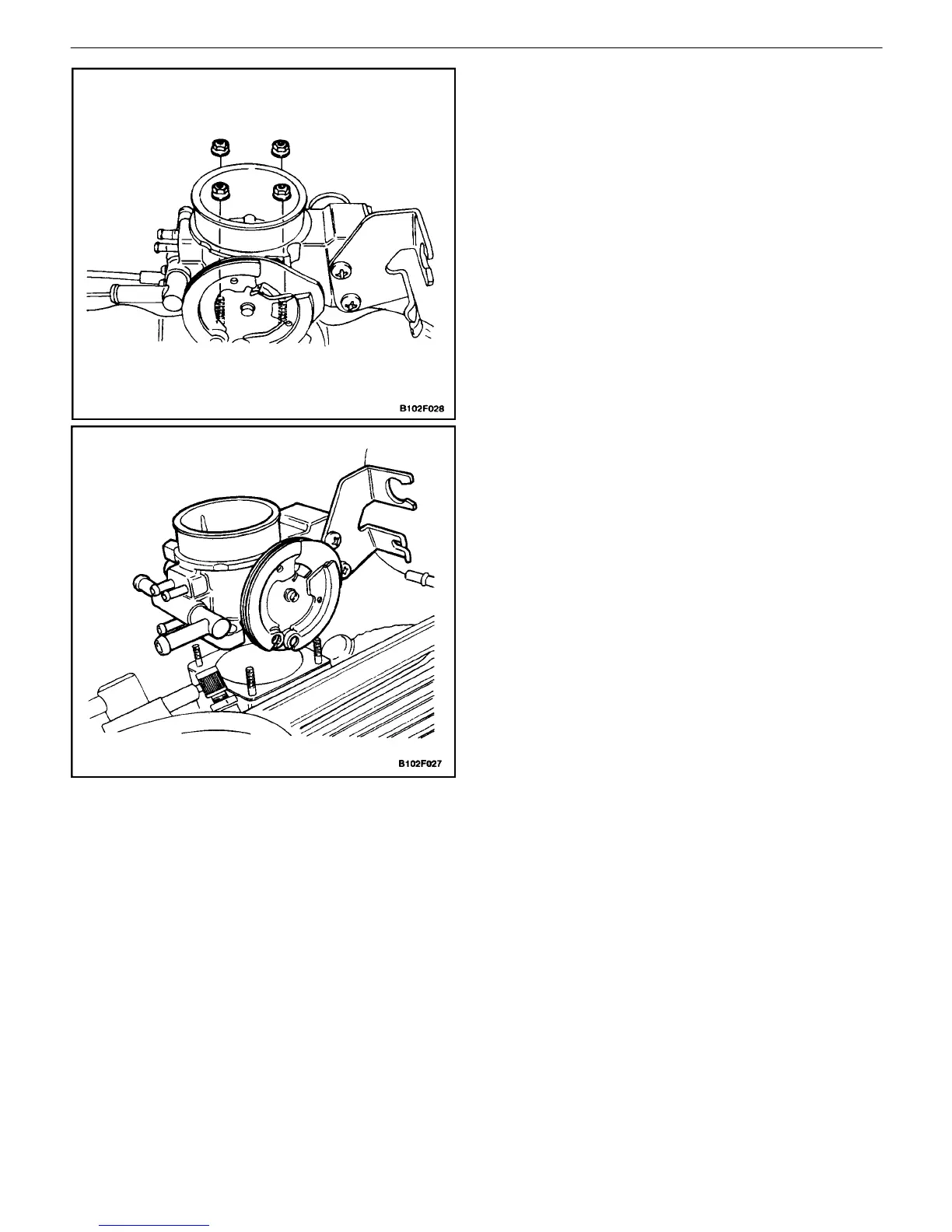

9. Remove the throttle body retaining nuts.
Notice : Cover the opening of the intake manifold after re-
moving the throttle body assembly. This will prevent any
objects or debris from entering the engine which may
cause damage.
10. Remove the throttle body and discard the gasket.
11. Remove the TP sensor. Refer to ” Throttle Position
Sensor ” in this section.
12. Remove the IAC valve. Refer to ”Idle Air Control
Valve”in this section.
To Next Page
