Daewoo NUBIRA - Oil Pan Cleaning

DOHC ENGINE MECHANICAL 1C – 37
DAEWOO V–121 BL4

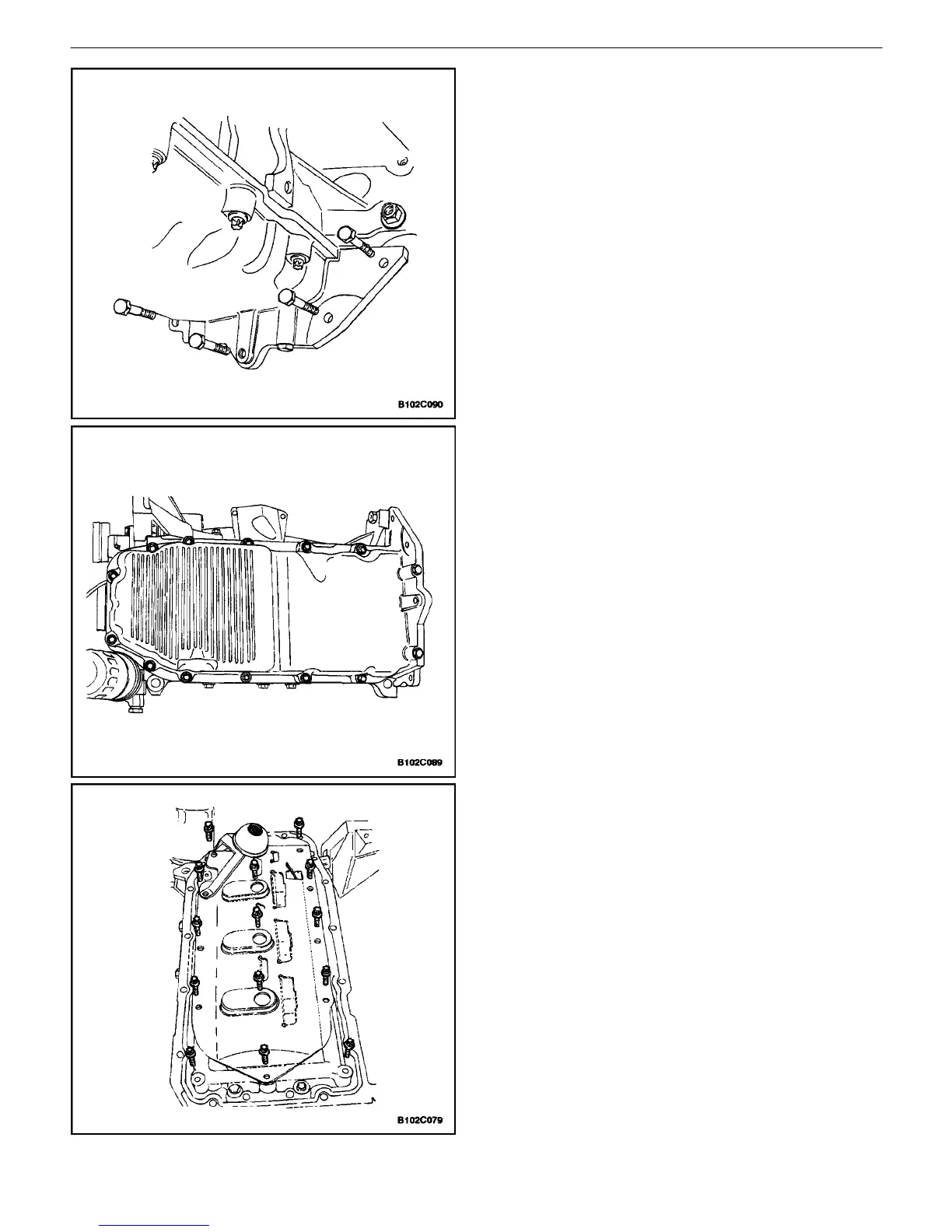

7. Remove the oil pan flange–to–transaxle retaining
bolts.
8. Remove the oil pan retaining bolts.
9. Remove the oil pan from the engine block.
Cleaning Procedure
1. Clean the oil pan sealing surface.
2. Clean the engine block sealing surface.
3. Clean the oil pan retaining bolts.
4. Clean the oil pan attaching bolt holes in the engine
block.
5. Clean the oil pan splash shield.
