CLUTCH 5C0 – 13
DAEWOO V–121 BL4
Installation Procedure
Tools Required
J–36547 Input Shaft Seal Installer
J–42474 Clutch Arbor

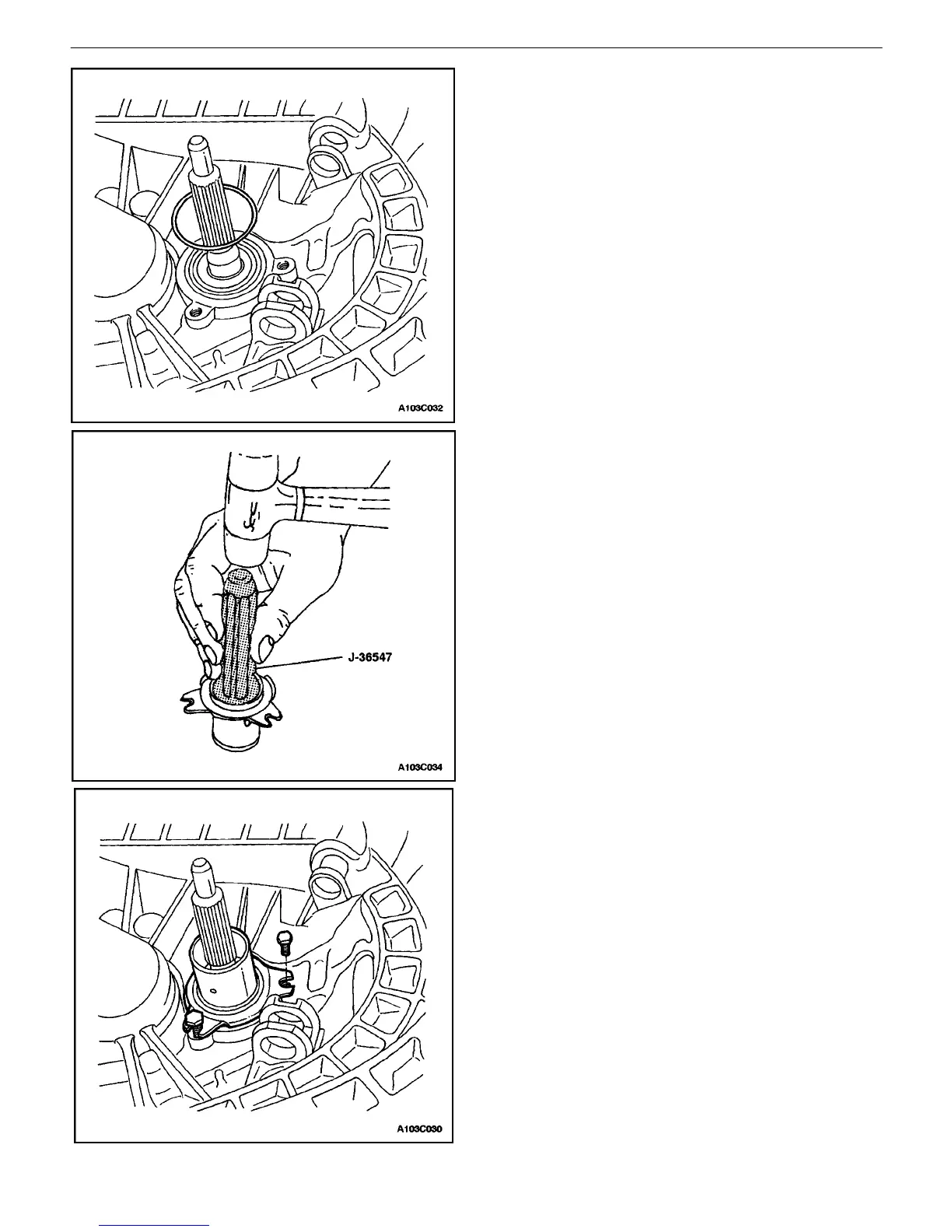

1. Install the O–ring into the groove in the case.
2. Install the input shaft seal into the release bearing
guide sleeve. Use input shaft seal installer J–36547
with a hammer.
3. Install the release bearing guide sleeve and the
bolts.
Tighten
Tighten the release bearing guide sleeve bolts to 5
NSm (45 lb–in).
4. Coat the sleeve surface with multi–purpose grease.
