REAR DISC BRAKES 4E – 7
DAEWOO V–121 BL4
Installation Procedure
1. Inspect the rotor. Refer to”Rotor Inspection”in this
section.

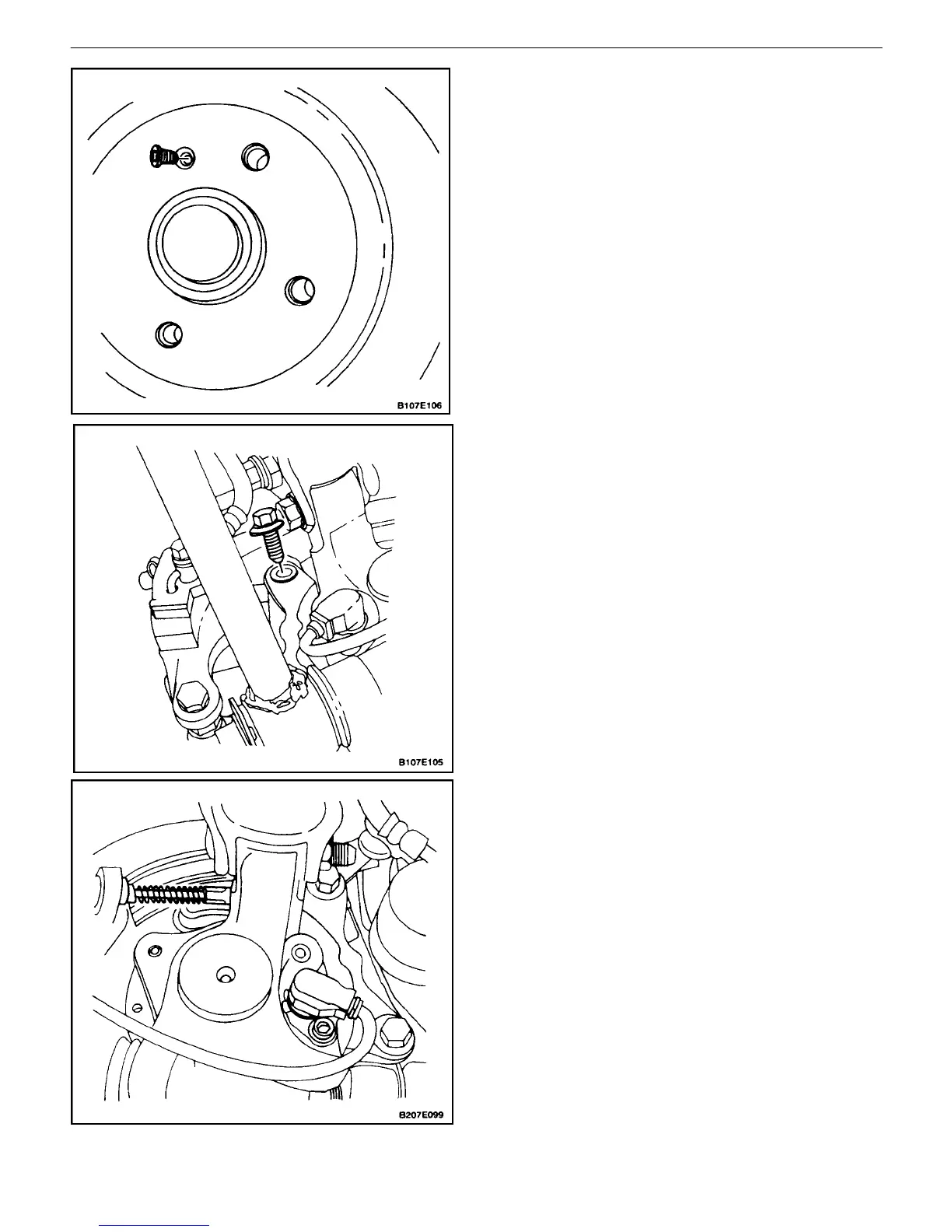

2. Install the rotor with the detent screw.
Tighten
Tighten the rotor detent screw to 4 NSm (35 lb–in).
3. Install the caliper bracket.
Tighten
Tighten the caliper bracket mounting bolts to 56 NSm
(41 lb–ft).
4. Install the caliper. Refer to”Caliper”in this section.
5. Align the match marks that were made before re-
moval, and install the rear wheels. Refer toSection
2E, Tires and Wheels.
6. Lower the vehicle.
SPLASH SHIELD/BACKPLATE AND
PARKING BRAKE LEVER
Removal Procedure
1. Remove the rotor. Refer to”Rotor”in this section.
2. Disconnect the parking brake cable from the brake
backplate operating lever.
