IMMOBILIZER ANTI–THEFT SYSTEM 9T – 7
DAEWOO V–121 BL4

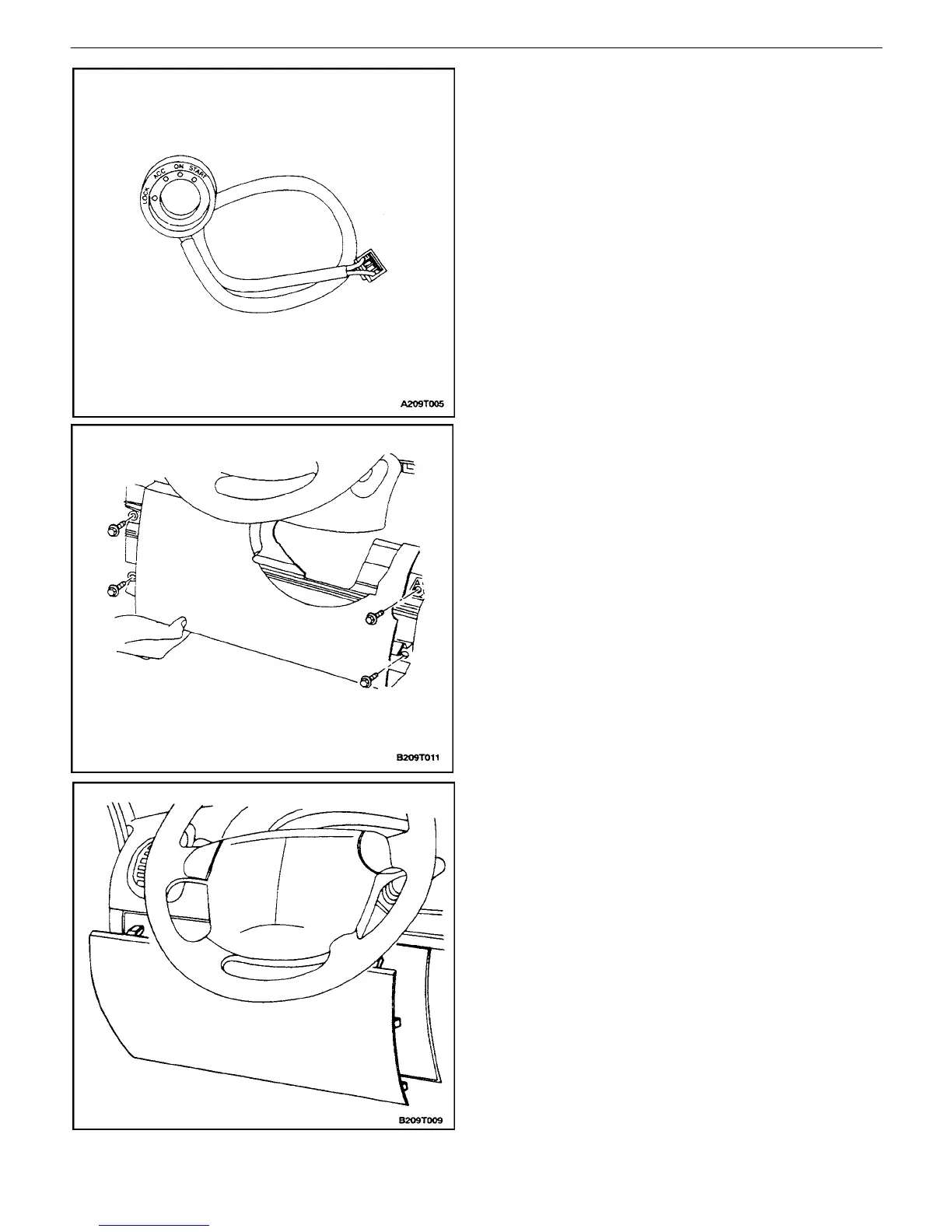

7. Pry the detection coil away from the lock cylinder. If
the detection coil will be replaced with a new one, it
does not matter if the key position trim ring is dam-
aged during removal. A new trim ring is part of the
new detection coil.
Installation Procedure
1. Install the detection coil by pressing it onto the lock
cylinder until it snaps in place.
2. Connect the two–pin connector to the immobilizer.
3. Install the steering column lower cover. Refer to
Section 6E, Steering Wheel and Column.
4. Install the knee bolster with the bolts.
Tighten
Tighten the knee bolster mounting bolts to 22 NSm (16
lb–ft)
5. Install the instrument panel side cover.
6. Install the knee bolster trim panel.
