DOHC ENGINE MECHANICAL 1C – 27
DAEWOO V–121 BL4

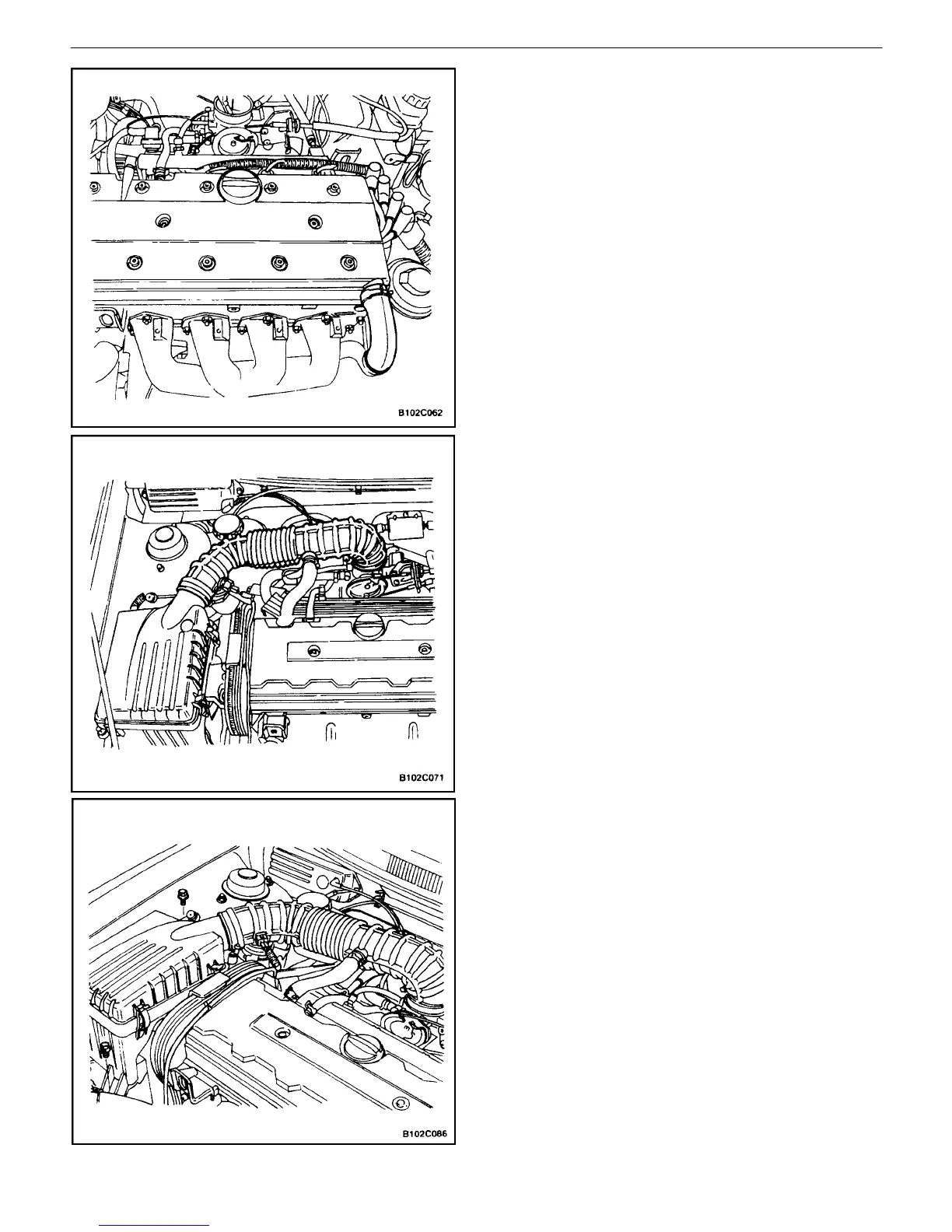

18. Connect the ignition wires to the spark plugs.
19. Install the spark plug cover.
20. Install the spark plug cover bolts.
Tighten
Tighten the spark plug cover bolts to 3 NSm (27 lb–in).
21. Connect the breather tube to the valve cover.
22. Connect the crankcase ventilation tube to the valve
cover.
23. Install the timing belt. Refer to ”Timing Belt” in this
section.
TIMING BELT CHECK AND ADJUST
Adjustment Procedure
1. Disconnect the negative battery cable.
2. Disconnect the intake air temperature sensor con-
nector.
3. Remove the air intake tube from the throttle body.
4. Remove the breather tube from the valve cover.
5. Remove the air filter housing bolts.
6. Remove the air filter housing.
7. Remove the right front wheel. Refer to Section 2E,
Tires and Wheels.
8. Remove the right front splash shield.
