AUTOMATIC TRANSAXLE DRIVE AXLE 3A – 11
DAEWOO V–121 BL4

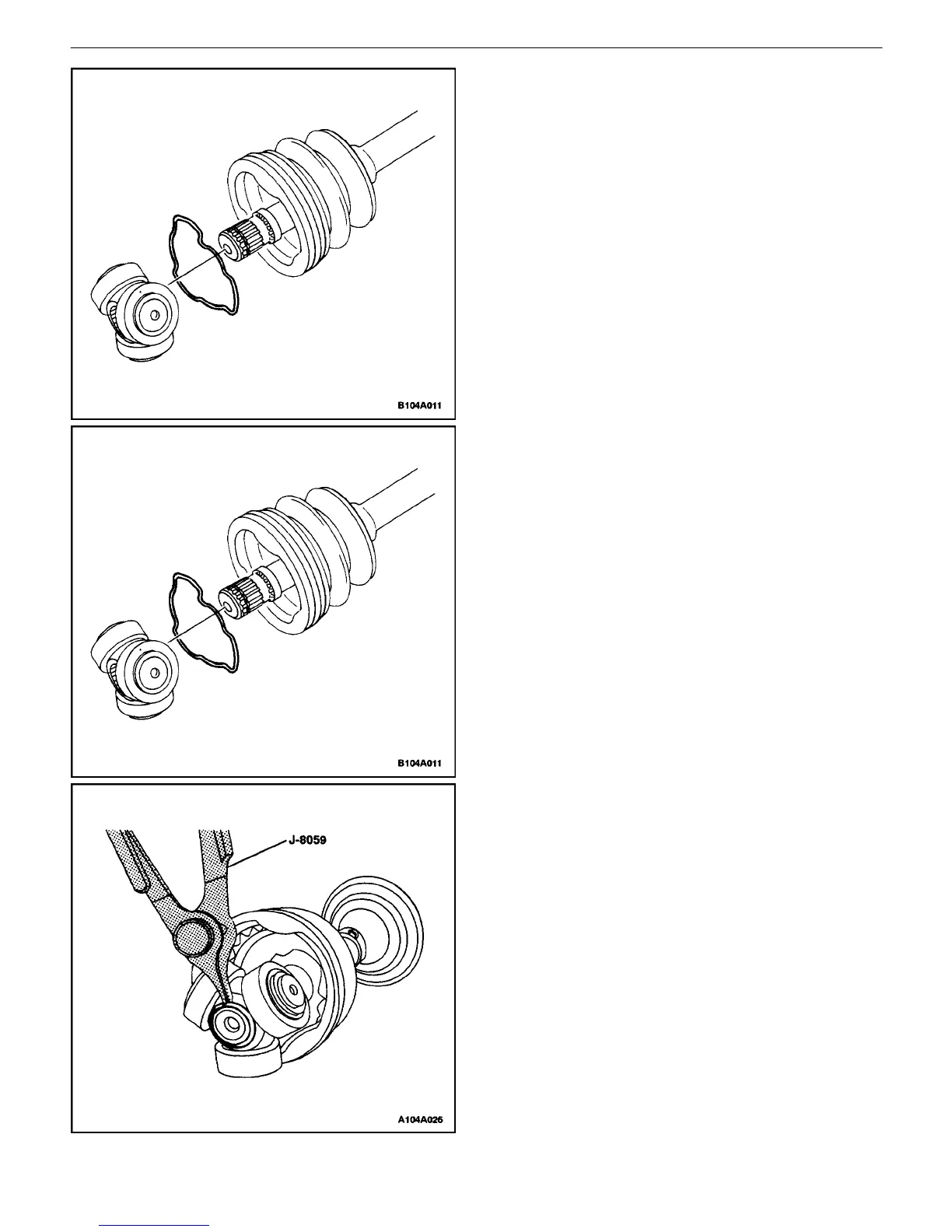

8. Remove the tripot and the tripot joint retaining ring
from the axle shaft.
9. Remove the tripot joint seal from the axle shaft.
Installation Procedure
Tools Required
J–35566 Seal Clamp Pliers
1. Install a new small seal retaining clamp onto the
seal. Do not crimp the seal retaining clamp.
2. Install the seal onto the axle shaft.
3. Install the tripot joint retaining ring and the tripot
onto the axle shaft.
4. Install the shaft retaining ring onto the axle shaft
using the snap ring pliers J–8059.
