ENGINE EXHAUST 1G
–
11
DAEWOO V
–
121 BL4
4.

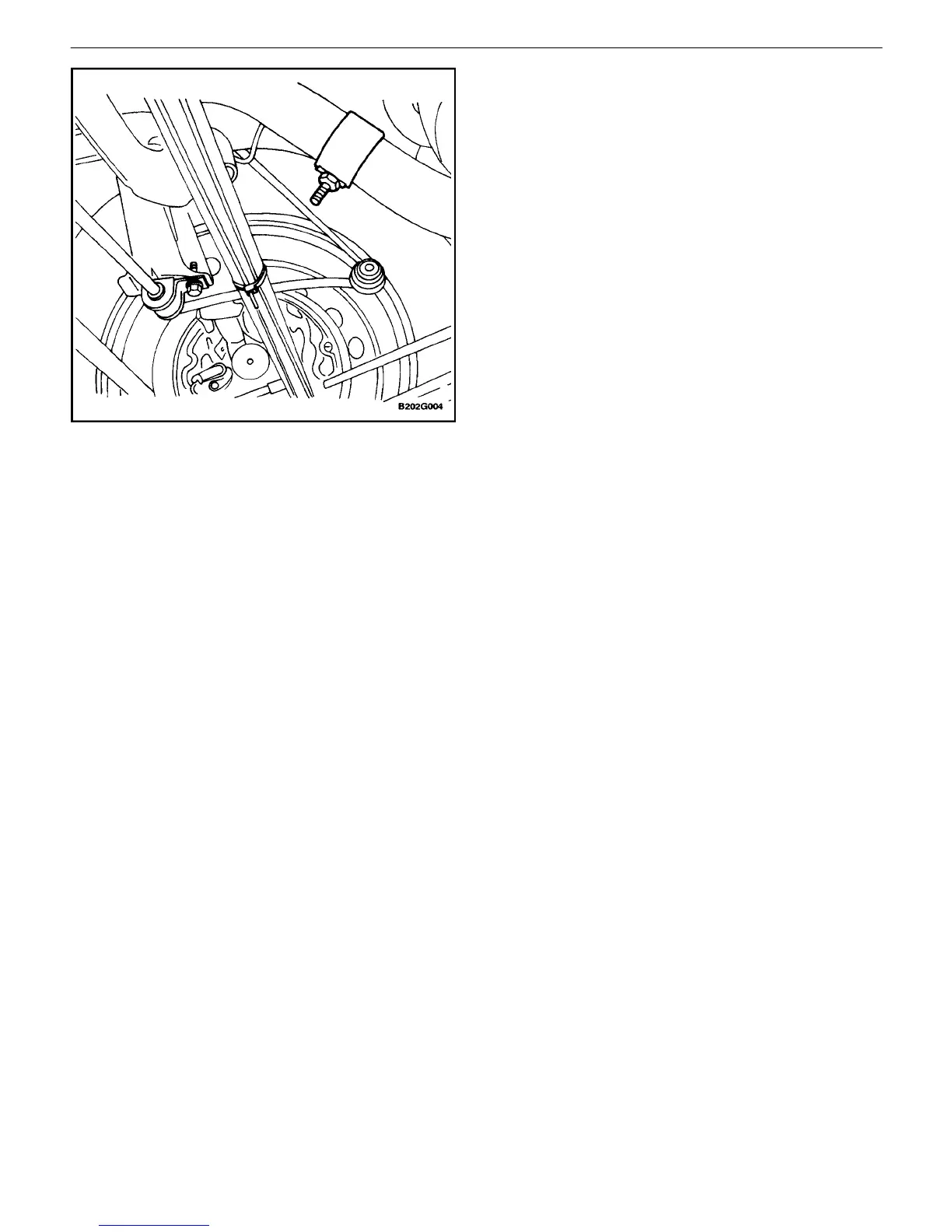

Place the rear muf
fler pipe into the front muffler
pipe.
5.
Secure the rear muf
fler pipe to the front muffler
pipe with the holding clamp, the washer
, and the
nut.
Tighten
T
ighten the front muf
fler pipe
–
to
–
rear muf
fler
pipe
holding
clamp nut to 70 N
S
m (52 lb
–
ft).
