AUTOMA
TIC

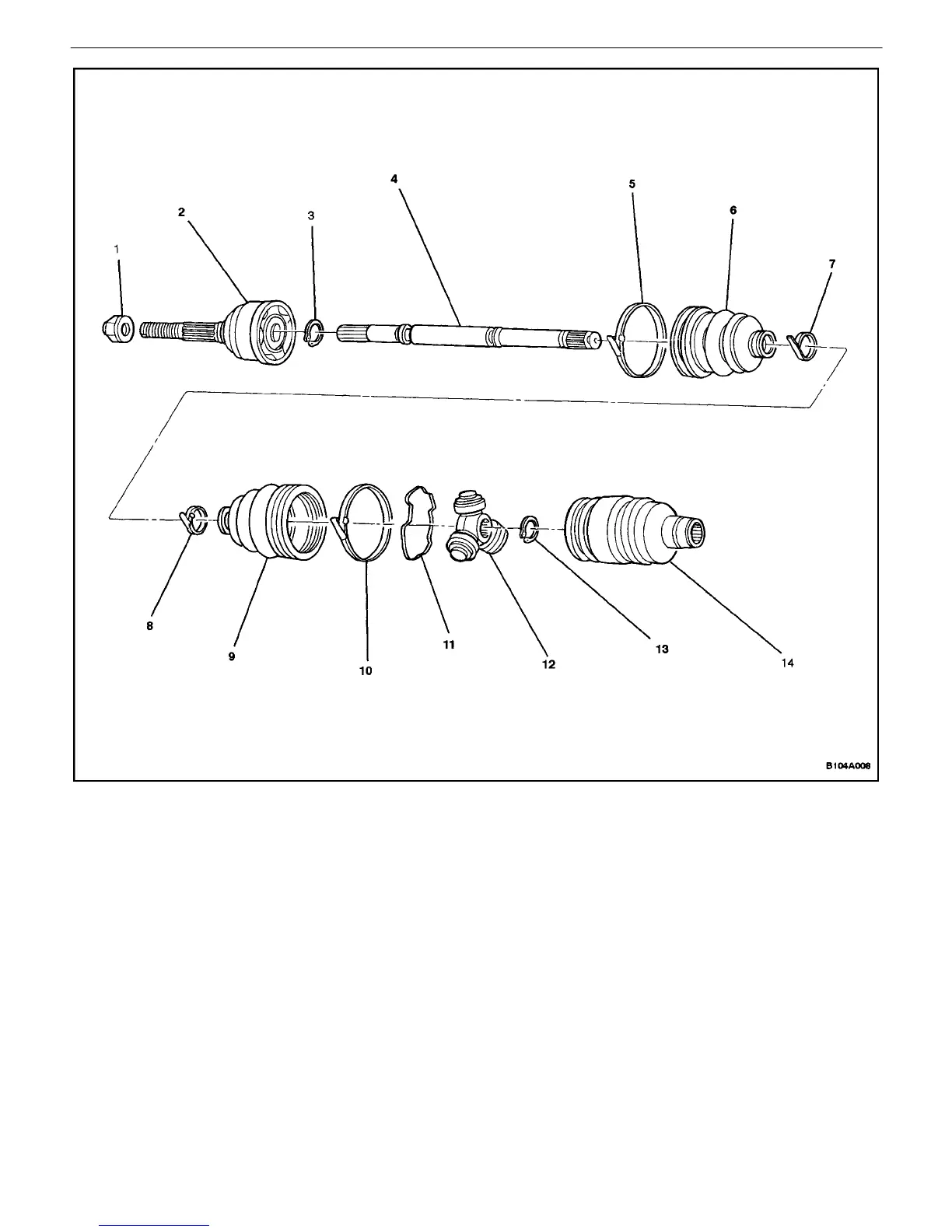

TRANSAXLE DRIVE AXLE 3A – 3
DAEWOO
V–121 BL4
1. Caulking
Nut
2. C/V
Joint
3. Snap
Ring
4.
Axle Shaft (right–hand shown, left–hand similar)
5.
Seal Retaining Clamp
6.
Drive Axle Outboard Seal
7.
Seal Retaining Clamp
8.
Seal Retaining Clamp
9.
Drive Axle Inboard Seal
10.
Seal Retaining Clamp
1
1.
T
ripot Joint Retaining Ring
12. T
ripot
Joint
13.
Shaft Retaining Ring
14. T
ripot
Housing
259
261
