4C – 6IPOWER BOOSTER
DAEWOO V–121 BL4

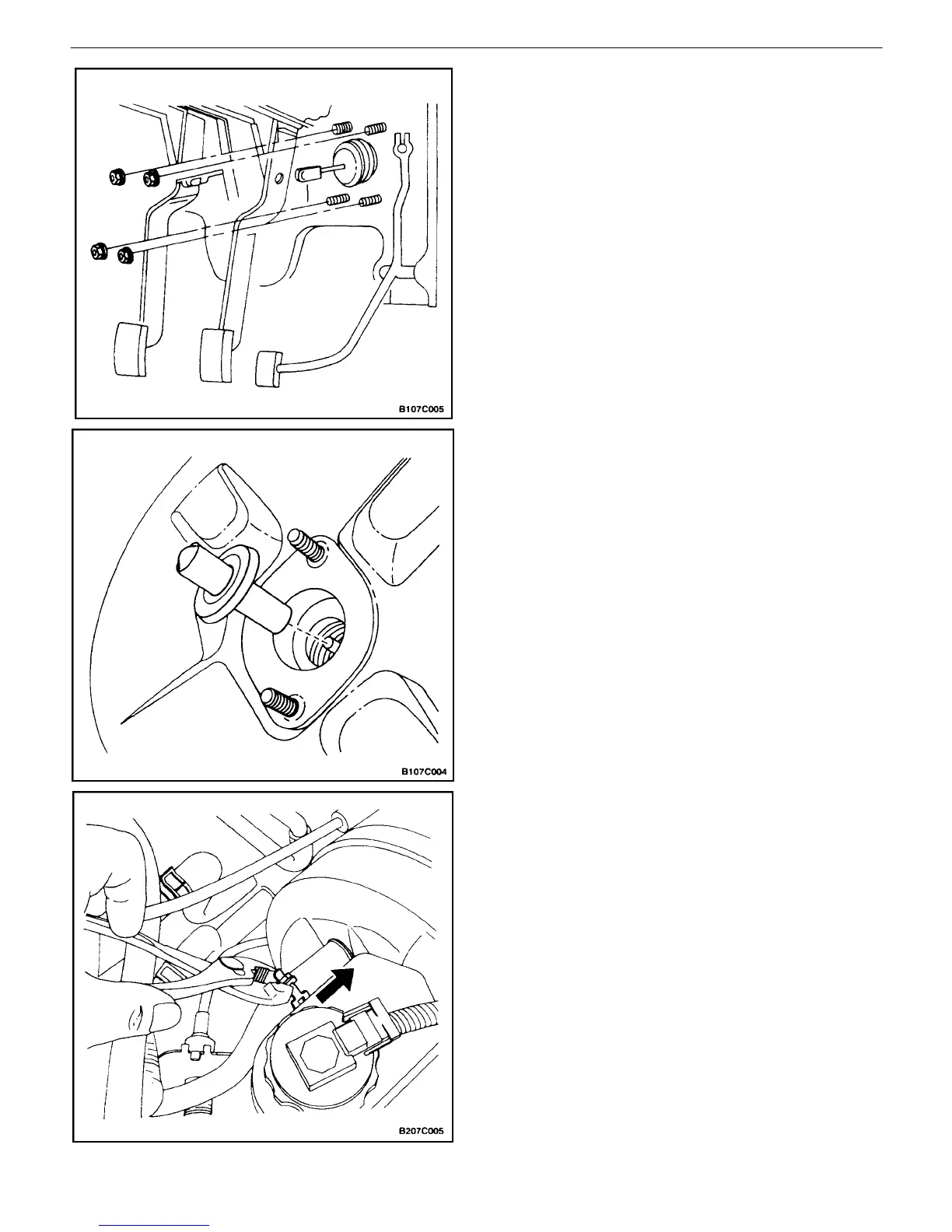

5. Install the booster and the mounting nuts to the
dash panel.
Tighten
Tighten the booster–to–dash panel nuts to 22 NSm
(16 lb–ft).
6. Insert the shaft and the rubber O–ring into the pow-
er booster.
7. Connect the master cylinder to the booster. Refer
toSection 4B, Master Cylinder.
8. Connect the brake line fittings to the hydraulic mod-
ulator, if applicable.
Tighten
Tighten the brake line fittings to 16 NSm (12 lb–ft).
9. Install the new vacuum hose to the booster. Refer
to”Vacuum Hose”in this section.
10. Install the hose clamps on the vacuum hose, and
snap the vacuum hose in the revolving clip.
11. Install the pushrod pin to the brake pedal bracket
assembly and connect the clip and the spring. Re-
fer toSection 4A, Hydraulic Brakes.
12. Install the brake stoplamp switch onto the brake
pedal bracket.
