5C0 – 18ICLUTCH
DAEWOO V–121 BL4

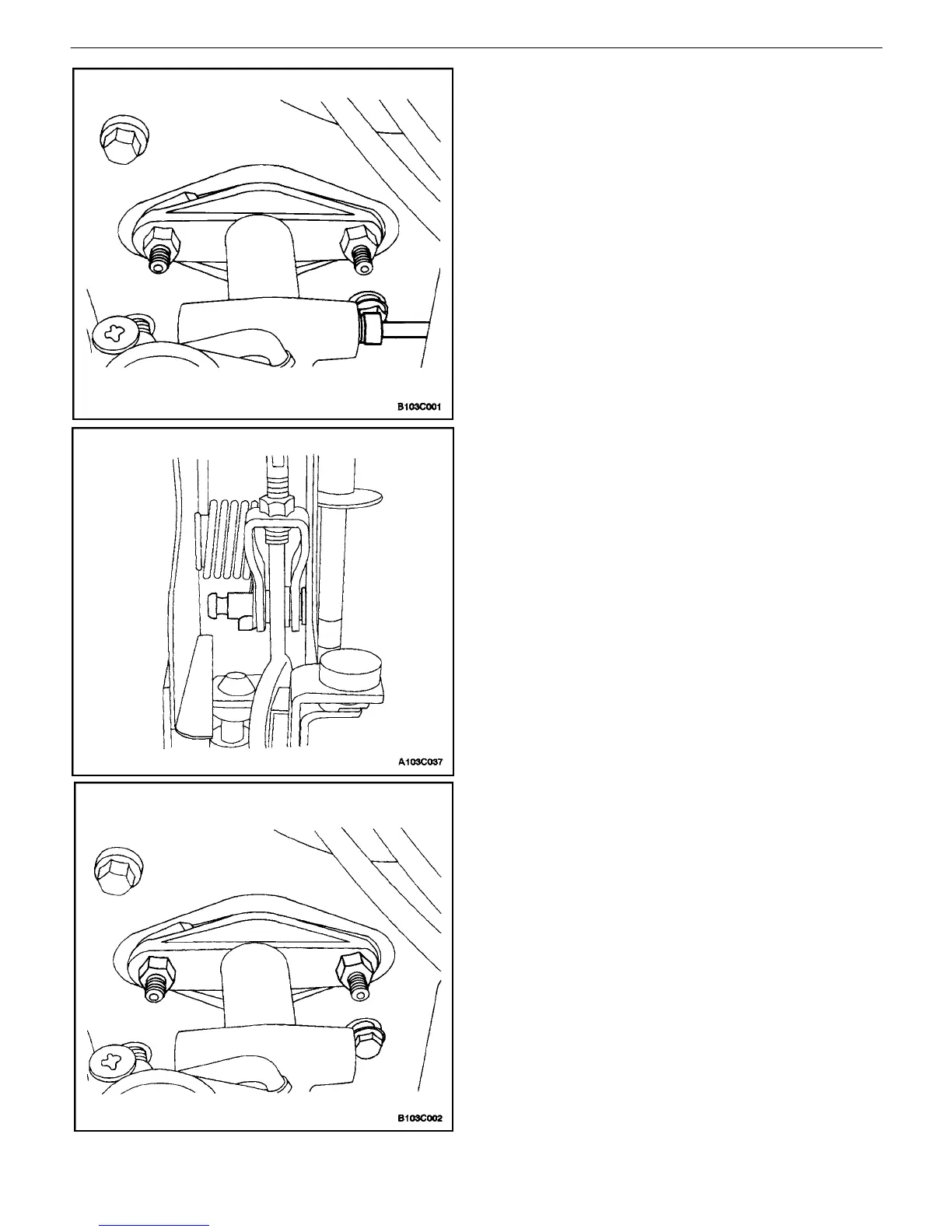

5. Disconnect the pipe connected to the master cylin-
der.
6. Remove the locking washer and the piston rod bolt
from the clutch pedal and piston rod clevis.
7. Remove the locknuts on the master cylinder brack-
et.
8. Remove the master cylinder in the direction of the
engine compartment.
